Home > Lights & Lighting > LED Interior Lighting > LED Tube > Hot-sale 2835 Single Pin Tube Neon 96inch

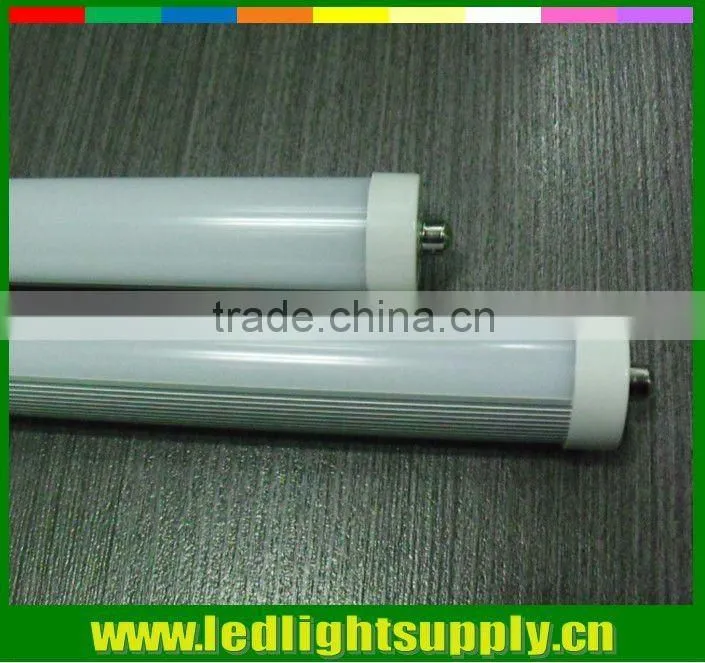

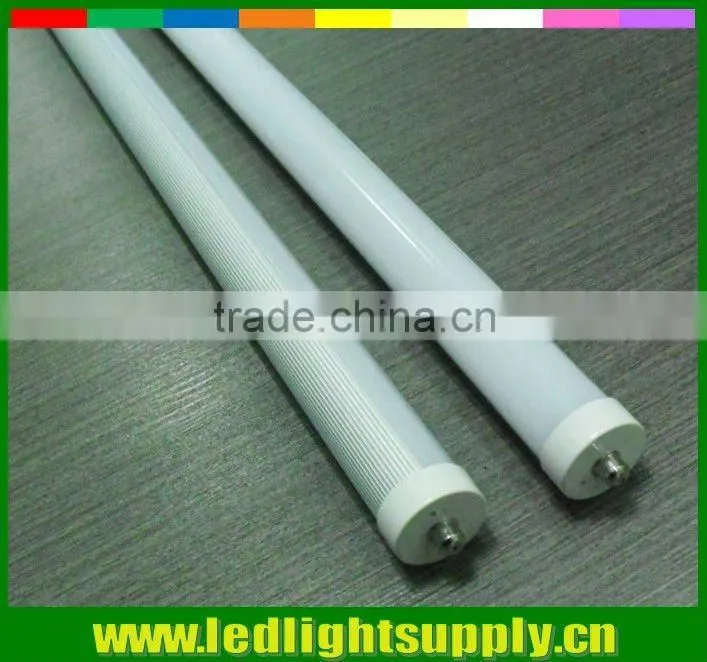

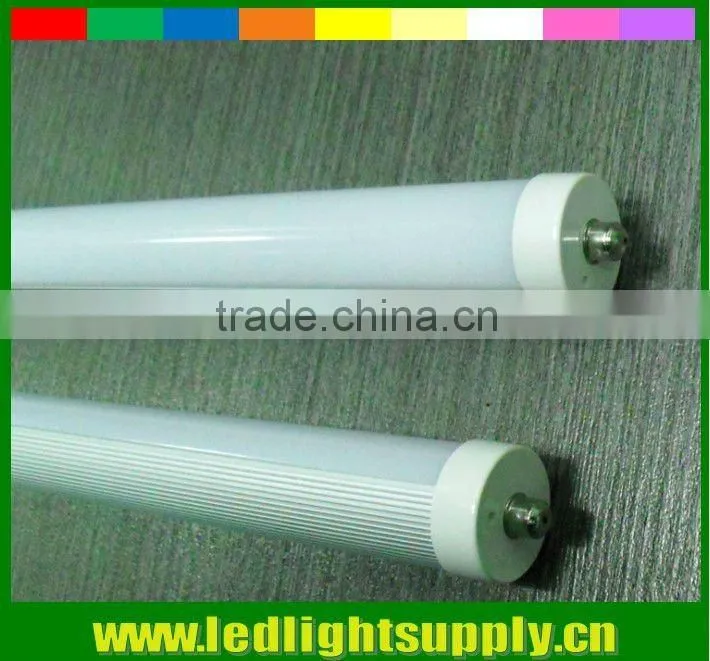

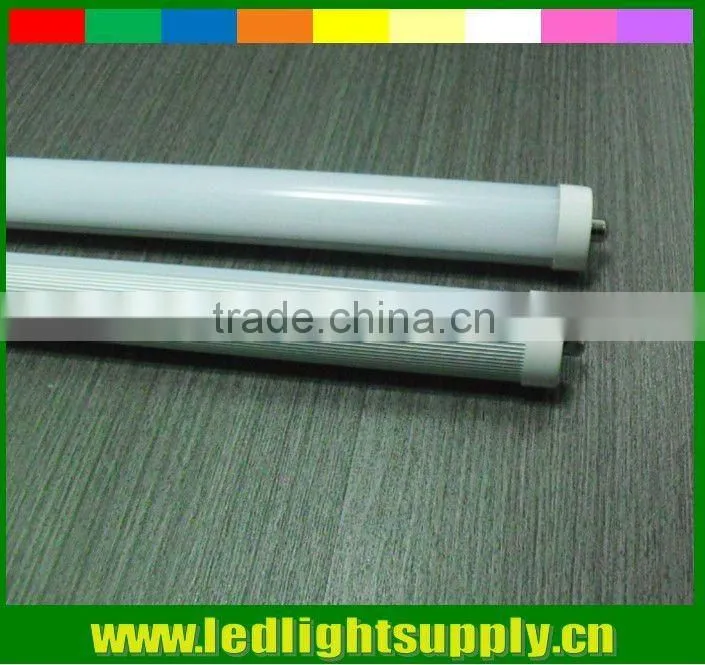

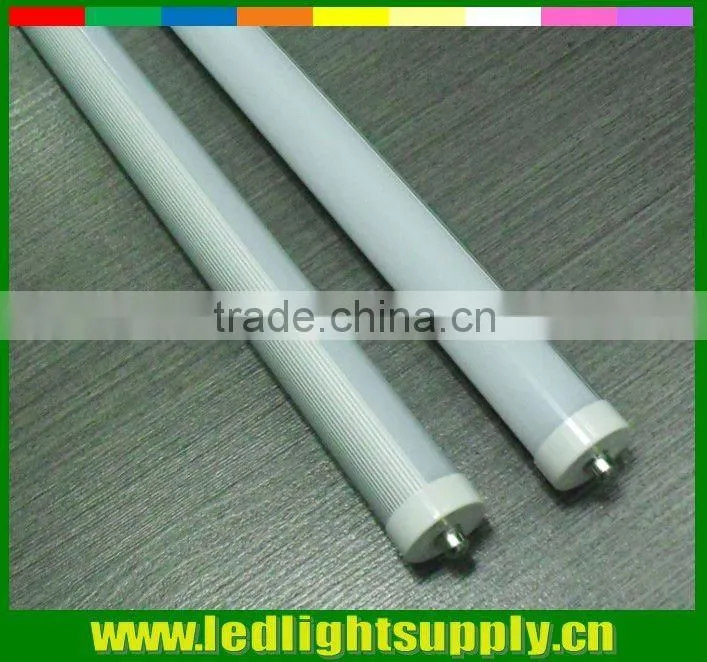

Hot-sale 2835 Single Pin Tube Neon 96inch

Name: Hot-sale 2835 Single Pin Tube Neon 96inch
Brand: topsung lighting
SKU: 119993391
Availability: InStock

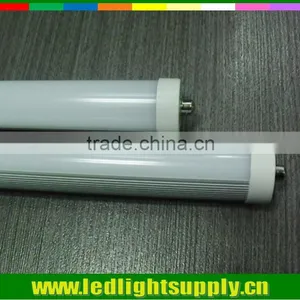

Hot-sale 2835 Single Pin Tube Neon 96inch thumbnail-1

Hot-sale 2835 Single Pin Tube Neon 96inch photo-1

US$ 20 - 30 MOQ: 25 Pieces

Key Specifications

Get Latest Price

LED Light Source:

3528SMD

Warranty(Years):

Input Voltage(V):

100-290VAC

Contact Supplier Request Quote Chat Now

Shenzhen Topsung Lighting Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source 3528SMD

Warranty(Years) 3

Input Voltage(V) 100-290VAC

Lamp Power(W) 36

Lamp Luminous Flux(lm) 2500

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Pure White

Working Temperature(℃) -30, 60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP44

Certification EMC, LVD, PSE

Place of Origin Guangdong, China

Brand Name topsung lighting

Model Number T8

Specifications

Hot-sale 2835 single pin tube neon 96inch
Replaces Standard T8/T12 Single-Pin Fa8 Fluorescent Tubes

led t8 single pin tube 96 inch

FEATURE & SPECIFICATION

Feature of 2835SMD tube:

1) Large Heat Sink: 2-3 times bigger heat sink than smd3528/smd3014, excellent heat dissipation structure

design which reduces light decay and makes the lifespan longer.

2) Large Light Emitting Surface: can improve the light-extraction efficiency to 90%.

3) Ultra-thin structure: will solve the long-standing light spot problem of smd3528 and smd3014.

4) High luminous efficiency: the luminous efficiency can be up to 90-100LM/W.

5) Super stability: low light decay material, mature technology and production process.

6) Low cost performance: can save 20% cost to achieve the same lumen flux.

7) Color temperature: can be lower to 2000K, up to 105000K.

Advantage of 2835SMD

Generally speaking, SMD 2835 design is newer and more advanced than 3014than 3528. Because 2835 has more effective thermal dissipation system, specifically, a larger heat sink than 3014 on the back, and 3528 has no back heat sink at all, therefore 2835 is able to take higher current and generates more luminous flux.

The form below is the common spec of these LED solutions in these days. The data is based on June, 2013.

96inch (8feet) Single pin Dimension:

Specification of Topsung Single Pin LED Tube

Total Power: 40Watt

Dimension: 26mm x 2400mm

LED Type: 2835SMD

LED QTY: 192pcs

Lumen :3850lm
Input voltage: 100-280VAC
Main Temperature: 2700-7000K

RA index: >80

Packing Details: 245x25x25cm

CE.ROHS Approval

ACCESSORIES & PACKING

Packing:

ITEM	QTY PER CARTON	CARTON DIMENSION	CARTON GROSS WEIGHT
30CM	60	752525 cm	8.5KG
60CM	30	752525 cm	8.5KG
90CM	30	1052525 cm	10.5KG
120CM	30	1352525 cm	12.5KG
150CM	30	1652525 cm	15.2KG
180CM	30	2452525 cm	30.2KG

Remark: generally the shipping cost will based on Volumetric weight because the carton size is big. Such as 120cm tube = 135x25x25/5000= 17kg~18kg depends on actual measure by different Express Companies.

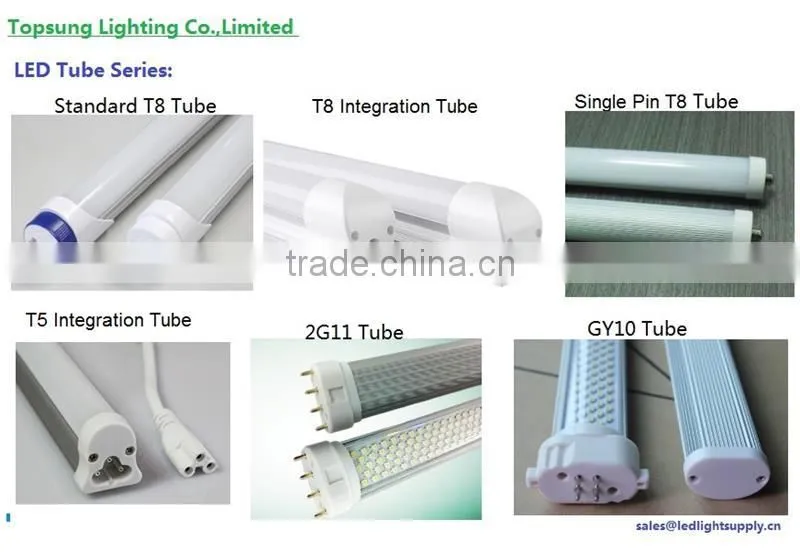

More Products of Topsung LED Tubes:

PAYMENT&SHIPMENT&WARRANTY

CERTIFICATE

Most of our Products has passed CE,ROHS, FCC, PSE, certificate

FACTORY & CONTACT INFO

Shenzhen Topsung Lighting Co.,Limitedwith 5 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!

Tel: 86-15994785513 Mail: sales (at) ledlightsupply (dot) cn Skype: topsungled

Last Update Time:2014-11-27
