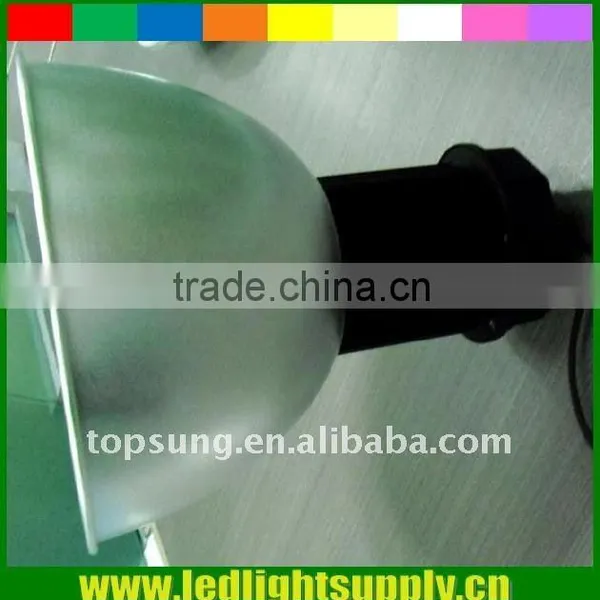

120W LED Lithonia High Bay With Meanwell Power Suppy

120W LED Lithonia High Bay With Meanwell Power Suppy thumbnail-1
120W LED Lithonia High Bay With Meanwell Power Suppy photo-1
US$ 350 - 400 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Topsung
Place of Origin:
Guangdong, China
Model Number:
TP-HB415-120w
Contact Supplier Request Quote Chat Now
Shenzhen Topsung Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Topsung
Place of Origin Guangdong, China
Model Number TP-HB415-120w

Specifications

LED lithonia high bay LED Power:120w LED high bay
Luminous Efficiency):60~80lm/w
CE,ROHS apprval
300-400W HID replacement

LED lithonia high bay
LED factory light LED low bay LED stadium light
LED Power:120w  LED high bay
Luminous Efficiency):60~80lm/w
Initial luminous Flux 9400lm





Technic Parameter:





Model LED Power Work Voltage Power Factor(PF) Luminous Efficiency) Initial luminous Flux
TP-HB415-30W 30W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 2400lm
TP-HB415-40W 40W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 3200lm
TP-HB415-50W 50W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 4000lm
TP-HB415-60W 60W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 4800lm
TP-HB415-70W 70W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 5600lm
TP-HB415-100W 100W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 8000lm
TP-HB415-120W 120W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W  9400lm
TP-HB415-150W 150W AC85V265V / frequency 50-60Hz  DC12V 24V 0.9 60-80lm/W 11000lm

Model Efficiency of  the Power Supply Beam Angle Color Rendering Index Color Temperature Life Span Net Weight(kg)
TP-HB415-30W 90% 45° Ra80 2700K~7000K 50000Hrs 3.9
TP-HB415-40W 90% 45° Ra80 2700K7000K 50000Hrs 3.9
TP-HB415-50W 90% 45° Ra80 2700K~7000K 50000Hrs 3.9
TP-HB415-60W 90% 45° Ra80 2700K~7000K 50000Hrs 3.9
TP-HB415-70W 90% 45° Ra80 2700K~7000K 50000Hrs 3.9
TP-HB415-100W 90% 45°  Ra80 2700K~7000K 50000Hrs 5
TP-HB415-120W 90% 45° Ra80 2700K~7000K 50000Hrs 5
TP-HB415-150W 90% 45° Ra80 2700K~7000K 50000Hrs 5

Features:

  • Use single powerful LED(30W100W)as the light source , using our proprietary LED encapsulation.
  • Utilizes the special design of multichip single module. Imported high brightness semiconductor chips.
  • High heat conductivity, low luminous decay, pure light color and no ghosting.
  • Integrative design for heat sink and housing; The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation. This ensures 50,000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 10 years.
  • The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising, waterproofing, and dust prevention.
  • Obvious power-saving efficiency. Use powerful LED light source and high efficiency imported LED driver. Compare with sodium lights, it can save electricity around 60%.
  • Environment friendly. Do not have lead, hydrargyrum and any other contamination. No pollution to the air.
  • Can present the original color of the objects, it has varies of colors to choose which can meet the requirements in different environments. It eliminates the dullness of environments caused by the lower color temperature, like sodium lamp, or higher color temperature, like mercury lamp. This could satisfy the feeling of those who appreciate the lighting.
  • The industrial light is controlled by constant current and constant voltage. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast. It can also eliminate the glare and fatigue.
  • Can be a good decoration light. Its surface is specially treated. The housing can be with different kinds of colors.
  • Easier to be installed and to be unloaded; Can be used in different places.



120W LED lithonia high bay with Meanwell Power suppy120W LED lithonia high bay with Meanwell Power suppy120W LED lithonia high bay with Meanwell Power suppy

HB515 beam angle: 110degree HB415 beam angle: 45 degree Power: 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 200W Hot-sale Model:100W** Brand: Topsung Lighting ** Last Update Time:2014-11-27
