Commodity: Trade assurance professional top view led neon tube factory
Specification of Top View LED Neon Flex
| Topsung Professional Top View LED Neon Flex | |
| Volt. | 220V/110V |
| Colors | red, yellow, blue, green, white, warm white, pink |
| Jacket | Milky white jacketed / Color jacketed |
| Light source | 2835 SMD LED |
| LED QTY | 108 LED / M |
| Lumen | >600LM / M |
| Power | 10 W/M |
| Cutting length | 1M/0.5M |
| Dimension | 14 mm x 26 mm |
| Beam angle | 180 ° |
| Load length | 50M |
| Material | PVC material, ultraviolet-proof |
| Work condition | Indoor or outdoor use ; - 20°~ +60°C; |
| IP grade | Waterproof IP67 |
| Package | 50m /carton ; carton size: 34*34*34cm |
| Warranty | 2 years |
| Lifetime | 50,000 hours |

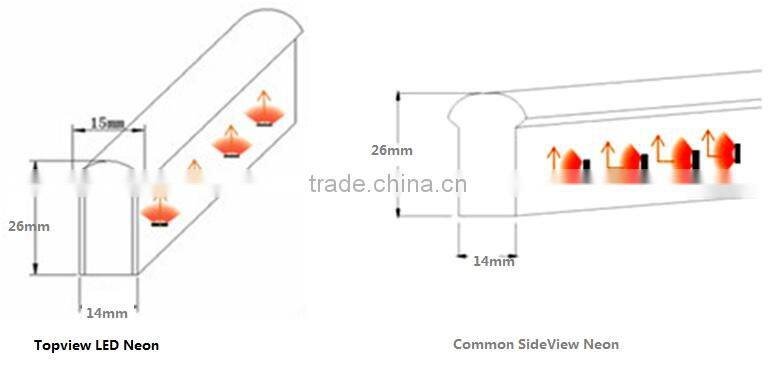

Advantage of Top View LED Neon Flex
| Upward View Neon | VS | Side View Neon |
| SMD LEDs @ Sideward View | ||
| SMD LEDs @ Upward View => Brighter | ||
| SMD LEDs (on Flexible PCB ) placed at the base , light output is Upward, thus enhancing the actual and perceived brightness. | Brightness | SMD LEDs (on Flexible PCB ) placed on one side, the light output is being weakened during light transmission. |
| Waterproof IP68 | IP grade | Waterproof IP65 |
| SMD LEDs (on Flexible PCB ) placed at the base, so it allows led neon flex could be bended from both directions very flexibly, not easy to make connection joints damaged. | Flexibility | SMD LEDs (on Flexible PCB ) placed on one side, so it doesn't allow LED neon flex to be bended on the side where LEDs are placed, thus more likely to make connection joints broken. |
| With special design circuit connection, Max length in one continous run is about 20mwithout volt drop out | Load length | Max length is about 10m in one continous run, otherwise it will cause voltage drop out |
| One SMD LED's failure won't influence the whole unit's normal working without defective dot, more stable | Stability | One SMD LED's failure will cause the whole unit's malfunction. |
Features of led neon tube
*Consistent and stringent wavelength control standards +/_3nm
*Ultra-bright & Low Light attenuation LEDs
*Milky white diffuser
*White PVC base edge to increase luminosity
*100% unbreakable
*100% waterproof
*Low heat
*Low maintenance coat
*1/10 the energy consumption of glass neon
*Fully enclosed electronics: no exposed glass tubing as with neon
*Environmental protection
*Work temperature:-20°C~60°C
50meter per carton
Gross weight: 25kg
Accessories of LED Neon Rope
Shenzhen Topsung Lighting Co.,Limited with 8 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD. Its main procuts include: LED decoration lights (Neon, Rope, Strips,ect) & Indoor LED lights (tube, bulb, downlight, panel light,ect). Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
