hotel bathroom lock, bathroom lock, door lock
1. hotel RFID lock Data sheet
| No. | Description | Technical Parameters |
| 1 | Power: | 6V AA alkaline batteries, |
| 2 | Static Electric Current: | Static Load<10Ua,Working Load: 100Ma-150Ma |
| 3 | Working Electric Current: | 100-300mA |
| 4 | Card type | Mifare card or temic card |
| 5 | Battery Life: | 18 months’ duration |
| 6 | Lock operation records | 240pcs |
| 7 | Insert Reliability: | No mistake even inserted continuously 2000 times |
| 8 | Insert Guarantee: | Still work well after inserting any illegal card |
| 9 | Low Voltage Warning: | low Battery Voltage warning. (Lower than 3.5 V) |

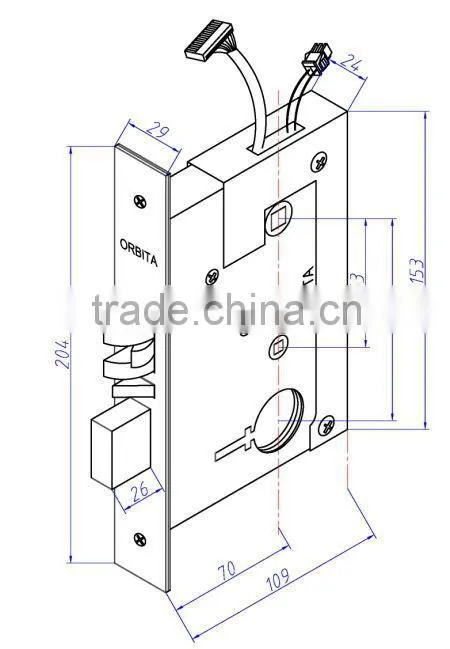

| 10 | mortise | ANSI Standard mortise/Euro standard |
| 11 | Humidity | 20%-90% |
| 12 | Working tempreture | -50°C-80°C |
| 13 | Suitable door | Wooden door, fire-proof door, metal door and so on. |
2. How ORBITA hotel locking system works?
Our hotel locking system consists of following:
- PC (usually located on the reception desk of hotel lobby)

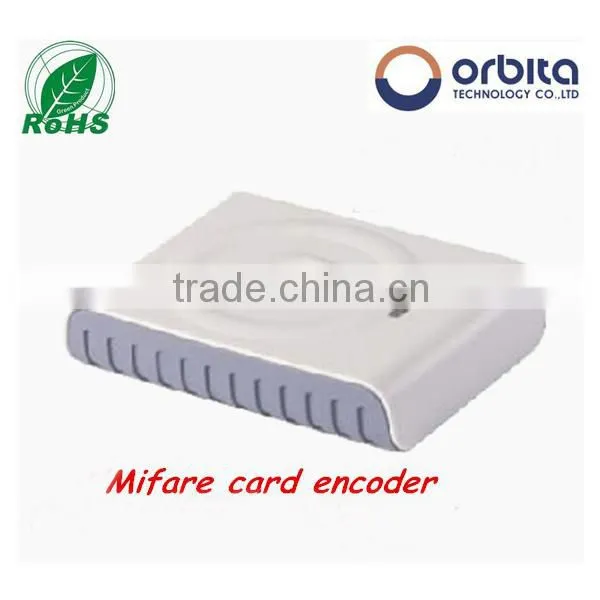

- Hotel lock management software+Encoder (How the cards are issued)
- Hotel card lock (Installed on the hotel room door)
- Cards (The keycard to open doors)

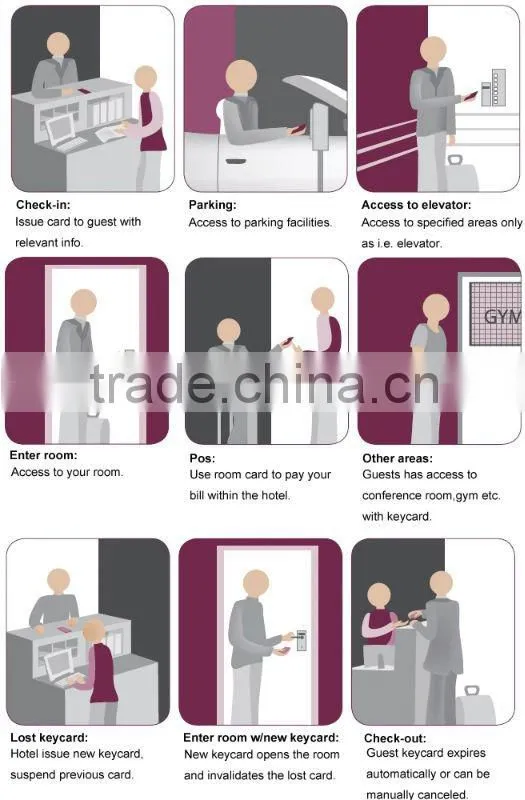

3. Card function:
-Guest card:Reception complete program Guest card by give a begin and expiry date for a room(rooms).Guest access room by -read this card on lock
-Master card:Hold by housekeeping to access to all rooms of hotels
-Floor card:Hold by clean staff to enter the rooms in one floor.
-Building card:Hold by manager to enter the rooms in one building
-Passage card:Once this card been read on one door,this door could be acceess by without reading keycard
-Emergency card: Enter the all rooms
4. Error Indications and Solutions
Q:Red light flashing two times with two “beeps”, it means the card belongs to other doors. Or when using the staff maintenance card-→opening times used up.
A:Use the right guest card to open door, or issue new maintenance card.
Q:Red light flashing three times with three “beeps”, it means the card time is not match with the lock time.
A:Guest card expire-issue new guest card, or update lock time.
Q:Red light flashing four times with four “beeps”, it means the lock hasn’t been authorized.
A:Issue a Function Card to authorize lock.
Q: Red light flashing five times with five “beeps”, it means the card has been suspended.
A: If former card suspended, this card can’t be used .Use new card.
Q: Red light flashing six times with six “beeps”, it means the lock is deadbolt working.
A: When lock deadbolt, only guest card and master can open door.
Q: Red light flashing seven times with seven “beeps”, it means the lock was been blocked by the block card.
A: In this case, only master card can open the lock. Or you can show block card again to lock to release it
Q: Red light flashing eight times with eight “beeps”, it means the lock was authorized by function card from another system.
A: If you don’t know the code, you need to reauthorize the lock mandatorily.
