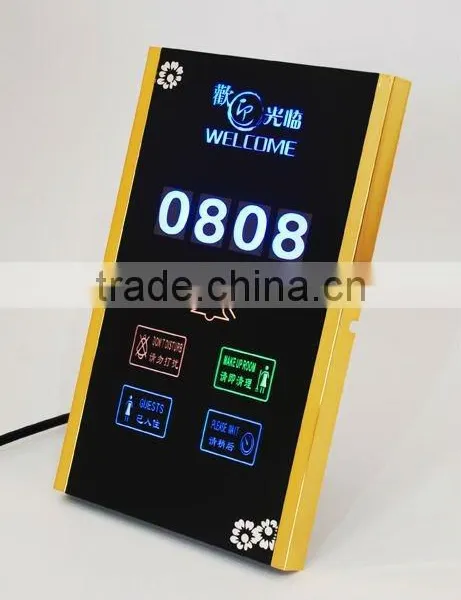

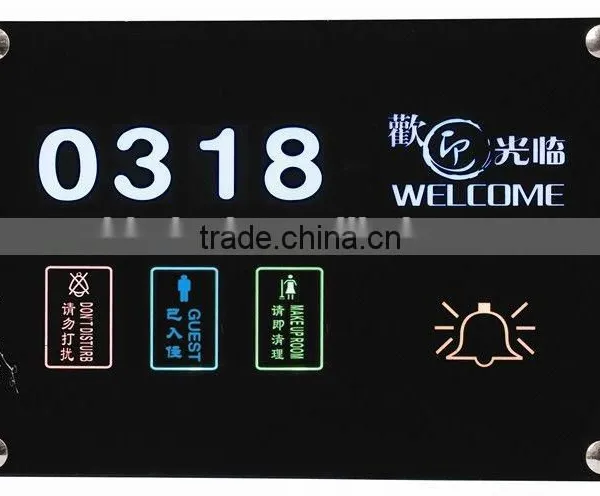

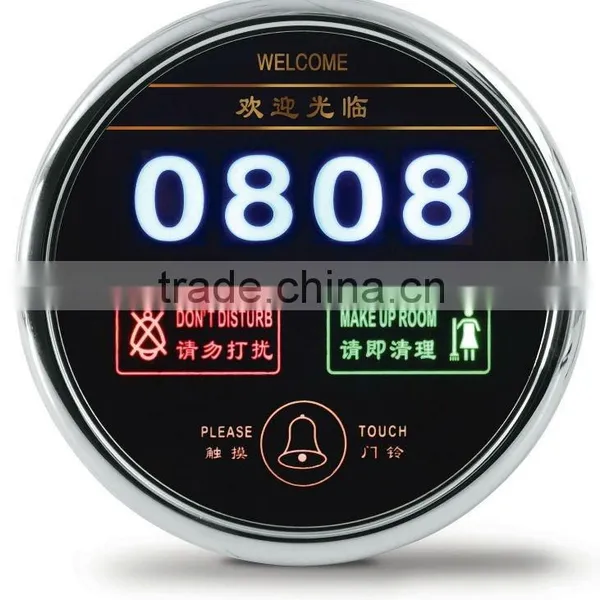

Orbita hotel door bell switch can show room number

Orbita hotel door bell switch can show room number

1: Size:86*86mm

2: Suit for 110V/220V,12V/5V.

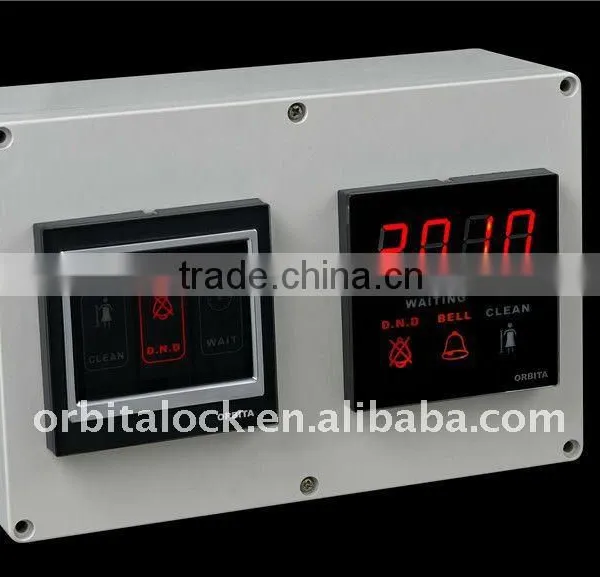

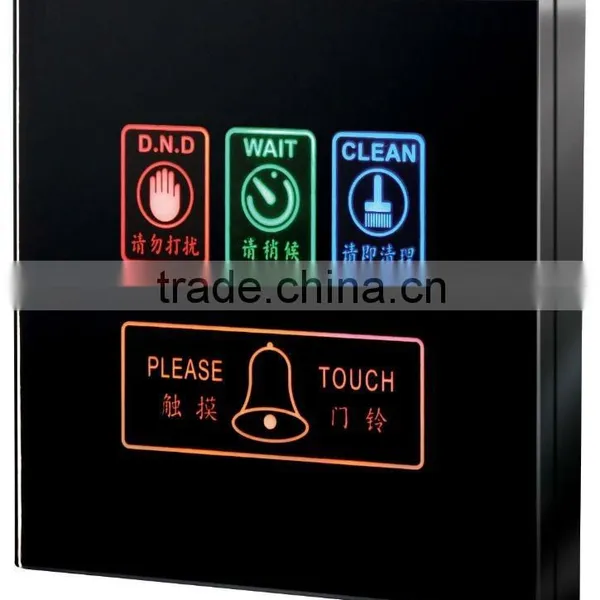

3: It can show:Waiting,D.N.D,Clean.

4: Used inside the room.

5: Packing:100pcs/carton.Carton size:47*24*38CM.

Unique design,it is very popular in hotels.

Operation& use
1. In normal conditions, press the button "doorbell" of touch screen to open the bell, and the guests will know there are visitors at the door when hear the euphonious ring.
2. The guests press the button” do not disturb" switch, touch screen's "do not disturb " sign backlight was lit. the display outdoor prompts "please do not bother," At the time being, the doorbell button does not work, the doorbell outside the wall does not work either.
3. The guests press the button” please clean" switch, touch screen's "Please clear the" sign backlight was lit, the display outside prompt "need to be cleaned up"; when the guests left the room to take the door card away, the display outside "Please clean-up" is still lit, so that room attendants can clearly aware of the request to need to be cleaned up.
4. When the hotel owner inconvenient to meet the visitors, they can press the "Please wait" switch, or press "Please wait" button, the sign "Please wait" of touch screen backlight flashing, suggesting that the guests outside “Please wait a moment” and doorbell button failure, 2 minutes later, "Please wait," restore a dark backlight automatically.

Functions &features
1. LED backlit touch-design
LED backlit touch-key achieve switch control. The standard pattern, clear and readily understood, and the light can be directed so the guests could control under any of lights, in line with international hotel trends which is convenient for identification at night..
2. EEPROM design keeps the parameters forever.
In the particular case of power-off, EEPROM can be kept set parameters of the hotel.
3. It's suitable for wide range of doorbell.
It's suitable for the doorbell that needs the trigger-off the DC or AC, and also applicable to edge-triggered music doorbell. There is a unique pronunciation main part, transparent sound quality, comfortable and pleasant.
4. A variety configuration options for intelligent doorbell system.
According to the hotel requirement, you can choose wired doorbell system, wireless doorbell system,and can also installed the “please wait “touch control panel indoor or used” please wait “wane together.

Standard &Certification
The product is based on the International requirements GB16915.2-2003 to design and production, and its performance indicators are all in line with CE, FCC certification.

Technical Parameters
Operating voltage: 50/60Hz 100-240VAC
Screw fixed center distance: 60mm (application of 86 bottom case)
Operating temperature: -10 °C - 60 °C  Operating Humidity: 0-95%
Service Life: press touch-screen button 1 million times, relay contacts 100,000 times.
Power consumption: less than 2W  Transport,
storage temperature range: -20 °C - 80 °C
Overall dimensions: W86mm * H86mm * D35mm
Shell color:  A8 series bright silver color frame + stainless steel color drawing surface shell
