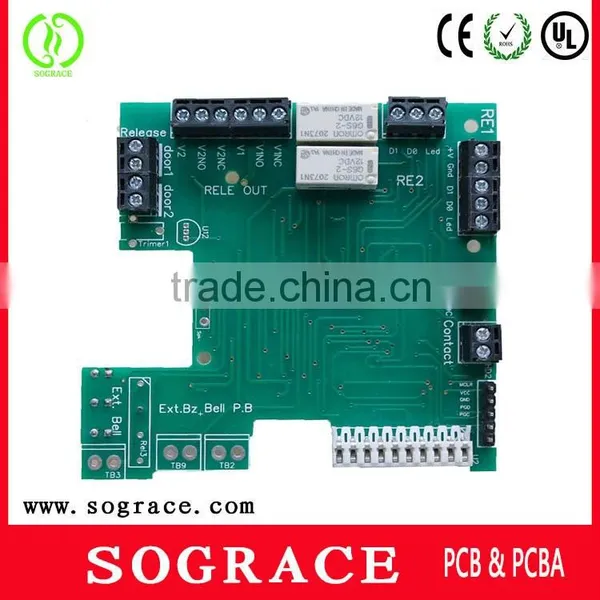

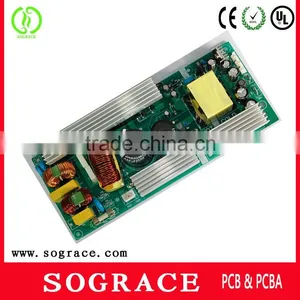

Help CenterOEM Air Conditioner Pcb Controller With Gerber File Pcb Assembly Design
Related Products
-
Smt Pcb Board /electronic PCB/PCB Assembly SupplierUS$ 0.3 - 0.5MOQ: 5 Pieces -
RoHS UL Quick Turn Circuit Board Prototype Smt Pcb AssemblyUS$ 0.30 - 0.30MOQ: 1 Piece
-
Electronic PCB/PCB Assembly and Pcb Prototype by China SupplierUS$ 0.1 - 0.3MOQ: 5 Pieces
-
Electronic Pcba Board Assembly With Components ManufacturerUS$ 0.1 - 0.3MOQ: 5 Pieces
-
Reasonable Customized Printed Circuit Board/pcb Assembly ManufactureUS$ 0.1 - 0.3MOQ: 5 Pieces
1. PCBA manufacture
2.Competitive pricing and good quality
3.Sevice in components purchase
4.From prototype to mass production
pcb manufacturing companies from PCB assembly to final case assembly:
1.Chip-on-board (COB)
2.Surface-mount technology (SMT)
3.Ball-grid array (BGA)
4.Through-hole
|
ITEM |
Our PCB Technical capabilities |
1 |
Layers |
2-20 layers |
2 |
Max. Board size |
2000×610mm |
3 |
Min. board Thickness |
2-layer 0.15mm |
4-layer 0.38mm | ||
6-layer 0.55mm | ||
8-layer 0.80mm | ||
10-layer 1.0mm | ||
4 |
Min. line Width/Space |
0.075mm(3mil) |
5 |
Max. Copper thickness |
6OZ |
6 |
Min. S/M Pitch |
0.075mm(3mil) |
7 |
Min. hole size |
0.1mm(4mil) |
8 |
Hole dia. Tolerance (PTH) |
± 0.05mm(2mil) |
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
10 |
Hole position deviation |
± 0.05mm(2mil) |
11 |
Outline tolerance |
± 0.10mm(4mil) |
12 |
Twist & Bent |
0.75% |
13 |
Insulation Resistance |
>1012 ± Normal |
14 |
Electric strength |
>1.3kv/mm |
15 |
S/M abrasion |
>6H |
16 |
Thermal stress |
288℃ 20Sec |
17 |
Test Voltage |
50-300V |
18 |
Min. blind/buried via |
0.15mm (6mil) |
19 |
Surface Finished |
HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base |
The flow of OEM air conditioner pcb controller with Gerber File pcb assembly design
The FAQ of OEM air conditioner pcb controller with Gerber File pcb assembly design
1.Which type of PCBs do you expert in?
We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.
2.What is your Lead time?
Lead time is usually punctual here, usually within 3 days for PCB sample, 3-7 days for mass production. For some special situation, we can also advise customer in advance to avoid any inexpectation or loss at customer side.
3.What is your testing policy and how you controle the quality?
For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there’s many steps to PCB production, we usually do inspection after every step.
4.What is your package?
With Inner vacuum package and out carton.
5.Will you allow me to put several part number together into one panel?
Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.
6.What is your minimum order quantity?
We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.
7.Are my design files safe when I submit them to you for manufacturing?
Any customer’s file will be protected very well here in our factory and we will not let any third party know. We can sign NDA with you.
The shipping of OEM air conditioner pcb controller with Gerber File pcb assembly design
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, doubleside and multilayer pcb, also provide assembly service with 10 years experience.We have a variety of advanced production equipments, excellent engineering and technical personnels, accompany with the mature management and service system.Our pcbs meet IEC,IPC,DIN,MIN standard, behaves ISO9001 quality system ,UL and Rohs certificate. Fast lead time and competitive price with high quality are our advantages. PCB lead time is within 10days,and most can be within 7days. We also established a prototype team to develop customer’s prototype needs. prototype lead time often can be within 3days.
CHOOSE SOGRACE, CHOOSE THE BEST PCB BOARD !!!
If you have any problems, please feel free to contact me anytime ,NOW send me your INQUIRY!!
