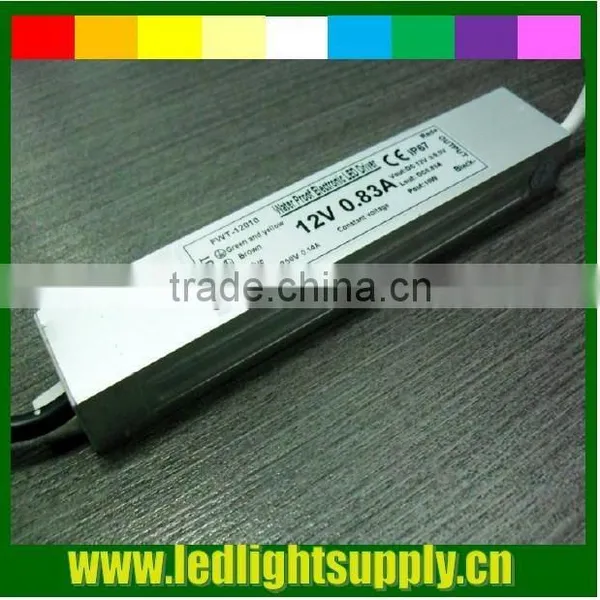

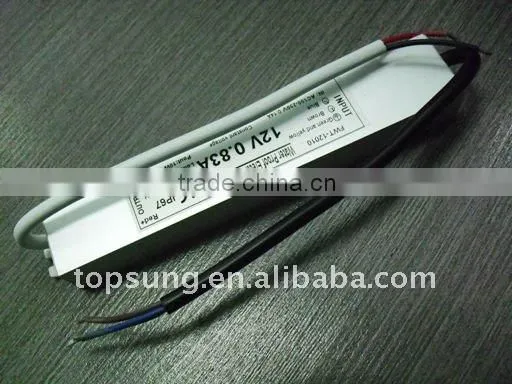

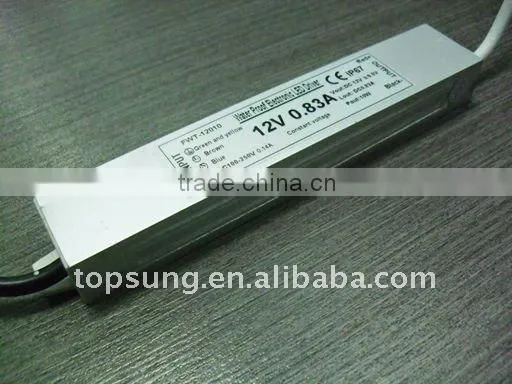

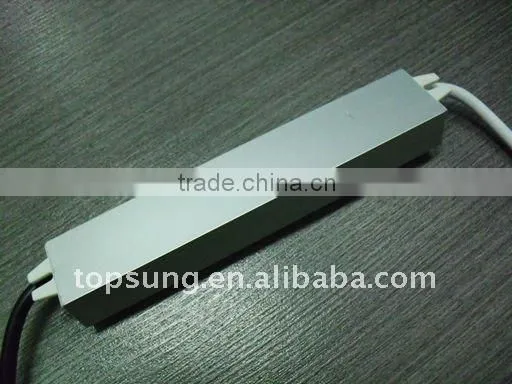

10W 12V/24V transformer driver

waterproof LED power supply
used for led strip, led neon
AC110~240V to 12V/24VDC

12V or 24/10W LED power supply - Water-Proof IP67

Output voltage: DC 12V±0.5V orDC 24V±0.5V

The sum output current:0.83A or 0.41A

Waterproof led power supply

Protections:Short circuit/Overload/Over Voltage/Over Temperature

Waterproof Protection standard:IP67

Certificate: CE(EMC, LVD), ROHS,

One year warranty

Specifications

Input voltage: AC 90-250V

Max output power:  10w

Size: 160x30x20mm

Weight: 160g
Packing: 50pcs/carton
Carton size: 34*24*19cm
Storage Temperature: -40 to 80°C

Operating Temperature: -25 to 45°C

Housing Material:Aluminum

Features:

1. High efficiency  With perfect protection circuit, the mains is of high reliability. The switching mains adopting PWM control mode is one of the best LED mains.
2. Abnormality protection function - The mains has built-in over current and short-circuits protection.  In case of shortcircuits or overload,  the product will conduct automatic protection.

Short Circuit Protection:Auto recovery

Overload Protection:20% exceed is allowing

Over-voltage Protection: smaller than 255V

Thermal Protection:80 Degree

More Picture

Other Model of Power supply:

10W/15W/20W/30W/45W/60W/100W/150W/200W
