Low Carbon Wire/ Hot Dip/Electro Galvanized Wire
- TIANJIN (CHINA)
- T/T
You May Like
Product Details
| Steel Grade | 60#,65#,45#,50#,Q195,Q235 | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 0.15-8.0 | Place of Origin | Tianjin, China | |
| Type | Galvanized | Application | Manufacturing | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Model Number | 60#,65#,45#,50#,Q195,Q235 | Brand Name | HUAYUAN |
Product Description
Specifications
Electro Galvanized Iron Wire/ Galvanized Iron Wire /Electro Galvanized Wire
1) Material: low, medium or high carbon steel
Galvanized Wire
Features:
1) Material: low, medium or high carbon steel
2) Finish: hot dipped galvanized, electro galvanized
Packing:
0.5kg to 800kg/coil
1. Galvanized Iron wire: It can be divided into two series:
Electro galvanized wire
Hot dipped galvanized wire
2. Galvanized Iron wire: Zinc coated:
Electro galvanized wire(8g/m2 -12g/m2)
Hot dipped galvanized wire(40g/m2-300g/m2)
3. Galvanized Iron wire:
Common weight per coil: 0.4kg-42kg small coil. 50kgs-100kgs big coil (other weights are available as customers' request)
4. Galvanized Iron wire:
Tensile Strength: 40-85kg/mm2------------350-850kg/mm2
5. Galvanized Iron wire:
Good corrosion resistance, firm zinc coating, etc
6. Galvanized Iron wire:
Common package:
Inside plastic film, then weave nylon bag cloth.
Inside plastic film, then hessian cloth.
7. Galvanized Iron wire:
Quality certification: ISO9001:2000
8. Galvanized Iron wire:
Application: Using in making welded mesh, gabion mesh, barbed wire, binding wire, wire ropes, etc.
Guage | SWG(mm) | BWG(mm) |
8 | 4.55 | 4.19 |
9 | 3.66 | 3.76 |
10 | 3.25 | 3.40 |
11 | 2.95 | 3.05 |
12 | 2.64 | 2.77 |
13 | 2.34 | 2.41 |
14 | 2.03 | 2.11 |
15 | 1.83 | 1.83 |
16 | 1.63 | 1.65 |
17 | 1.42 | 1.47 |
18 | 1.22 | 1.25 |
19 | 1.02 | 1.07 |
20 | 0.91 | 0.84 |
21 | 0.81 | 0.81 |
22 | 0.71 | 0.71 |

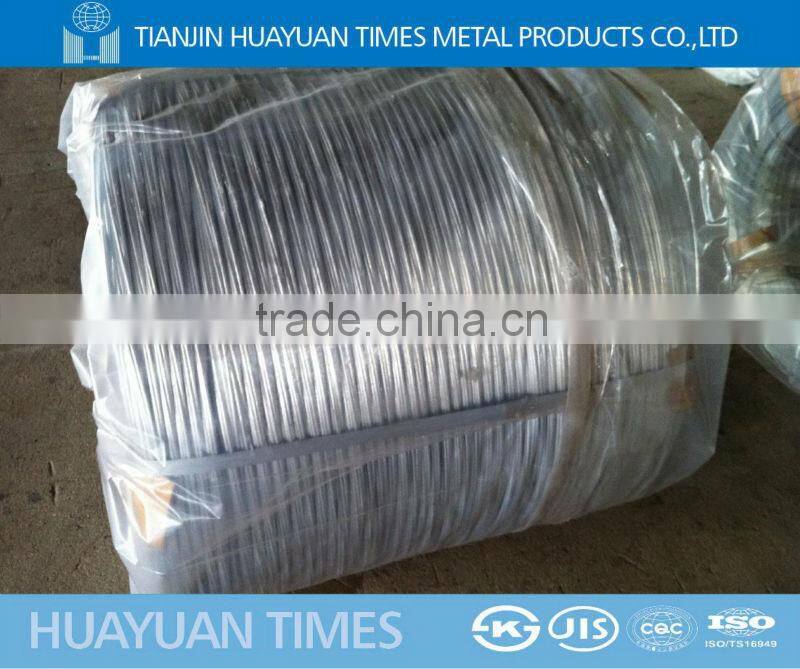

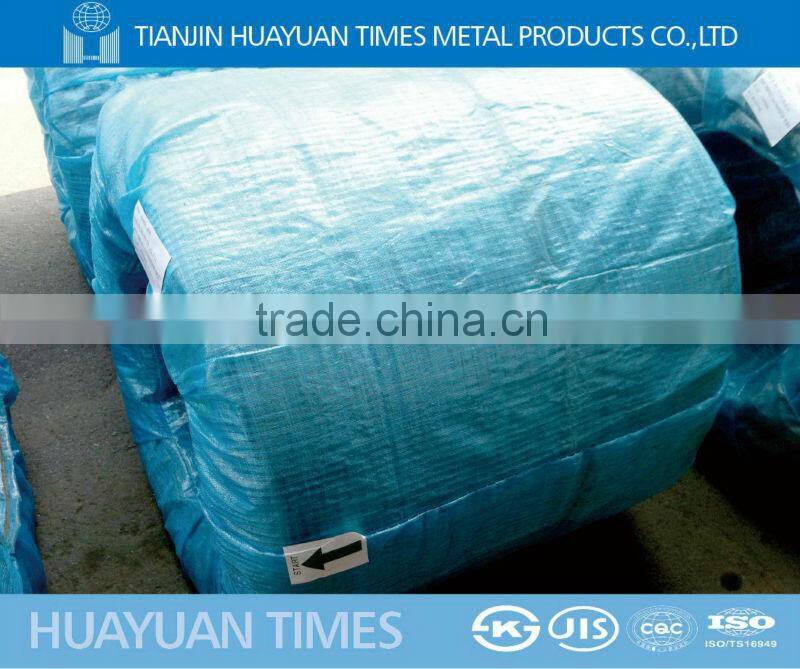

Package of galvanized Iron wire
Inner wrap with plastic film, outter wrap with woven clothes

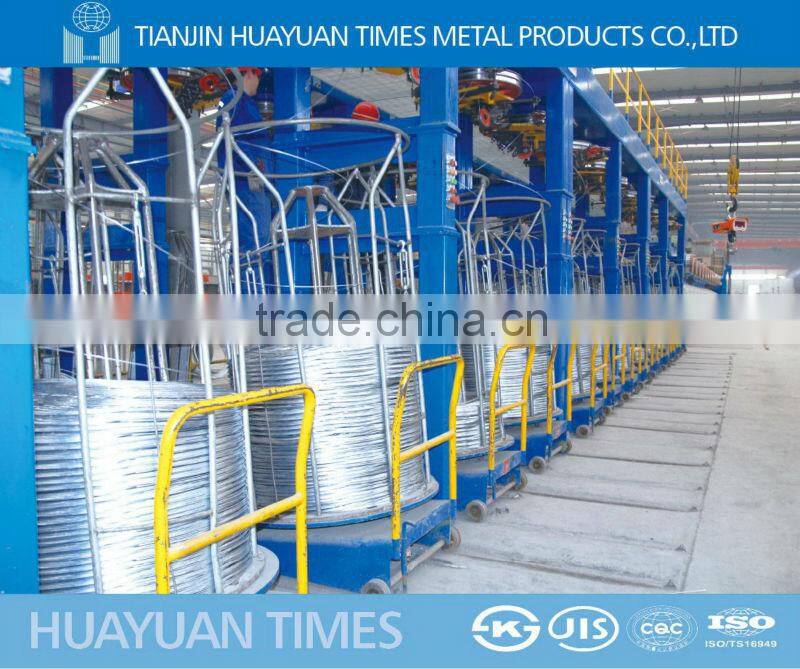

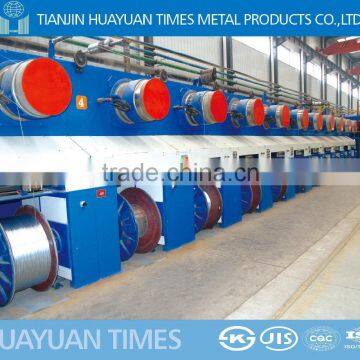

Workshop of galvanized Iron wire
