2015 Hot Sell Outdoor Direct Buried Fiber Optic Cable GYTA
- QINGDAO
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HONGAN | |
| Model Number | GYTA-(2-216) |
Product Description
Features and Benefits:
1.Full cross-section water-blocking structure and double-sided coated film steel belt longitudinal application ensure good water blocking and moisture resistance.
2.Loose tube is filled with special grease to ensure good water blocking and moisture performance
3.The phosphate wire center stiffening member is of high modulus and corrosion resistance. More than 30 years of service life.
Application fields :
-Long-distance communication and LAN
-It's suitable for duct, specially for the places with high requirement for moisture-proof.
-Installation: Duct or non-self-supporting
Product Characteristic:
1.Small size, Light weigt, with good bending resistance performance easy for installation
2.Reasonable structure design and precise control for over length ensuring excellent
characteristics of mechanical tensile strain and enviroment temperature.
3.High strength loose tube material with good performance of hydrolysis resistant, special tube
filling compound ensure a critical protection of fiber.
4.Full section filled ensures moisture-proof and water blocking.
5.Customized longitudinal color strip is available ,easy for identification and maintenace.
Technical parameters:
| Item | Unit | Index | ||||||||
| Core No. | / | 2--30 | 32--36 | 38-60 | 62-72 | 74-84 | 86-96 | 98-108 | 110-120 | 122-132 |
| Diameter | mm | 9.8 | 10.1 | 10.4 | 11.1 | 12 | 12.7 | 13.4 | 14.1 | 14.8 |
| Unit weight | kg/km | 95 | 105 | 108 | 120 | 135 | 150 | 170 | 185 | 200 |
| Max.Allowable tension | N | 1500/600(short term/long term) | ||||||||
| Max.Allowable crush | N/100mm | 1000/300(short term/long term) | ||||||||
| Attenuation | dB/km | below0.36dB/km@1310nm, below0.22dB/km@1550nm | ||||||||
| Minimum bend radius | mm | During installation 20D, During service 10D | ||||||||
| Operating temperature | degree | -40~ +60 | ||||||||

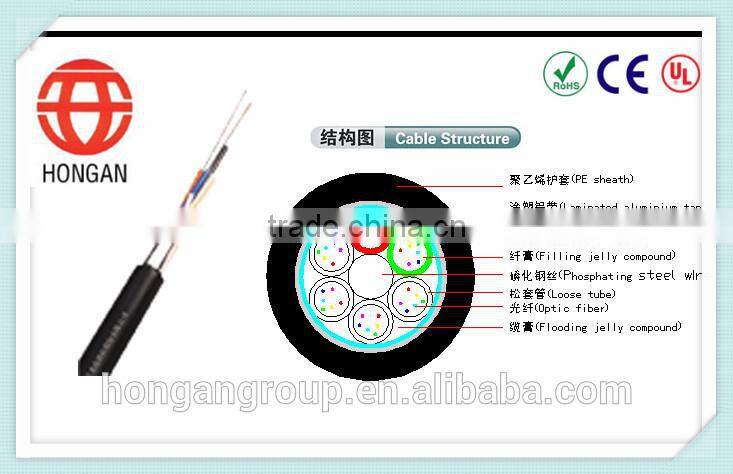

Structural drawing:
