Hot!outdoor Duct 288 Core Central Ribbon Small Diameter Optic Fiber Cable
- qingdao port
- T/T L/C D/P D/A Credit Card PayPal T/T
You May Like
-
Anti-rodent Duct Central Tube 36 Core Optical Fibe Cable Manufacturers
-
Aerial Duct Outdoor Armored Multi Mode 50 125 6core Fiber Optical Cable
-
Competitive Price and High Quality Aerial Steel Armored 12 Core Multi Mode Fiber Optic Cable
-
Layer Outdoor Multi Core Multimode Optic Fiber Cable Duct
-
Steel Armored Duct Fiber Optic Launch Cable
-
GYTS Armored Outdoor Stranded Coring 12 Core Multimode Fiber Optic Cable
Product Details
| Place of Origin | Shandong, China | Brand Name | hongan | |
| Model Number | GYDXTW | |||
Product Description
Specifications
1.27 years experience2. ISO9001,ISO14001
3.IEC60794,IEC60793
4.Mini. Order: 1000meters
5.FOB price:$0.1-9/meter
Characteristics of product:
1.central tube, parallel wires,corrugated steel tape armoring type;
2.small diameter, lighter,more fibers;
3.excellent mechanical and moisture preventing performance;
Applications:
duct,aerial;
distribution line and feeder line of oudoor for access network
entrace to access network.
Temperature:
operating temperature:-40°C~+70°C
Standards:
IEC811,IEC60794,IEC60793
Optional:
1.the structure diameter can be designed for customers;
2.to design flame resistance, anti-rodent, anti-ant cable according to the customers' demands.
Cable structure:
Structural parameters:
| fiber count/fiber ribbon | nominal diameter (mm) | nominal weight (kg/km) | permitted tensile LT/ST(N) | permitted crush LC/SC (N) | bend radius static state/dynamic state (mm) |
| 48-96/12 | 16.0 | 235 | 600/1900 | 300/100 | 10D/20D |
| 108-144/12 | 18.0 | 310 | 600/2500 | 300/100 | 10D/20D |
| 156-216/12 | 20.5 | 360 | 1000/3000 | 300/100 | 10D/20D |

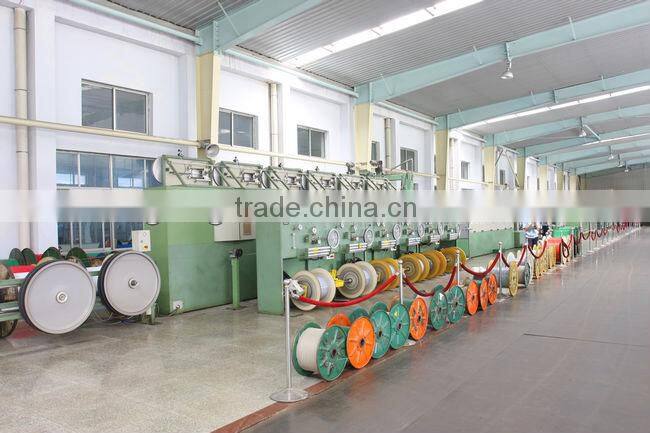

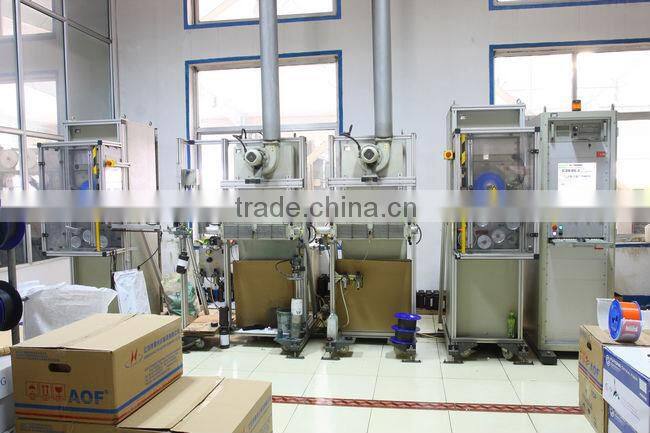

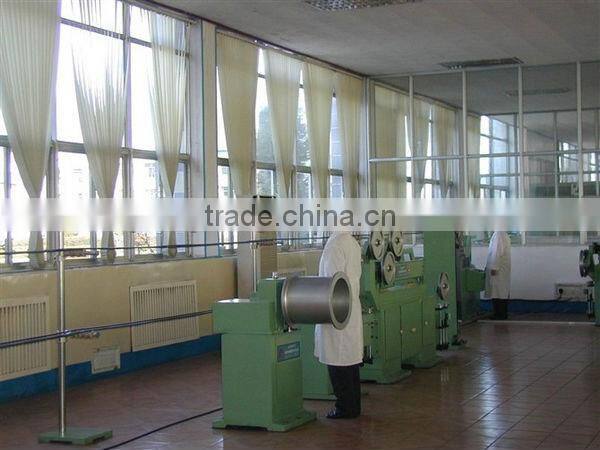

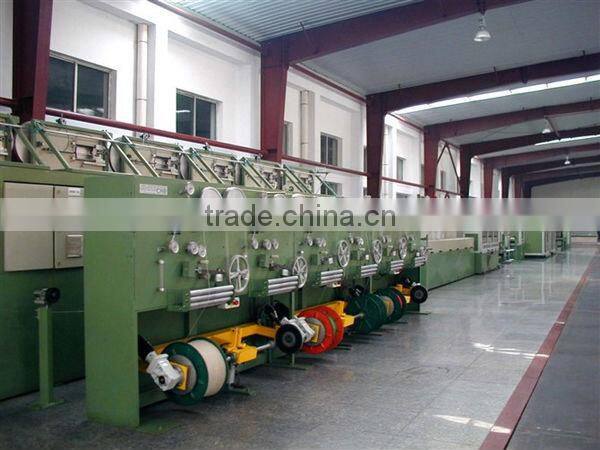

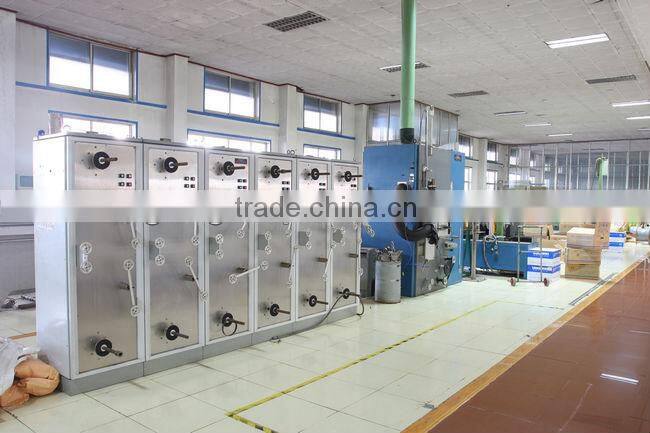

Product lines:

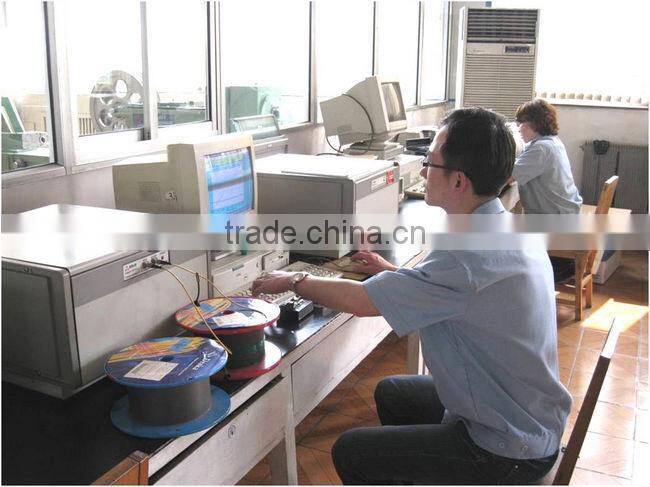

Test equipments:
Contact Us
- Hongan Group Co., Ltd.
- Contact nameSunny Sun Chat Now
- Phone86-631-8357098
- AddressNo.88 Hengshan Road, Weihai, Shandong
