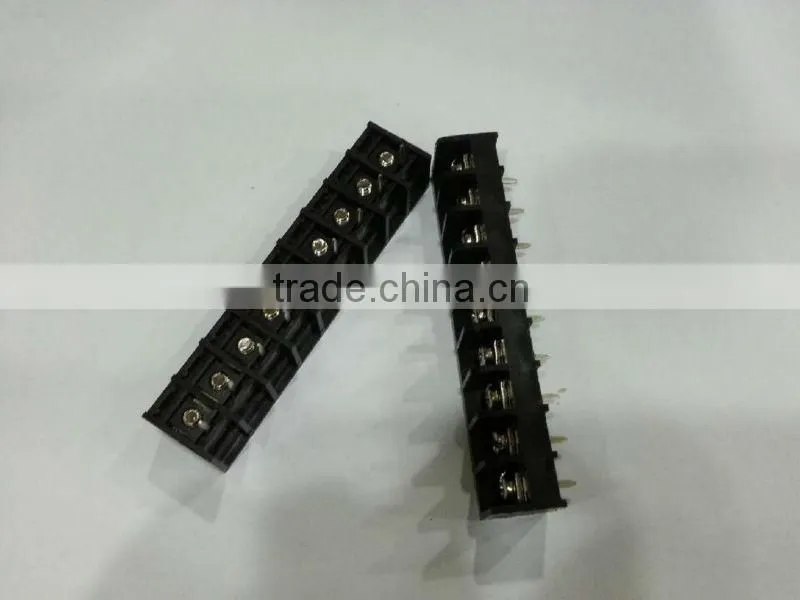

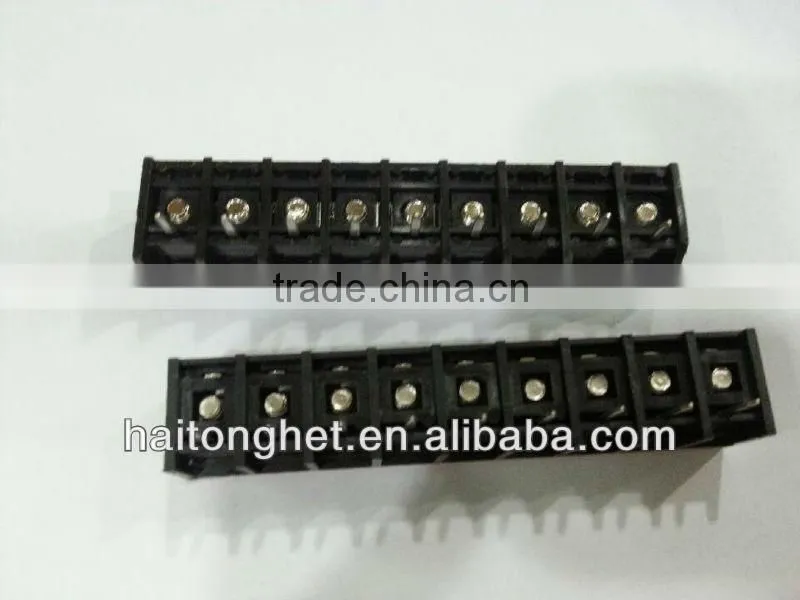

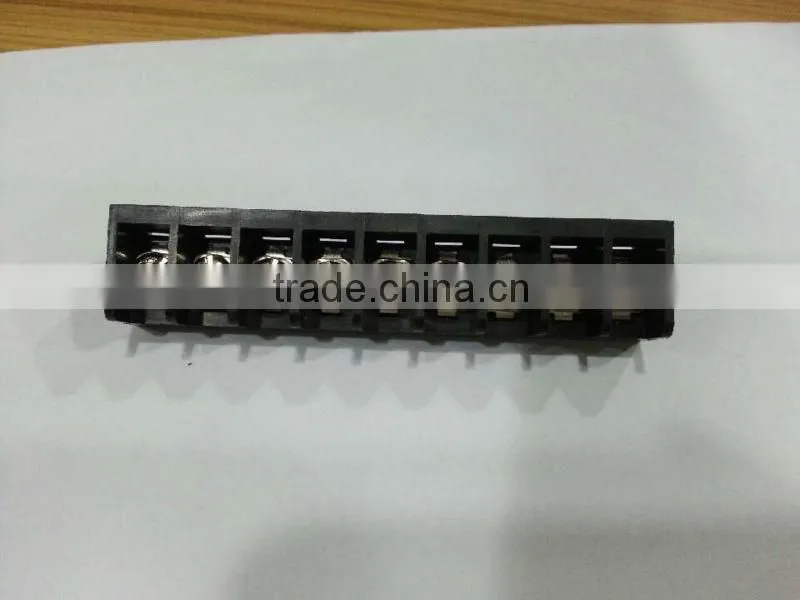

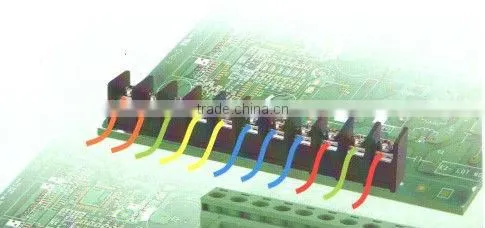

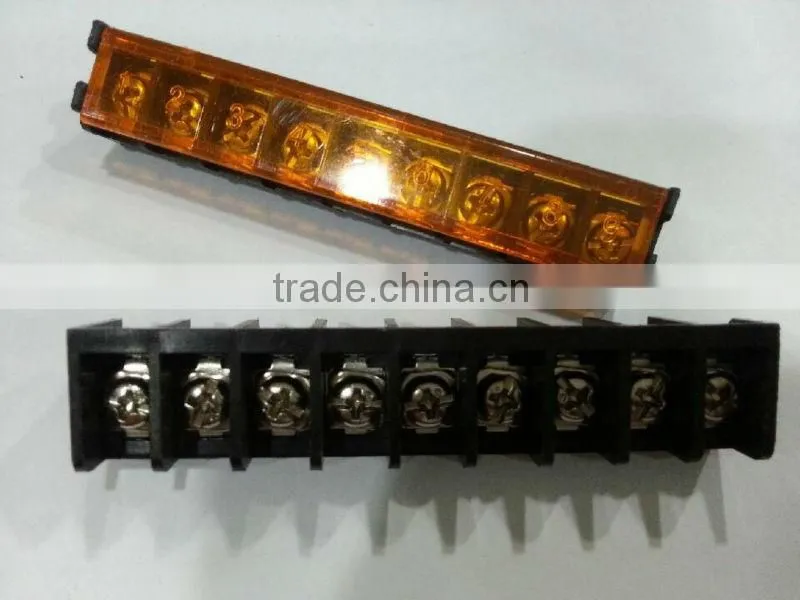

Barrier krone telephone terminal blocks
Part&material:
Housing: PA66,UL94 V-0
Screws : steel
Part&material
Housing: PA66,UL94 V-0
Screws : steel ,Ni plating
Terninal Brass,Tin Plating
Electrical Specification
Rated : 300V,15A
Contact Resistance : 20mΩ MAX
Insulation Resistance : 5000MΩ 1000V
Dielectric Strength : 2000V/1min
Temp range :-40°C~+105°C
Torque : 0.8Nm
Wire Range : 22-12AWG
PS
1. We can offer free samples.
2. Various operation force, height, and color for your choice.
3. The discount depends on your order quantity.
Packaging & Delivery
Packing Detail: |
as customer's request |
Delivery Detail: |
3days |
Why Us:
1: Excellent quality with competitive price
We are manufactory making switches more than 20 years.
2: Quality guaranty
Check quality one by one before shipping, We have good quality-control team and precision testing machine to control the quality seriously
3. Design the wonderful switch as you request.
And according your design to produce quality switch
Shipping and Payments:
Payment terms: 30% deposit in advance, 70% before shipment,
100 % T/T in advance
Lead time: 3 working days after receiving payment
Shipping: Express. Air shipment
