LCH-COB-2*6W-CW COB LED downlight, ip65 led downlight, led square downlight
| Part No. | LCH-COB-2*6W-CW |
| Color | Cool White |
| Power | 2X6w |
| Lamp consumption | 13W |
| Voltage | 100-240vAC |
| CCT | 5500K-6500K |
| Lumen | 1100-1160lm |
| Angle | 30°/60° |
| SIZE(mm) | L175*W92*H75 155*76(hole) |

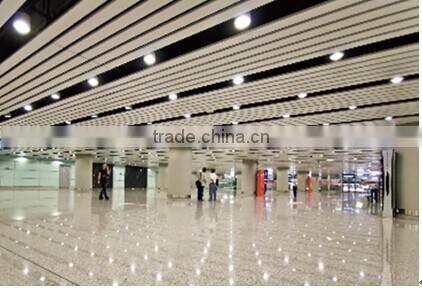

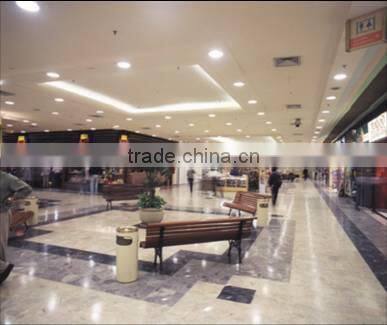

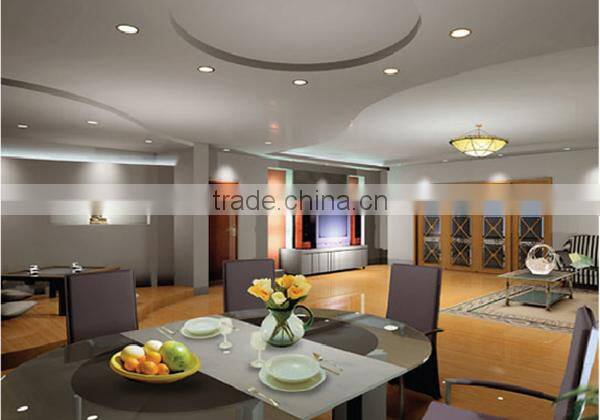

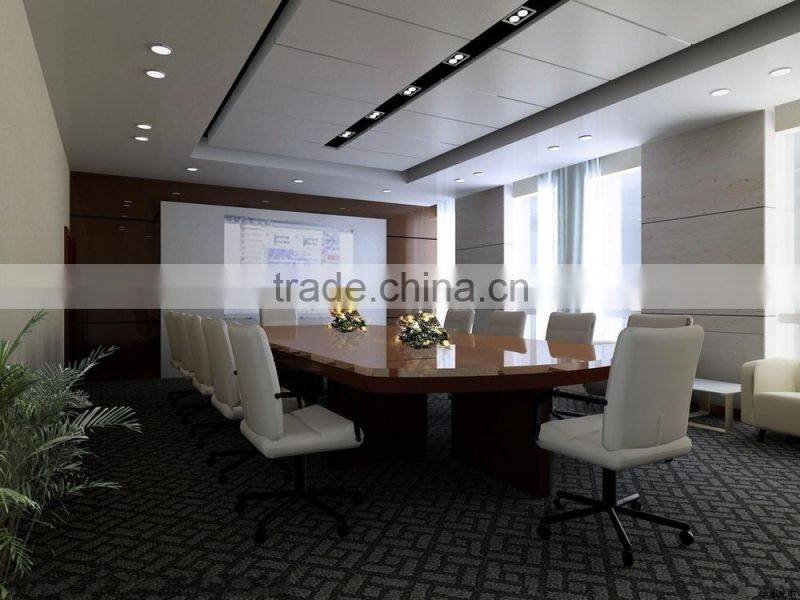

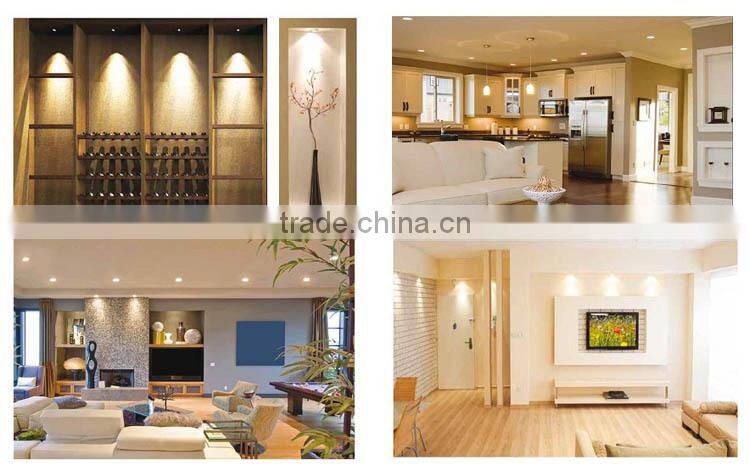

Application:
1.Conference/meeting rooms
2.Factory & office
3.Commercial purposes
4.Residential & institution buildings
5.Schools, colleges& universities
6.Supermarket lighting
Installation:
The distance between the light and any flammable materials must not be less than 0.2mm.
The distance between the upper part of the installed light and the ceiling must not be less than 20mm.
Please check the installation drawing before the installation.
FAQ:
1.What is COB ?
Chip-on-Board, or COB, refers to the semiconductor assembly technology wherein the microchip or die is directly mounted on and electrically interconnected to its final circuit board, instead of undergoing traditional assembly or packaging as an individual IC. The elimination of conventional device packaging from COB assemblies simplifies the overall process of designing and manufacturing the final product, as well as improves its performance as a result of the shorter interconnection paths.
2. What is COB Advantage ?
1) Reduced space requirements;2) Reduced cost;3) Better performance due to decreased interconnection lengths and resistances;4) Higher reliability due to better heat distribution and a lower number of solder joints;5) Shorter time-to-market
3.The COB Led Downlight Feature:
1. Input Voltage : 85-265VAC,Wide voltage design, available for whole world use.2. Appearance : Milk white, the same with housing finish color, creating a mood that is warm and cozy.3. Material : Aluminum alloy and PMMA / Glass light guide plate.4. Chips : Apply the high lumen Epistar chips as light source to insure high luminous flux and conformity light output.5. Heat dissipation: The multi-fin casting design ensures full he at dissipation.6. Driver : External isolation driver.7. Dimmable is available.

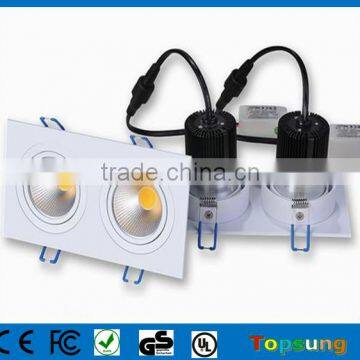

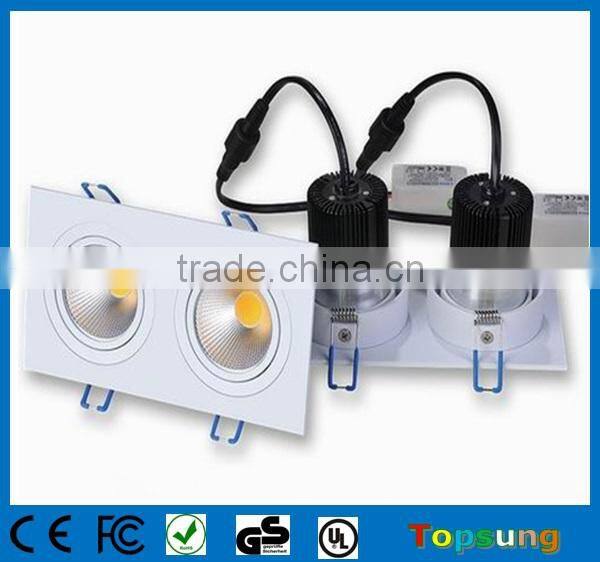

Product Image Show:
TYPE OF TOPSUNG LED downlight:
| PART NO.: | LED Power | Lamp consumption | Lumen |
Angle | Size mm |
| LCH-COB-6W-CW | 6w | 7.5W | 550-580lm | 30°/60° |
φ90*H75 φ75(hole) |
| LCH-COB-6W-NW | 530-550lm | ||||
| LCH-COB-6W-WW | 500-530lm | ||||
| LCH-COB-6W-CW-S | 6w | 7.5W | 550-580lm | 30°/60° |
92*92*H75 φ75(hole) |
| LCH-COB-6W-NW-S | 530-550lm | ||||
| LCH-COB-6W-WW-S | 500-530lm | ||||
| LCH-COB-2*6W-CW | 2*6W | 13W | 1100-1160lm | 30°/60° | L175*W92*H75 155*76(hole) |
| LCH-COB-2*6W-NW | 1050-1100lm | ||||
| LCH-COB-2*6W-WW | 1000-1050lm | ||||
| LCH-COB-3*6W-CW | 3*6W | 22.5W | 1500-1700lm | 30°/60° | L255*W92*H70 235*76(hole) |
| LCH-COB-3*6W-NW | 1400-1600lm | ||||
| LCH-COB-3*6W-WW | 1350-1500lm | ||||
| LCH-COB-10W-CW | 10w | 12W | 950-1050lm | 30°/60° |
φ110*H85 φ95(hole) |
| LCH-COB-10W-NW | 930-1030lm | ||||
| LCH-COB-10W-WW | 900-1000lm | ||||
| LCH-COB-10W-CW-S | 10w | 12W | 950-1050lm | 30°/60° |
120*120*H85 φ90(hole) |
| LCH-COB-10W-NW-S | 930-1030lm | ||||
| LCH-COB-10W-WW-S | 900-1000lm | ||||
| LCH-COB-2*10W-CW | 2*10W | 24W | 1900-2100lm | 30°/60° | L240*W120*H85 192*90(hole) |
| LCH-COB-2*10W-NW | 1850-2050lm | ||||
| LCH-COB-2*10W-WW | 1800-2000lm | ||||
| LCH-COB-3*10W-CW | 3*10W | 36W | 2700-3000lm | 30°/60° | L330*W120*H85 300*90(hole) |
| LCH-COB-3*10W-NW | 2650-2900lm | ||||
| LCH-COB-3*10W-WW | 2600-2800lm | ||||
| LCH-COB-15W-CW | 15w | 17W | 1400-1500lm | 30°/60° | φ138*H105 φ120(hole) |
| LCH-COB-15W-NW | 1370-1470lm | ||||
| LCH-COB-15W-WW | 1350-1450lm | ||||
| LCH-COB-15W-CW-S | 15w | 17W | 1400-1500lm | 30°/60° |
140*140*H105 φ120(hole) |
| LCH-COB-15W-NW-S | 1370-1470lm | ||||
| LCH-COB-15W-WW-S | 1350-1450lm | ||||
| LCH-COB-2*15W-CW | 2*15W | 34W | 2900-3000lm | 30°/60° | L270*W140*H105 230*120(hole) |
| LCH-COB-2*15W-NW | 2800-2900lm | ||||
| LCH-COB-2*15W-WW | 2700-2800lm | ||||
| LCH-COB-3*15W-CW | 3*15W | 51W | 4200-4600lm | 30°/60° | L400*W140*H105 380*120(hole) |
| LCH-COB-3*15W-NW | 4100-4500lm | ||||
| LCH-COB-3*15W-WW | 4000-4300lm | ||||
| LCH-COB-20W-CW | 20w | 22W | 1900-2000lm | 30°/60° | φ138*H105 φ120(hole) |
| LCH-COB-20W-NW | 1850-1900lm | ||||
| LCH-COB-20W-WW | 1800-1900lm | ||||
| LCH-COB-20W-CW-S | 20w | 22W | 1900-2000lm | 30°/60° |
140*140*H105 φ120(hole) |
| LCH-COB-20W-NW-S | 1850-1900lm | ||||
| LCH-COB-20W-WW-S | 1800-1900lm | ||||
| LCH-COB-2*20W-CW | 2*20W | 44W | 3800-4000lm | 30°/60° | L270*W140*H105 230*120(hole) |
| LCH-COB-2*20W-NW | 3700-3900lm | ||||
| LCH-COB-2*20W-WW | 3600-3800lm | ||||
| LCH-COB-3*20W-CW | 3*20W | 66W | 5700-6000lm | 30°/60° | L400*W140*H105 380*120(hole) |
| LCH-COB-3*20W-NW | 5550-5800lm | ||||
| LCH-COB-3*20W-WW | 5400-5600lm | ||||
| LCH-COB-30W-CW | 30w | 33W | 2700-2900lm | 30°/60° | φ160*H120 φ140(hole) |
| LCH-COB-30W-NW | 2600-2800lm | ||||
| LCH-COB-30W-WW | 2500-2700lm | ||||
| LCH-COB-40W-CW | 40w | 44W | 3400-3600lm | 60° | φ180*H120 φ160(hole) |
| LCH-COB-40W-NW | 3300-3500lm | ||||
| LCH-COB-40W-WW | 3200-3400lm | ||||
| LCH-COB-50W-CW | 50w | 55W | 3800-4000lm | 60° | φ230*H140 φ200(hole) |
| LCH-COB-50W-NW | 3700-3900lm | ||||
| LCH-COB-50W-WW | 3600-3800lm |
Global uses:
Certifications
Our Factory:
Shenzhen Topsung Lighting Co.,Limited, member of Topsung Industrial Co., Limited, is a professional manufacturer of LED lighting, in Shenzhen, the high-tech city of China.
Now, it had gained a great success in extending European & American market in passed several years, even more have taken up a considerable market share, on the basis of putting eyes on high beginning & speed developing. After decades of solidation & extension, Topsung have established long-term stable business relationship with various enterprises all over the world.For a very long time, Topsung always abide by the principle of taking market as guide and customer’s demand as target. As the increasing development of technology, we can provide market with whole-line products ranging from A-level free-communicate products to family lighting and personal notebook accessories. Trustable quality and consummate service decorate Topsung with well-known reputation and customer royalty.
Our R&D center also integrated (combined) latest technology, innovative design with traditional products and became a new purchasing focus of Global Top 500.We believe that: innovation, high-quality, low price and great efficiency will bring both parties with long-term mutual benefit.
OEM and ODM service is welcomed.
