Specifications
320mm scaffold steel plankavailable in lengths ranging from 12 ft. (3.65m) to 30 ft. (9.14m)
OEM design accept
HDG finishing
ENGINEERED WITH CONSISTENT QUALITY
Our products are engineered to meet the highest quality standards based on three simple factors: material , fit and finish.
MATERIAL
We use only the highest quality steel in our scaffold products. Our steel is certified and tested to confirm that it meets and exceeds industry standards no matter the project’s location or climate.
FIT
Our products are engineered with versatility and usability in mind. Our modified product designs
increase efficiencies and productivity, saving your projects’ time and money.
FINISH
Our products are mainly protected by hot-dipped zinc galvanizing. This method of finishing allows for maximum utilization and increased product life over the course of multiple projects.
| Model No. | Specification | Material | Steel Thickness | Finishing |
| w-SWP0732 | 0.732m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP1090 | 1.090m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP1286 | 1.286m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP1572 | 1.572m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP2072 | 2.072m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP2572 | 2.572m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWP3050 | 3.05m Layher style steel plank with hooks,320mm width | Q235 | 1.65mm | h.d.g. |
| w-SWPF1572 | 1.572m Layher style filler steel plank with hooks,7-9/16" width | Q235 | 1.65mm | h.d.g. |
| w-SWPF2072 | 2.072m Layher style filler steel plank with hooks,7-9/16" width | Q235 | 1.65mm | h.d.g. |
| w-SWPF2130 | 2.13m Layher style filler steel plank with hooks,7-9/16" width | Q235 | 1.65mm | h.d.g. |
| w-SWPF2572 | 2.572m Layher style filler steel plank with hooks,7-9/16" width | Q235 | 1.65mm | h.d.g. |
| w-SWPF3050 | 3.05m Layher style filler steel plank with hooks,7-9/16" width | Q235 | 1.65mm | h.d.g. |
We has a range of platforms that will suit any application or use, ranging from scaffold grade lumber planks to aluminum decks.
Our steel planks have been especially designed to complement the versatile ringlock System Scaffold product. The lightweight steel planks have integral wind latches and are made from galvanized high strength steel.
Our range of aluminum decks come in various configurations, including all-aluminum and aluminum plywood. Both are lightweight and easy to manage. Trap door decks are also available.
When spanning across opening is required, our all-aluminum catwalks come with a complete range of accessories and are available in lengths ranging from 12 ft. (3.65m) to 30 ft. (9.14m).

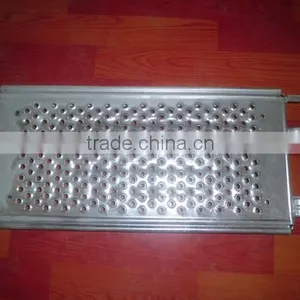

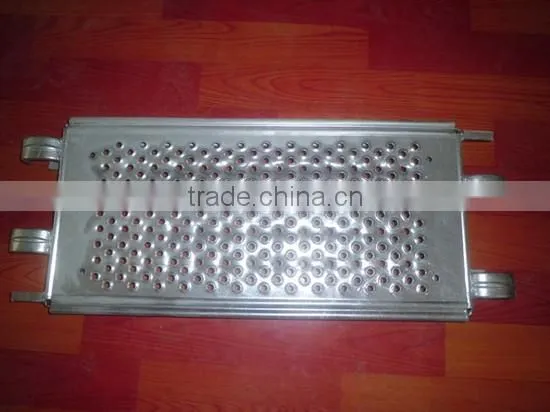

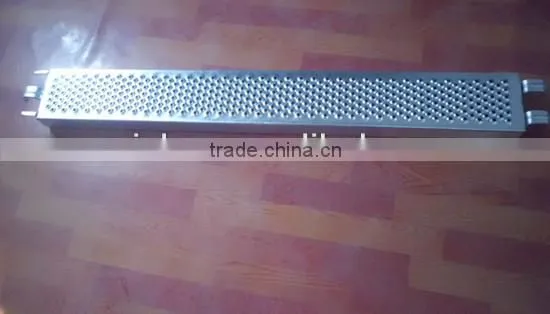

320mm width layher style steel plank with hooks

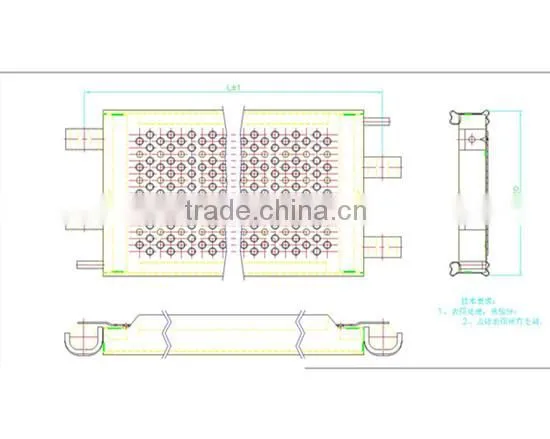

Drawings:

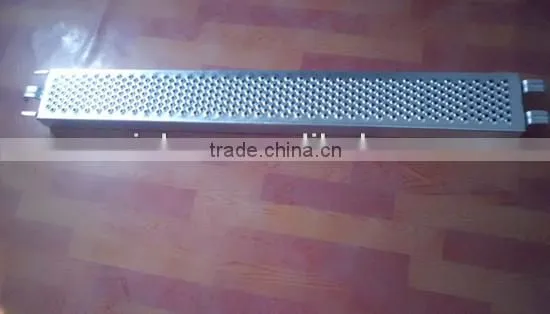

Filling steel plank to work with 320mm steel:
Drawing:

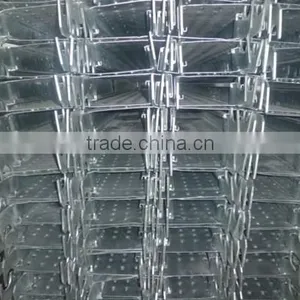

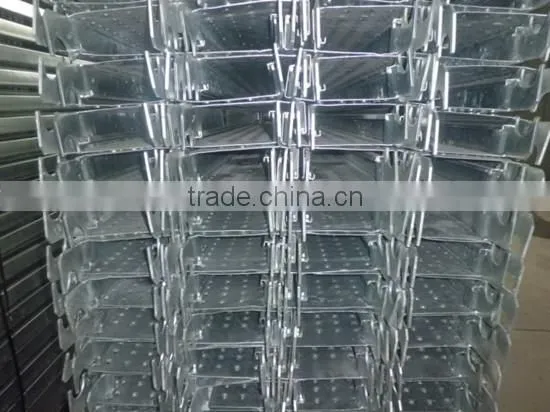

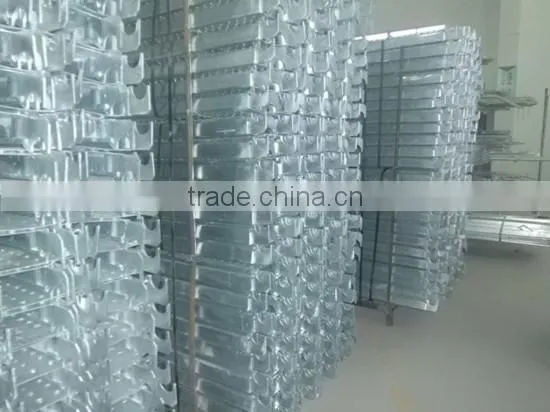

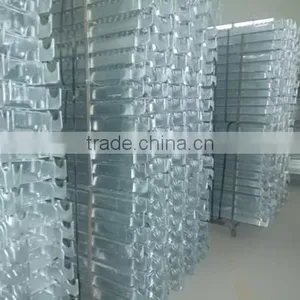

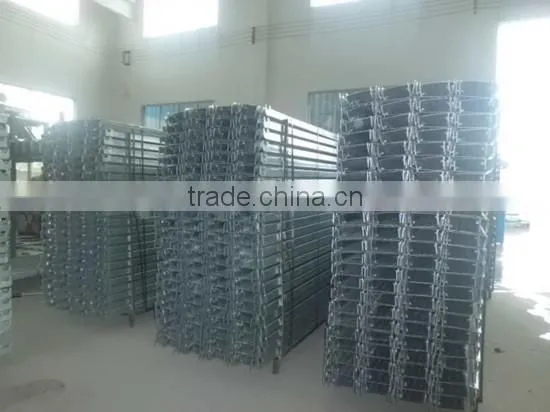

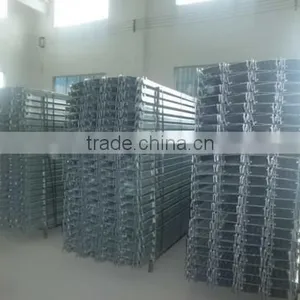

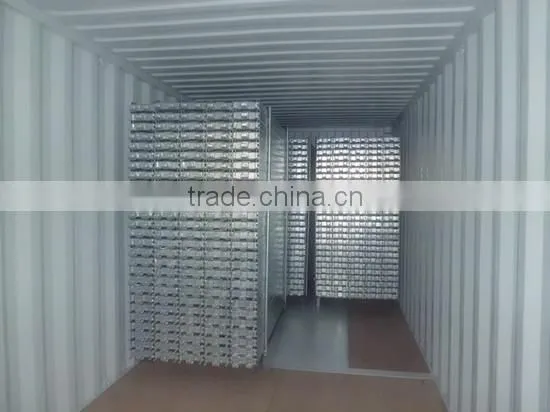

Packed in bundle in pallet
We are a manufacturer very near in Shanghai port within in 45 minutes by train.
We accept OEM design.
Warranty in 1-2 years.
Our show room
