Wire Drawing Reels for Wire Drawing Machine
US$ 9 - 590
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard:
AISI
Grade:
600 Series
Wire Gauge:
0.02-5mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Flange Pressed Steel Reels 12 RibsUS$ 9 - 590MOQ: 1 Piece -
Waste Copper Cable Recycling MachineUS$ 6,000 - 30,000MOQ: 1 Set
-
Copper Cable/Wire Recycling PlantUS$ 15,000 - 30,000MOQ: 1 Set
-
Copper Cable/Wire Recycling MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Waste Copper /aluminum Cable GranulatorUS$ 15,000 - 30,000MOQ: 1 Set
Standard
AISI
Grade
600 Series
Wire Gauge
0.02-5mm
Length
according to customers' requirements
Application
all industry, wire drawing machine
Certification
ISO
C Content (%)
standard level
Si Content (%)
standard level
Place of Origin
Henan, China
Brand Name
CW
Model Number
304
Speciafication:
1.Wire drawing spool
2.Curly edge for increased strength
3.Enough stiffening ribs for flange sturdiness
4.OEM service & Customized design available
Product Description

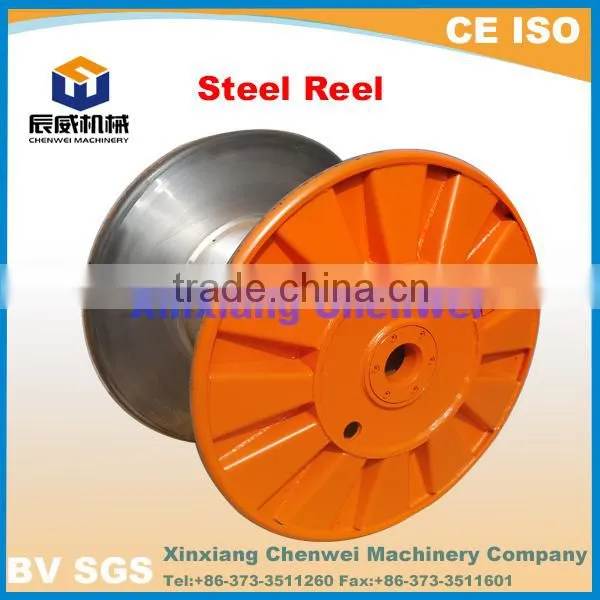

Wire Drawing Reel for wire drawing machine

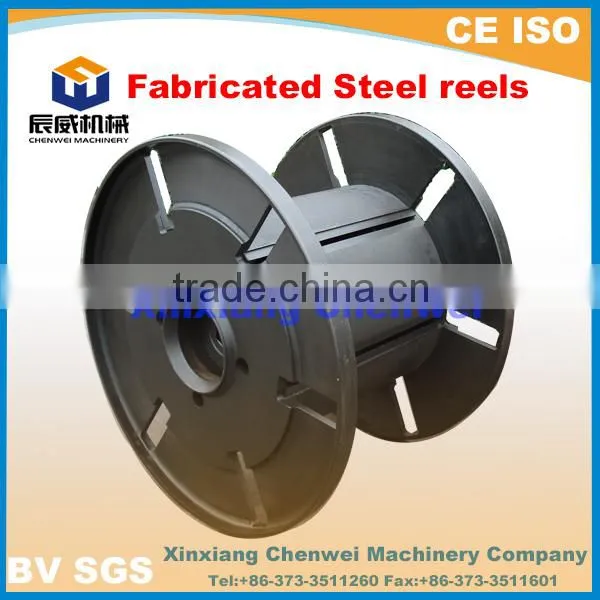

The structural and corrugated flange design steel wire drawing reels are manufactured for use with cabling machi-nery and extrusion machinery. The reels are designed for in house processing and shipping require-ments etc.
Application: for cable .steel wire,steel rope,copper wire,aluminum wire and welding wire etc
Production standards:GB4004-83 JB/T8997.4-1999 DIN46397
Technical Data of wire drawing reel:
| Model | d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | Vdm3 |
| 800 | 800 | 400 | 120 (160) |
80 | 28-40 | 160 | 600 | 500 | 188.5 |
| 1000 | 1000 | 500 | 750 | 630 | 371.1 | ||||
| 1120 | 1120 | 560 | 850 | 710 | 524.6 | ||||
| 1250 | 1250 | 630 | 950 | 800 | 732.4 | ||||
| 1400 | 1400 | 710 | 40-63 | 300 | 1060 | 900 | 1029.1 | ||
| 1600 | 1600 | 800 | 1180 | 1000 | 1508.0 | ||||
| 1800 | 1800 | 1000 | 160 (200) |
100 | 1320 | 1120 | 1970.4 | ||
| 2000 | 2000 | 1120 | 125 | 1500 | 1250 | 2695.4 | |||
| 2240 | 2240 | 1250 | 160 (250) |
1700 | 1400 | 3799.1 | |||
| 2500 | 2500 | 1500 | 1900 | 1600 | 5026.5 | ||||
| 2800 | 2800 | 1800 | 280 | 140 | 2120 | 1800 | 6503.1 | ||
| 3150 | 3150 | 1900 | 300 | 160 | 2300 | 2000 | 9915.6 | ||
| 3550 | 3550 | 2500 | 350 | 200 | 80 | 500 | 2300 | 9973 | |
| 4000 | 4000 | 2800 | 2400 | 12807 | |||||
| 4500 | 4500 | 3000 | 2500 | 17671 |

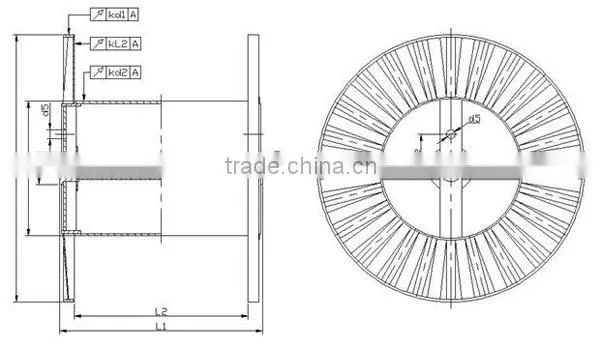

Drawing of large Diameter wire drawing reel
Our Services
- Customized design available
- Short delivery time
- MOQ 1PC
- OEM service available
Production Flow
For details about our products,please call us or emal us!
