Home > Consumer Electronics > Display & Accessories > LCD Module > 1.54 Inch 240*240 Resolution Small Size Lcd With Touch Panel
1.54 Inch 240*240 Resolution Small Size Lcd With Touch Panel
US$ 100 - 150
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Topfoison
Model Number:
TF15412A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.54 Inch 240*240 Resolution Small TFT Lcd Module TF15412AUS$ 100 - 150MOQ: 1 Piece -
Tft Lcd 320*240 Product 2.3inch 240cd/m2 LuminanceUS$ 3.90 - 10.00MOQ: 1 Piece
-
Brightness Tft Screen 2.3inch 320*240 Resolution for Electronic SystemUS$ 3.90 - 10.00MOQ: 1 Piece
-
2.3inch Tft Lcd High Lumiance 320*240 ScreenUS$ 3.90 - 10.00MOQ: 1 Piece
-
Tft Square Lcd 2.3inch Topfoison Best Price for Smart WatchUS$ 3.90 - 10.00MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Topfoison
Model Number
TF15412A
Type
TFT
1.54 inch 240*240 resolution small size lcd with touch panel
Product Description
| Item: | 1.54 inch 240*240 resolution small size lcd with touch panel |
| Resolution: | 240*240 |
| Inserting Mode: | plug-in |
| Viewing Angle: | IPS |
| Interface: | MCU 8BIT compatible 8080 I/F |
| Outline Dimension: | 32.32mm(W)*35.76mm(H)*2.5mm(D)(Typ) |
| Active Area: | LCD: 27.72mm(W) *27.72mm(H) |
| TP : 28.32mm(W) *28.32mm(H) | |
| Driver IC: | ILI9340L |
| PIN Nos.: | 22 |
| LED Connect Mode: | 3 LEDs |
| Operating Voltage | -0.3~4.6V |
| Operating temperature | -20~70°C |
| Storage temperature | -30~80°C |
| Backlight Luminance: | 4000 CD/M2 |
| LCM Luminance: | 200 CD/M2 |
| LCM Brightness Uniformity | 80 |

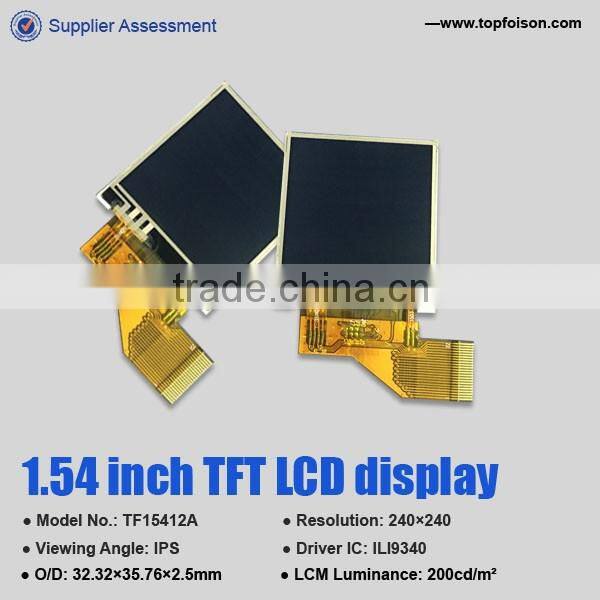

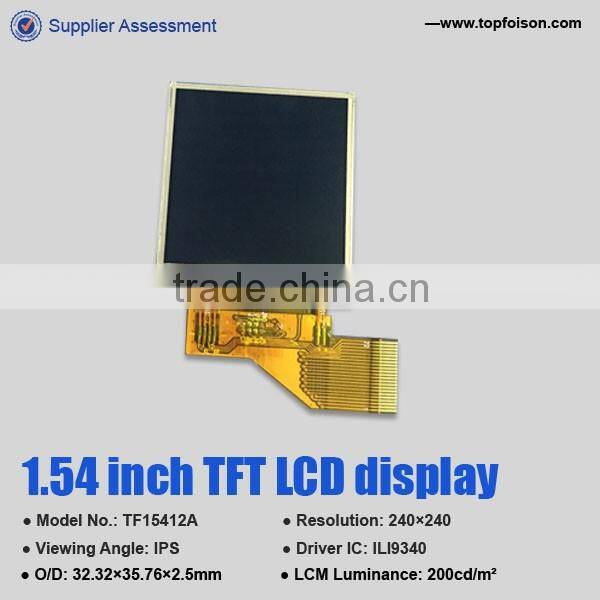

Detailed Images
1.54 inch 240*240 resolution small size lcd with touch panel
Contact Us
1.54 inch 240*240 resolution small size lcd with touch panel
Company Information
Topfoison covers 6500 sq.m. production workshop area, including 4000 sq.m. dust-free clean workshop with more than 600 staffs working inside. Since the start, our company has focused on the TFT LCD’s R&D, manufacturing and selling. The 6 world-class automatic FOG, COG production lines ensure the daily capacity of 100,000 pcs. We also have our own professional R&D groups specialized in a wide range fromTN/STN/FSTN/OLED/Capacitive touch panel&Resistive touch panel/Plastic moulding customization.
Product Introduction
| (1)Product Range | |||
| TFT LCD display | Resistive Touch Panel | Plastic Mould | Solution Help |
| TN/STN/FSTN/OLED | Capacitive Touch Panel | Electronic Component | |
(2)Main Size of TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*128 |
| 1.77" | 128*160 |
| 2.0" | 176*220 |
| 2.4" | 240*320 |
| 2.8" | 240*320 240*400 |
| 3.0" | 240*400 |
| 3.5" | 320*240 320*480 |
| 4.3" | 480*272 |
| 5.0" | 800*480 |
| 7.0" | 800*480 |
| 9.7" | 1024*768 |
(3)Customization Items for TFT LCD Display | |
| Size | Resolution |
| 1.44" | 128*160 |
| 1.5" | 128*128 round type |
| 2.0" | 220*176,240*320,320*240 |
| 2.2" | 176*220,220*176,240*320,320*240 |
| 2.4" | 320*240 |
| 2.6" | 240*320,320*240,240*400 |
| 2.8" | 240*320,320*240,240*400 |
| 3.0" | 240*320 |
| 3.2" | 240*320,240*400,320*480,480*800 IPS full angle |
| 3.5" | 480*800,480*320,320*480 full angle |
| 4.3" | 480*272 high luminance |
| 5.0" | 800*480 high luminance |
Main Application
Product | Applications |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Packaging & Shipping
| 1 | MOQ: | 1pcs |
| 2 | L/T: | Samples in stocks,2-4 weeks for mass production |
| 3 | Trade Terms : | EXW |
| 4 | Payment: | 100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
| 5 | Warranty: | 12 months |
| 6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
