Specifications
1. Simple structure, stable working condition.2. Customized design.
Introduction
The unique gyratory motion imparts a combination of actions to the material as its passes along the screen furface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight line motion at the discharge end.
Features
1. Whole sealing structure, no dust pollution.
2. Without vertical vibration, the mesh could gain a longer service life.
Scope of Application
This gyratory sieve machine can be used to handle material with high water content, highly-viscous material and material that easily blocks the mesh. It is particularly effective to process material such as salt, sugar, washing powder, fertilizer ect.
Techinical Parameter
Deck
| model | Screen size (w*l) (mm) | Vibrating motor | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) | |
Power (kw) | speed (rpm) | ||||||||
1 | DZ-1014 DZ1021 DZ1030 DZ1521 DZ1530 DZ1536 DZ1236 | 1000×1400 1000×2100 1000×3000 1500×2100 1500×3000 1500×3600 1200×3600 | 1.5 1.5 1.5 1.5 2.2 5.5 5.5 | 960 | 2731 3285 4484 3460 4232 5098 5263 | 962 962 1035 1003 1362 1352 1327
| 1168 1156 1194 1708 1778 1956 2464 | 1200 1200 1251 1759 1892 2048 2556
| 715 980 1200 1380 1340 2410 2020 |
2 | 2DZ1021 2DZ1030 2DZ1521 2DZ1836 2DZ1530 2DZ1536 | 1000×2100 1000×3000 1500×2100 1800×3600 1500×3000 1500×3600 | 1.5 4 4 7.5 7.5 7.5 | 960 | 3743 4575 3728 5305 4765 5365
| 1121 1317 1330 1500 1397 1368
| 1308 1270 1781 2256 1956 2032
| 1308 1270 1781 2256 1958 2032 | 1400 1840 1710 3880 2780 3180 |
3 | 3DZ1021 3DZ1630 3DZ1836 3DZ2050 | 1000×2100 1000×3000 1800×3600 2000×5000 | 5.5 5.5 7.5 11 | 960 | 4854 4765 5200 5400 | 1422 1391 1500 2000 | 1435 1956 2400 2750 | 1549 2159 2500 2810 | 2150 3200 4170 5500 |

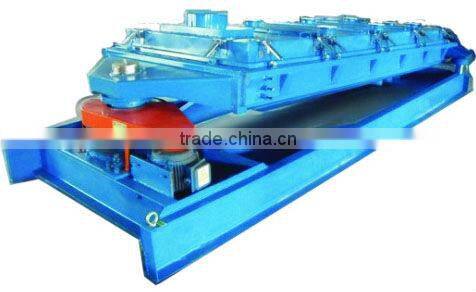

Machine Picture

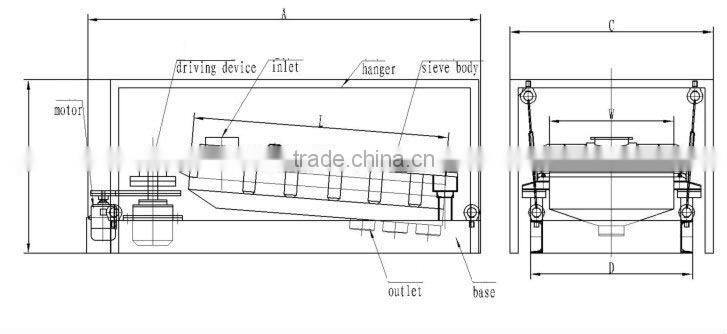

Machine Structure
