Specifications
1. Stable and long span life2 Easy to adjust
3 Reliable operation
4 Portable
5 Esay to maintain
Brief introduction of our Electromagnetic
Vibrating Feeder
Application
GZV series Electromagnetic Tiny Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding.
GZV series Electromagnetic Tiny Vibrating Feeders are widely used in mining, building material, food, chemical and other industries in the crushing and screening plants. In the production line, it can deliver materials to crusher evenly and continuously and at the same time, it can also screen materials roughly.
Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Features
1. Stable and long span life.
2. Easy to adjust.
3. Reliable operation.
4. Easy maintenance.
5. No pollution.
Working Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Specification
| Model | GZV1 | GZV2 | GZV3 | GZV4 | GZV5 | GZV6 |
Capacity(t/h) |
0.1 | 0.5 | 1 | 2 | 4 | 6 |
| Double Amplitude(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Frequency(r/m) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Power(W) | 5 | 8 | 20 | 25 | 30 | 50 |
| Weight(kg) | 4 | 7 | 12 | 18 | 27 | 45 |

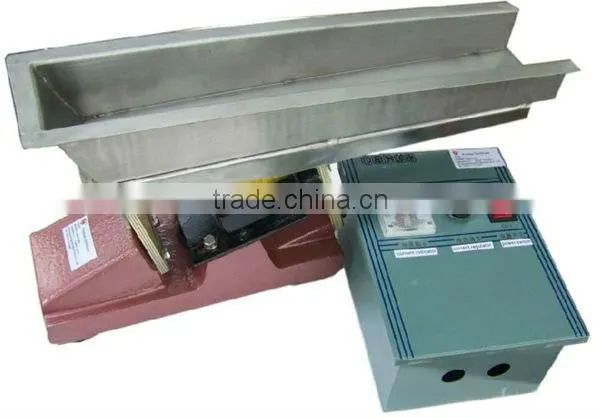

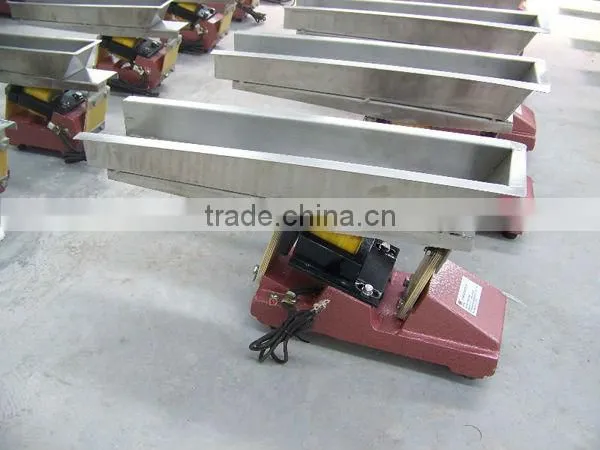

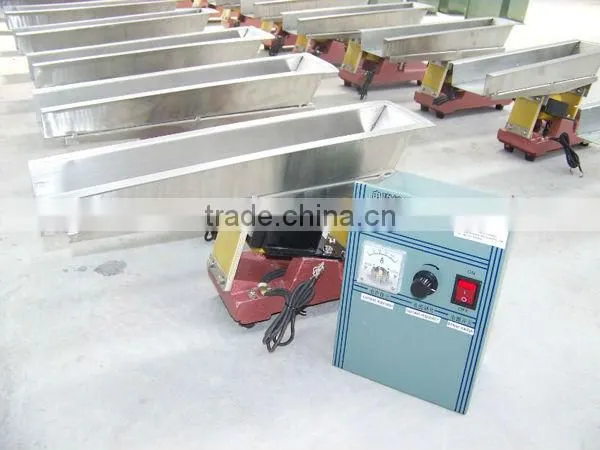

Machine Picture
