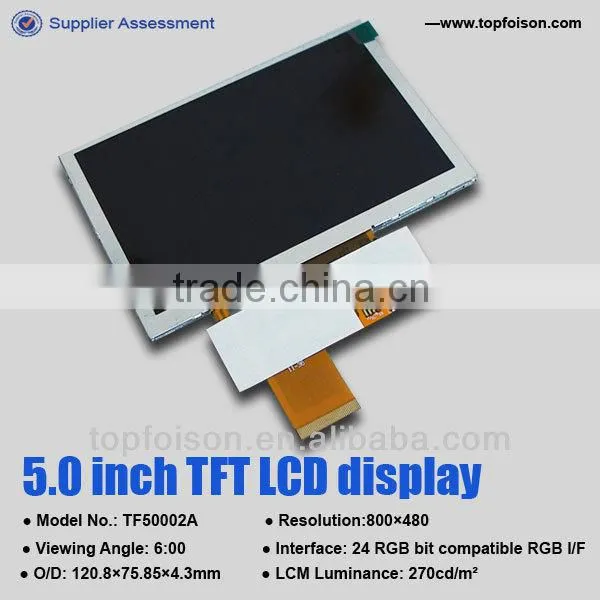

800*480 5.0inch Tft Lcd Module Wih Touch Panel

Name: 800*480 5.0inch Tft Lcd Module Wih Touch Panel
Brand: Topfoison
SKU: 119959367
Availability: InStock

US$ 12 - 25 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Topfoison

Model Number:

TF50002C

Shenzhen Topfoison Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

EXW

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Topfoison

Model Number TF50002C

Type TFT

Specifications

1-Item:5.0 inch tft lcd module
2-Resolution:800*480
3-Inserting Mode:Plug-in Type
4-Viewing Angle: 6 O'clock

1.Essential Specification

Item	*5.0 inch tft lcd module with 800480 and high luminance-TF50002C**
Resolution:	480*272
Inserting Mode:	Plug-in Type
Viewing Angle:	6:00
Interface:	24 Bit compatible RGB I/F
Outline Dimension:	120.8mm(W)75.85mm(H)4.3mm(D)
Active Area:	108.0mm(W)*64.80mm(H)
Driver IC:	------
PIN Nos.:	40
LED Connect Mode:	12 LEDs in series
Operating Voltage	-0.3~4.6V
Operating temperature	-20~70°C
Storage temperature	-30~80°C
Backlight Luminance:	3500 CD/M2
LCM Luminance:	330 CD/M2
LCM Brightness Uniformity	80

2.Product Pictures

3.Factory Show

4.Product Introduction

(3)Customization Items for TFT LCD Display
Size	Resolution
1.44"	*128160**
1.5"	*128128 round type**
2.0"	*220176,240320,320240**
2.2"	*176220,220176,240320,320240*
2.4"	*320240**
2.6"	*240320,320240,240400**
2.8"	*240320,320240,240400**
3.0"	*240320**
3.2"	*240320,240400,320480,480800 IPS full angle*
3.5"	*480800,480320,320480 full angle**
4.3"	*480272 high luminance**
5.0"	*800480 high luminance**

5.Main Application

Product	Applications
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.

6.Our Advantages

1	FOG automatical device can ensure the capacity of 6000,000 per month.
2	MOQ can be 100pcs, lead time of standard products is 20 days.
3	Reliability test and full examination to ensure the high quality of the display.
4	OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
5	Strictly ISO quality management system.
6	Mature and Professional R&D and after service.
7	Various cooperation experience with big brands.

7.General Business Clauses

1	MOQ:	1pcs
2	L/T:	Samples in stocks,2-4 weeks for mass production
3	Trade Terms :	EXW
4	Payment:	100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production
5	Warranty:	12 months
6	Package:	Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
