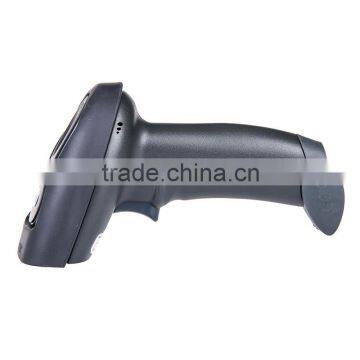

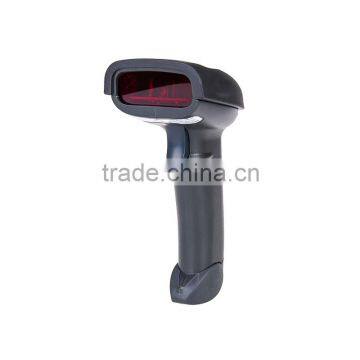

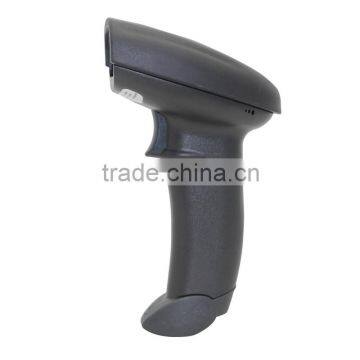

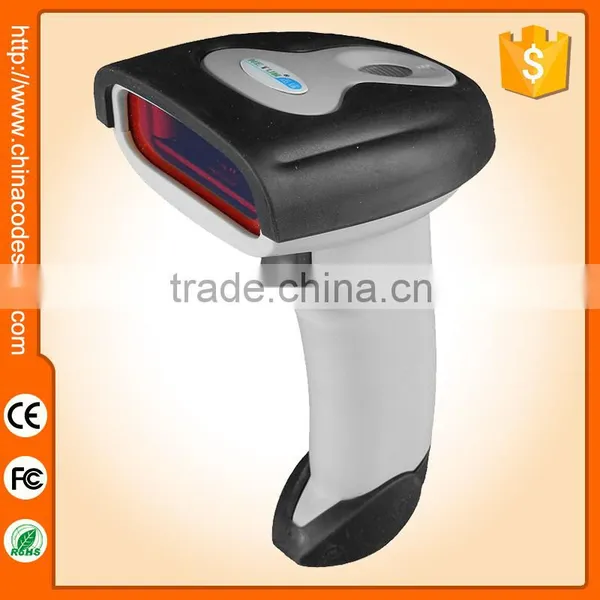

NT-2016 Auto Sense High Resoluton 1D Wired Handheld Barcode Scanner With USB Interface

NT-2016 AutoSense High Resolution 1D Wired handheld barcode scanner with USB interface

Features

1. Unique trigger design, very comfortable operation sense.

2. Fast and accurate in reading all 1D codes.

3. Super scanning and decoding ability, can read incomplete and fuzzy codes.

4. Service life of button reaches up to 8 million times.

5. Full quakeproof, dustproof, anti-knock design and EMI shielding; Suitable for each kind of industrial environment

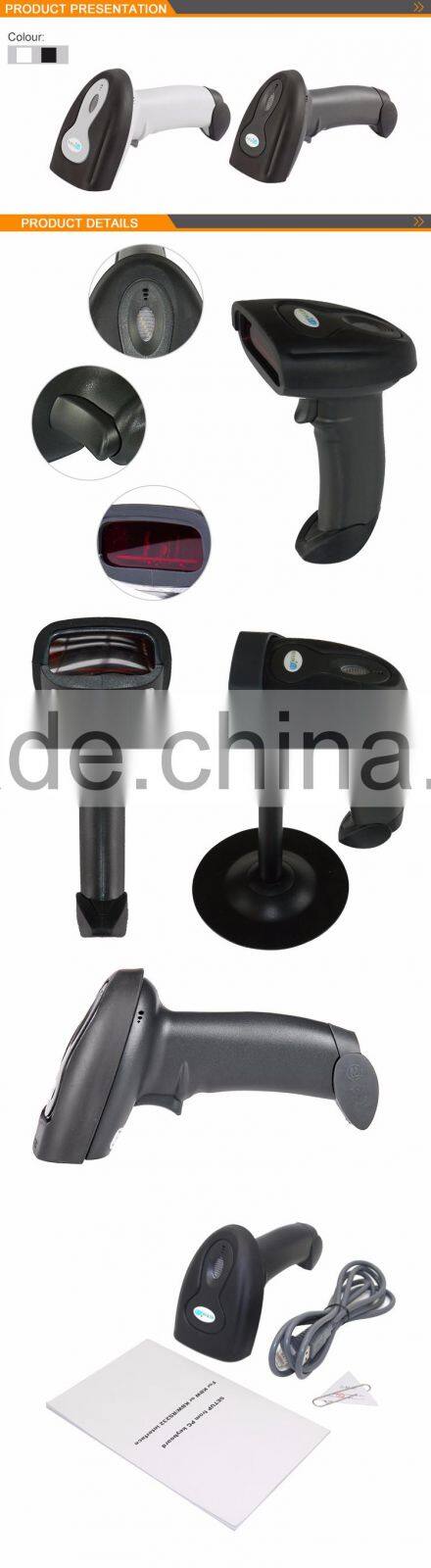

6. 360°all-directional adjustable stainless steel stand(Standard)

Specifications

Type of illuminant

650nnm laser(visible)

Operation

Manual/Automatical

Depth of scan field

10-800mm

Decode speed

200 times/second

Precision

0.076mm (3 mil)

Decode error rate

Less than 1/8 million

Supported interfaces

USB (standard), RS232 (optional),PS/2 (optional)

Scan angle

Yaw(Skew)45°& Pitch60°

Decode Capability

Code 39,Full ASC II,Code bar,Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,Code 93,Code 128,Code 32,Standard code 39,EAN 128,MSI,EAN 8&13,UPCA&E,Plessey,Databar14,TELEPE

Eelectric

Power voltage

DC 5V

Working current

120mA

Static current

10mA

Physical

Exterior dimension

L*W*H (mm): 170*85*65

Materials

Plastic

Weight

235g

Environmetal

Operating humidity

5%-85%

Storage humidity

5%-85%

Operating temperature

-20°C-45°C

Storage temperature

-20°C-45°C

Safety performance

ROHS  class 2 laser product, FCC class B and CE

scanner × 1

cable × 1

User's guide × 1

Packing details

scanner

Size(L*W*H)

170mm*100mm*70mm

Weight

235g;

Without Stand

With Stand

Inner Box

1pc/box; 190mm × 115mm ×85mm; 320g

1pc/box; 210mm × 130mm ×100mm; 520g

Carton

50 sets/ctn;33kg/ctn;

50 sets/ctn; 33kg/ctn;

600mm×450mm×420mm

880mm×450mm× 420mm

70 sets/ctn; 33kg/ctn;

880mm×450mm× 420mm

20FT Container

10500pcs; 150ctns

11250pcs; 225ctns

7500pcs; 150ctns

40FT Container

23800pcs; 325ctns

25000pcs; 500ctns

16250pcs; 325ctns
