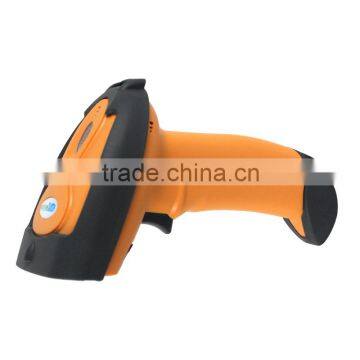

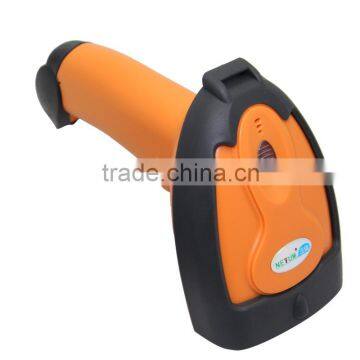

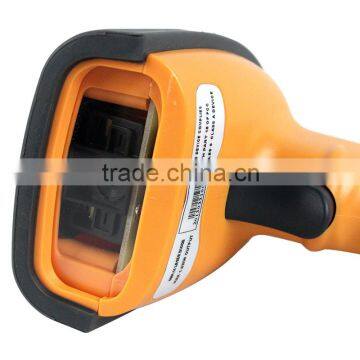

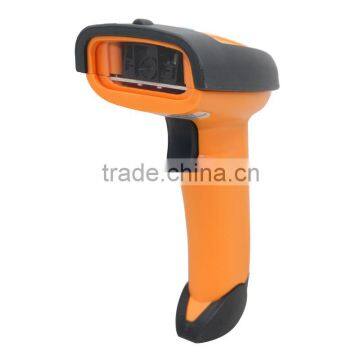

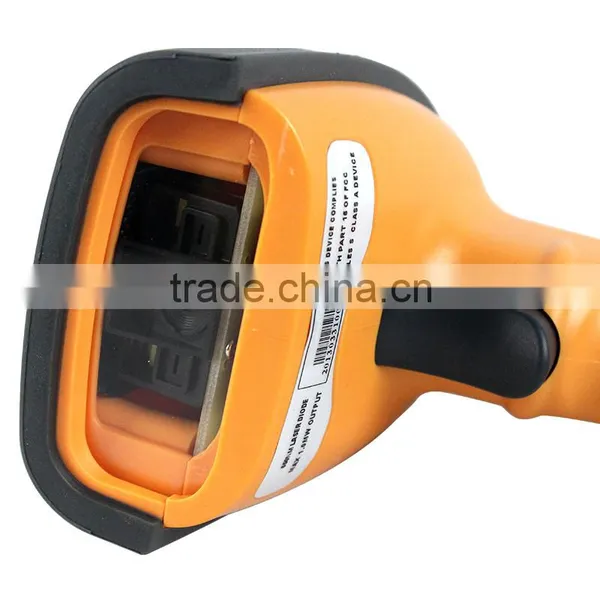

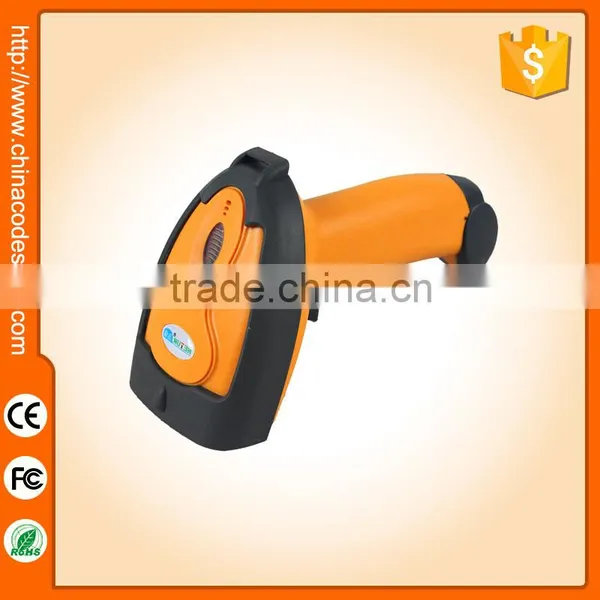

NT-8099 handheld 2D QR bar code scan barcode scanner from china manufacturer
Features:
1. New design concept,make operation more comfortable.
2. Applying CMOS image technology, easy to scan.
3. Multiple dacode ability, fast to scan 1D/2D barcode and PDF417.
4. Best shape design, anti-knock and quakeproof.
5. Mulitple interface, support USB,RS232 port.
Parameters:
1 Physical Characteristics
1.1 Dimensions: 51mm x 30.61mm(width) x 21mm(height)
1.2 Weight:
1.3 Voltage and Current: 5 +/-10%VDC @ 350 mA
2 Performance Characteristics
2.1 Light Source: Aiming: 528 nm LED; illumination: 630 nm LED
2.2 Field of View: 34° V x 46° H(Vertical x Horizontal)
2.3 Roll / Pitch / Yaw: 360°, ±65°, ±60°
2.4 Scan Performance:
3 Symbology Decode Capability
3.1 1-D: UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32
3.2 PDF417 (and Variants): PDF417, microPDF417 and composite codes
3.3 Postal: U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch
3.4 2-D: MaxiCode, DataMatrix (ECC 200), and QR Code
3.5 Print Contrast: 25% minimum reflectance
3.6 Motion Tolerances: Horizontal velocity: 5 in. (12.7 cm) per second
3.7 Interfaces Supported: IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces.
4 Imaging Characteristics
4.1 Image (Pixels): 0.35 Megapixel 752 pixels H x 480 pixels V
4.2 Graphics Format Support: Images can be exported as Bitmap, Jpeg, and Tiff
4.3 Image Transfer Speed: USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate
4.4 Image Transfer Time: Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb
5 User Environment
5.1 Operating Temperature: 32° to 122° F / 0° to 50° C
5.2 Storage Temperature: -40° to 158° F / -40° to 70° C
5.3 Humidity: 5% to 95%, non-condensing
5.4 Drop/Shock Specifications: Withstands 2000g to concrete
5.5 Ambient Light Immunity: Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.
