Home > Products > 12mm film faced plywood > 12mm brown film faced plywood
12mm brown film faced plywood
- 3000 Cubic Meter / Cubic Meters per Month
- Qingdao or Lianyungang port China
- T/T D/P D/A Credit Card
- phenolic WBP glue(72 hours boiled water test) film faced plywood/construction plywood/marine plywood/form work panels
- Blockboard Laminated Wood Board Film Faced Plywood Melamine Block Board for Cabinet Door Panel the Faced Board of Furniture
- poplar/hardwood/tung/combined core block board
- BLOCK BOARD from Linyi manufactory
- White Polyester Plywood,Polyboard Plywood
- polyester overlay plywood factory
Product Details
Place of Origin: | Shandong, China | Brand Name: | JIALEPLEX | Model Number: | 1220*2440mm |
Usage: | Outdoor | Grade: | First-Class | Main Material: | Other, eucalyptus |
Formaldehyde Emission Standards: | E2 | Plywood Type: | 9-Ply Boards |
Product Description

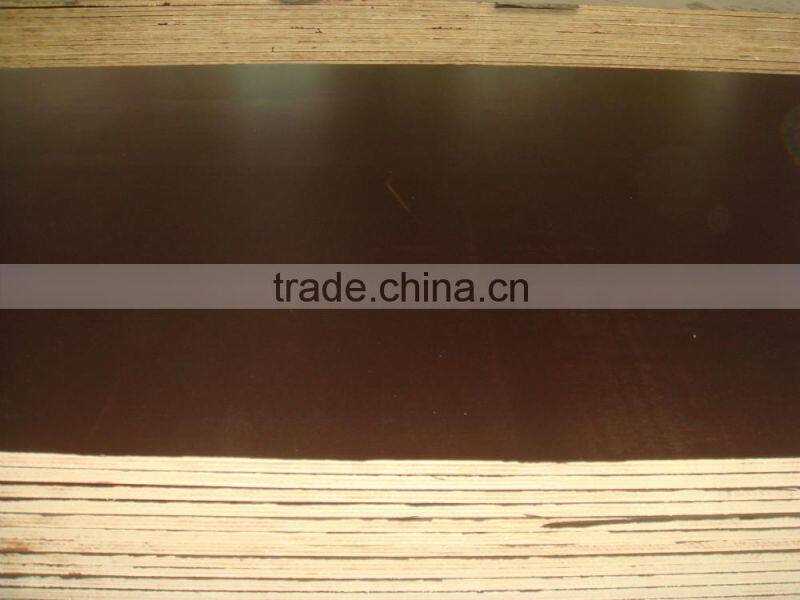

12mm brown film faced plywood
1. Technical Data
data | specification |
size | 1220mmx2440mm |
thickness | different thickness available, from 12mm to 21mm |
core | poplar, birch, hardwood, pine, eucalyptus,combined or requested by client |
glue | mr/melamine/wbp phenolic glue |
film | black/brown/red chinese film or dynea film |
grade | A/A grade or requested |

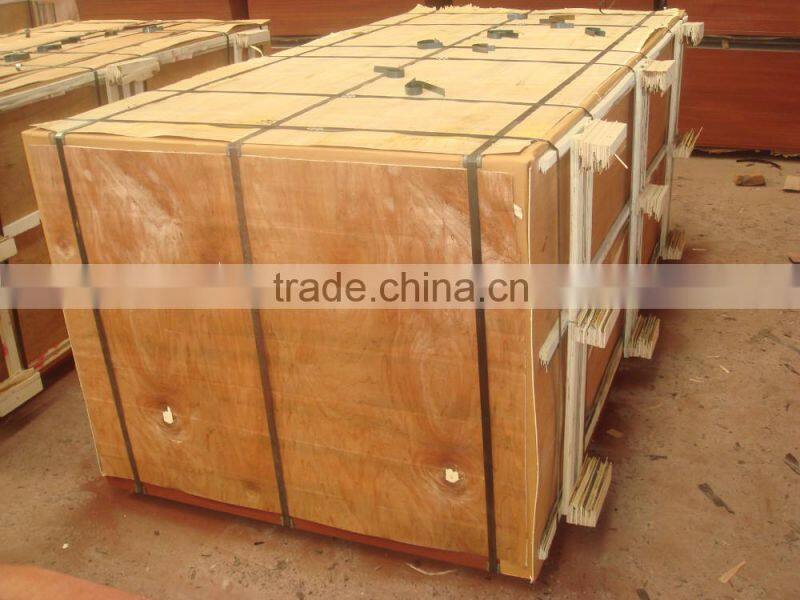

packing | inner with plastic bag, outerside with 3mm plywood/carton board, then fasten with 3x8 steel strip, then packed with pallets. |
application | concrete formwork for construction |
2. specification
thickness(mm) | layers | standard size | large size | ||
min. (mm) | max.(mm) | min.(mm) | max.(mm) | ||
9 | 7 | 8.5 | 9.5 | 8.2 | 9.5 |
12 | 8 | 11.5 | 12.5 | 11.2 | 12.5 |
15 | 9-10 | 14.5 | 15.5 | 14.2 | 15.5 |
18 | 11 | 17.5 | 18.5 | 17.2 | 18.5 |
21 | 13 | 20.2 | 21.5 | 20.2 | 21.5 |
3. moisture (10-12%) & density:
products | weight (kgs/m3) |
birch | about 700kgs/m3 |
combined | 500-700kgs/m3 |
poplar | about 550kgs/m3 |
4. conserve and maintain:
storage:
always clean and repair the formwork panels before storage, the formwork should then be stacked off the ground on level supports and under cover. framed formwork panels should be stacked alternately face and back to back to avoid face damage by bolts etc. if panels are wet, do not allow them to dry too rapidly.
sealing of edges:
phenolic film faced plywood edges are fully sealed by the factory and it is the most important that all edges remain sealed. to obtain full value from a phenolic film faced plywood sheet any recut edges should sealed as soon as possible with water proof paint sealing of holes.
any hole made in film faced formwork panels should also be sealed to prevent water entering. if water does enter it may cause swelling around the holes.
cleaning and repair:
to obtain full life, cleaning should be carried out immediately after each use. phenolic film faced plywood may be wiped with release agent or cleaned with water and stiffbrush. it may be necessary to use a hard wood scraper but care should be taken not to damage the plywood face. do no use a wire brush or sharp metal scraper to dislodge hardened concrete.
