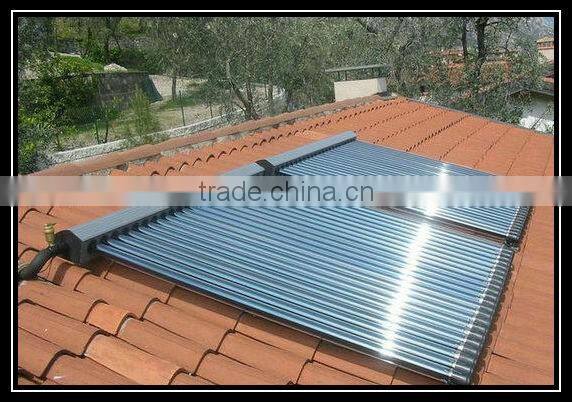

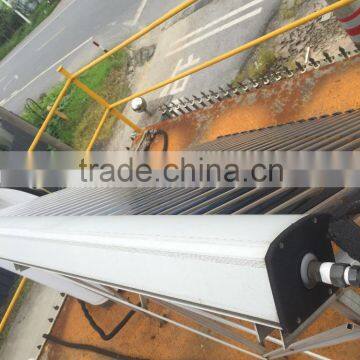

Copper Heat Pipe Solar Collector

 High Quality Heat Pipe Solar Collector

Characteristics

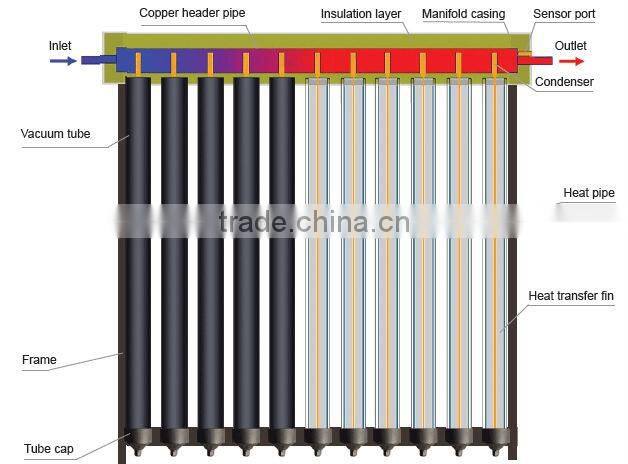

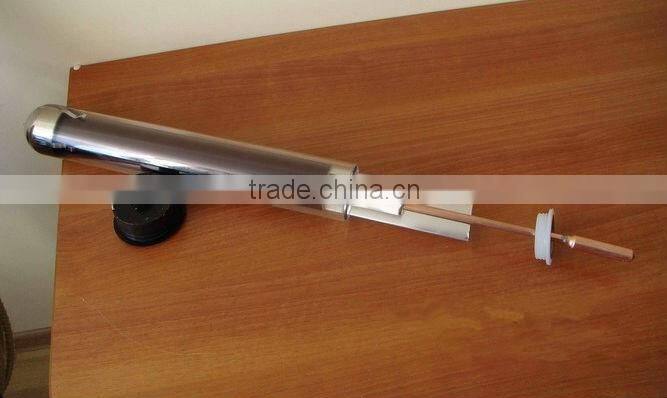

1.All the pipeline is made of red copper and conducted by heat transfer medium liquid.With the heat pipe in the vacuum tube,so no water will flow in the vacuum tube.

2.The manifold uses aluminum alloy for exterior,red copper for interior,also with fashion design.

3.Withstand high pressure when it is working.

4.It can be combined arbitrarily to meet the demand of large water consumption,and also could be combined with existing pipeline.

5.Each tube can work alone,so the solar colletcor can work even one tube is broken and easy to change if necessary.

Technical Parameters

Manifold(interior)   red copper
Manifold(exterior)   aluminum alloy

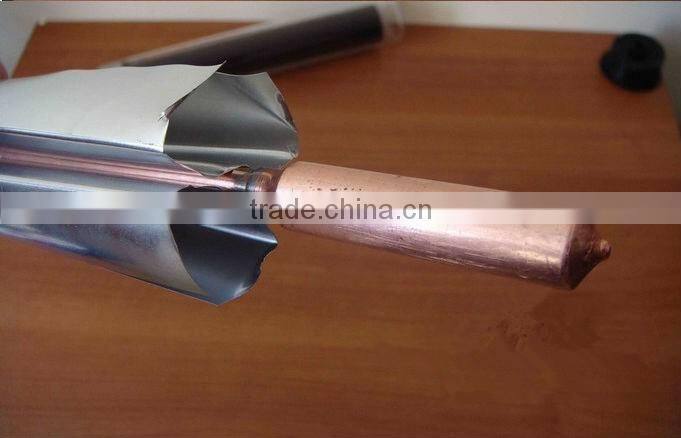

Aluminium fin   1600 mm full length
Heat insulation layer Eco-friendly rockwool 50mm
Vacuum tube  58*1800mm
SS-CU-AIN/ALN coating
Bracket   Aluminum alloy 1800mm
20/25/38/45/50 degree
Hail resistance  25mm
Max pressure  6 bar
Heat pipe  Anti-freezing > -35 °C
Daily efficiency  ≥55%

Parameter Table-1

Remark

1. Manifold Connections(inch)  3/4
2. Max.service temperature  95°C
3. Max.stagnation temperature  200.3°C
4. Flow range recommendation(50-150L/m2h)
