Help CenterKZ7B Pluggable Terminal Connectors 3.81mm
Related Products
Specifications
KZ7B pluggable terminal connectors1.ROHS,ISO9001:2008, VDE,CE,S,
2.100% test before delivery
3.fast deliver
4.have 12 year

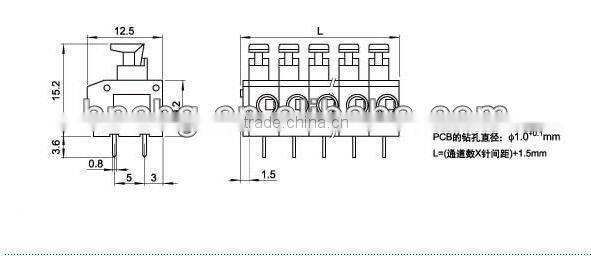

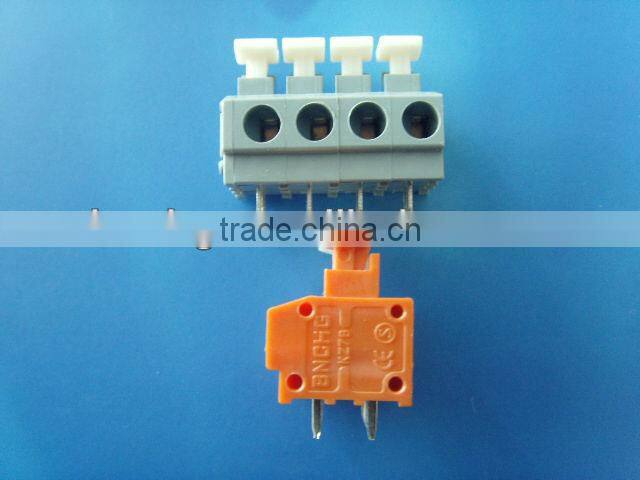

KZ7B pluggable terminal connectors 3.81mm
Property
| (Pitch):3.81mm |
| (Rated voltage): 300V |
| (Rated Current): 10A |
| (Wire Range): 20#-16# AWG, 1.5mm2 |
| (Skive Wire Length) :9-10mm |
| (Temperature Range): -40°C-+105°C |
| (Insulator Material): PA66,UL94V-0 |
| (Pin Material): 0.4 (Phos.Copper) |
