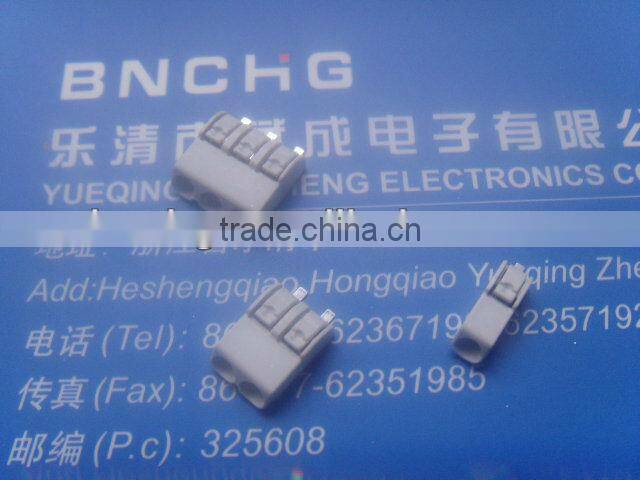

Cheap 2060 series LED light Wago pcb connector SMD type connector
led lighting lamp connectors
led strip connector
led strip connectors
Applications
- Light engines
- Drivers
- Controls
- Outdoor & indoor
- Street lighting
- LED modules
Specification
| Techinical data | 1 pole | 2-3 pole |
| Pin spacing | 4mm/0.157in | 4mm/0.157in |
| Rating per | IEC/EN 60664-1 | IEC/EN 60664-1 |
| Overvoltage catagory | ||| ||| || | ||| ||| || |
| Pollution Degree | 3 2 2 | 3 2 2 |
| Rate voltage | 63v 160v 320v | 63v 160v 320v |
| Rate surge voltage | 2.5KV 2.5KV 2.5KV | 2.5KV 2.5KV 2.5KV |
| Nominal current | 9A 9A 9A | 9A 9A 9A |
| Connection technology | CAGE CLAMP S | |
| Conductor size: solid | 0.20-0.75mm2 | |
| Conductor size: fine stranded | 0.20-0.75mm2 | |
| AWG | 24-18 | |
| Strip length | 6-7mm/0.24-0.28 in | |
| Conductor entry angle | 0°to PCB |
| Material Gruop | 1 | |
| Temparature stability | "-30°C° to +105°C | |
| Contact Plating | Tin-plated |
2060 led lamp connector
2060 lighting connectors led
Flush mounted ceiling lamp connectors
ADLed lights connectors flexible strip light led connector
Advantages (comparing with 2060 series)
1.detached button, it will never appear the breakages when pressing repeatedly.
2. the appearance will not be deformed (it wont fade) when through high temperature SMT waving-soldering.
3.the clamp contact is much more closely to the plastic parts,it will not be easy to fall off

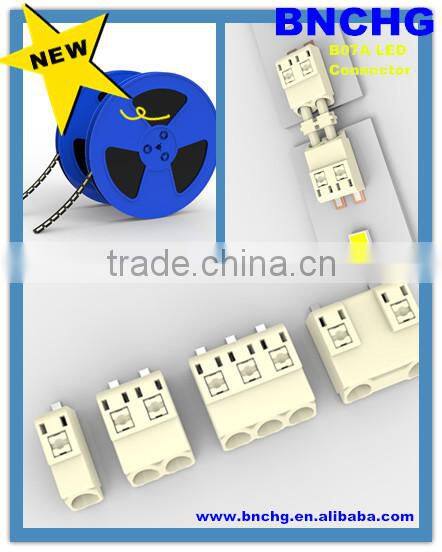

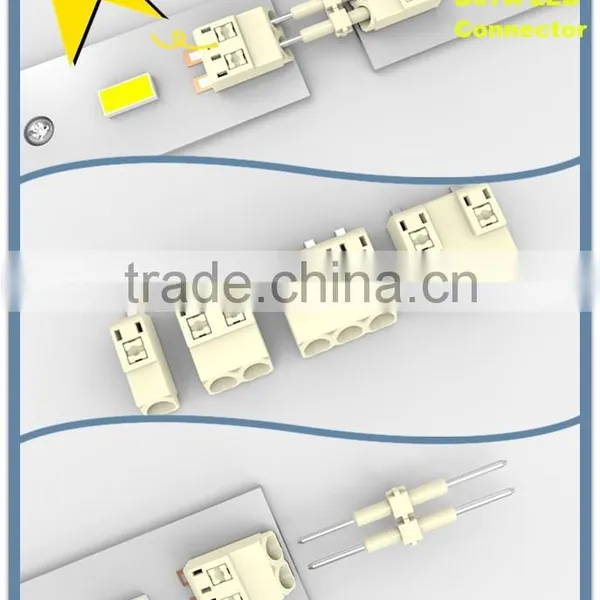

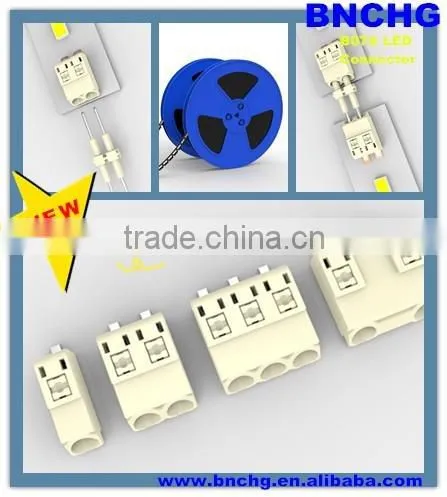

NEW TYPES

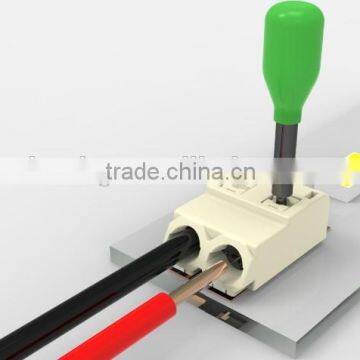

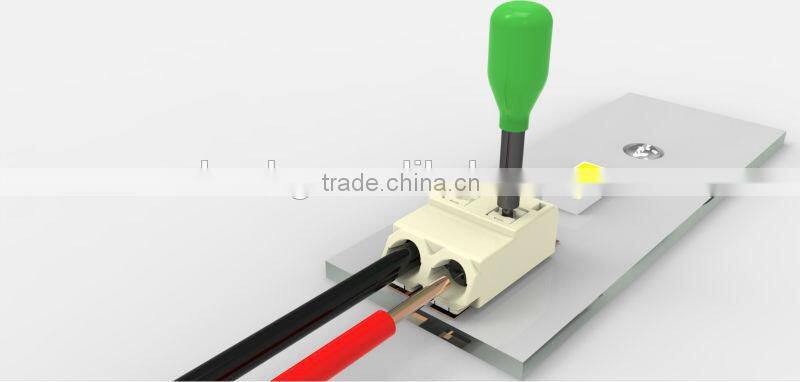

HOW TO USE
2060 series:
