Specifications
Street Sweeping machine YHD211,KUBOTA diesel Engine
2,Full Hydraulic Control
3,240L standard dustbin
4,ISO CE

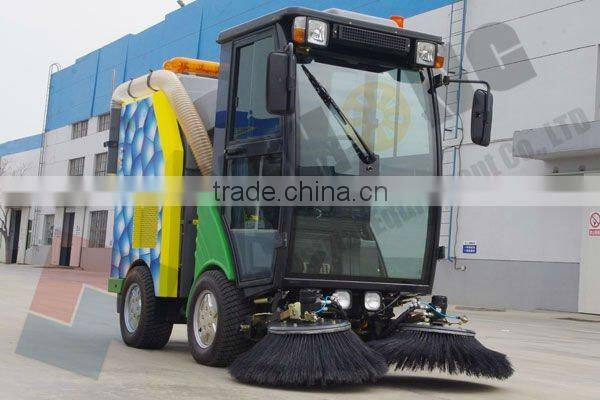

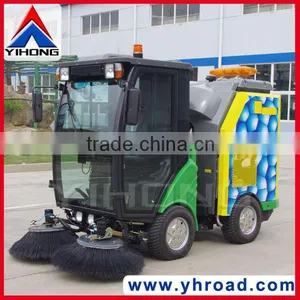

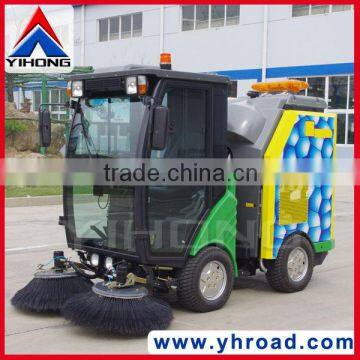

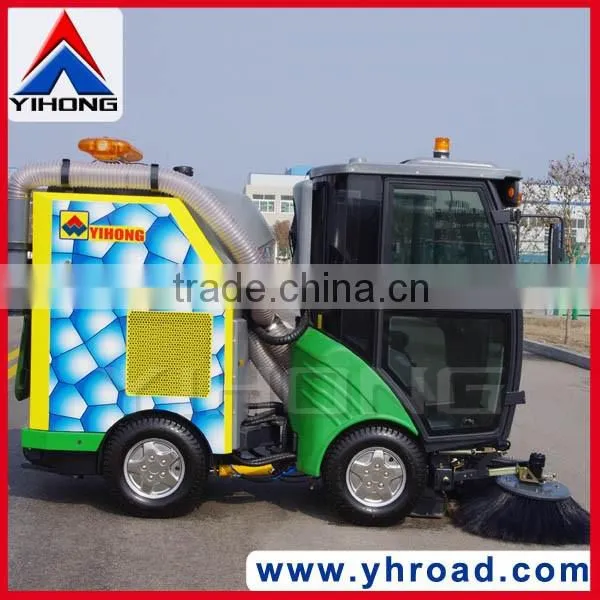

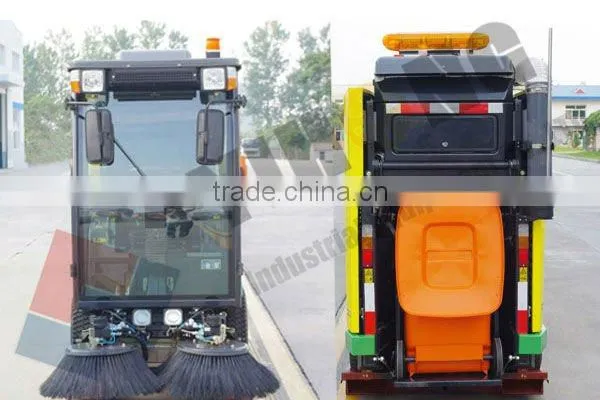

YHD21 Street Sweeping machine
YHD21 Street Sweeping machine works by picking up gravel, rind, scrap of paper, cigarette end, kernel, plastic bag, stone, brick, grains of sand, dust, and etc. It works by picking up gravel, rind, scrap of paper, cigarette end, kernel, plastic bag, stone, brick, grains of sand, dust, and etc..
YHD21 Street Sweeping machine is one compact integral structure road sweeping machine with special chassis. The road sweeping machine’s technology is leading in same products and with nice appearance & flexible operation. The total operation power is output by one KUBOTA diesel engine, moreover, the whole operations are controlled by hydraulic transmission.
YHD21 Street Sweeping machine Features:
- Japan Kubota single hydraulic transmission engine, powerful and stable
- 240L standard garbage bin can stock garbage, and it is very convenient to replace and clean for the garbage bin.
- Hinge turning structure be fitted with the Road Sweeping Machine can make the turning radius much smaller and sweep the twisty and narrow place.
- Suction system structure adopts circulation blow back combine with filter, it can sweep with or without water.
- The Road Sweeping Machine has 140L water tank and electric diaphragm pump, and there is sprinkler nozzle on the sweeping brush. You can turn on or turn off the water pump to spray according the road conditions. Moreover, the quantity of spray water is adjustable.
- The drive mode adopts hydrostatic infinitely variable speed transmission system, turning operation adopts complete hydraulic redirector, the operation of sweep is easy and flexible.
- The Road Sweeping Machine is equipped with air condition and heating machine, the operator can enjoy the comfortable work environment in summer and winter.
- There are panoramic glasses in cab, the field of vision is very open. The Road Sweeping Machine also equipped with color LED monitor which is convenient to check the status when sweep and reverse.
- All the glass of Cab is covered with high quality solar film, to ensure the cooling effect of air-conditioner.
- The Engine Inlet of the Road Sweeping Machine adopts overhead cyclone air pre-filter, reducing the air pollution, prolonging the using life of filter element.
- To clean ash of suction filter system is very fast, it need not maintain specially.
- The water tank, hydraulic oil tank, diesel tank of the Road Sweeping Machine all adopt Rotational Molding, with less weight, no need anticorrosive treatment.
- The Road Sweeping Machine is equipped with 150L plastic water tank and minisize electric water pump which can spray and dedust.
- Most of the Abdeckblech (outer panel) and Decoration Parts of this Road Sweeping Machine adopt Blister Process, with nice appearance and reducing the total weight.
- The main components are imported from international well-known companies.
YHD21 Road Street Sweeping machine Technical Parameters:
Model | YHD21 Street Sweeping machine |
Engine Model | KUBOTA D1105 Diesel Engine |
Engine Power | 18.1kW/2800r/min |
Max Running Speed | 16km/h |
Max Sweeping Width | 1.8m |
Sweeping Speed | 0~10km/h |
Refuse Container Capacity | 240L |
Water Tank Capacity | 140L |
Max GVW | 1800kg |
Exterior Dimensions L×W×H | 3250 x 1130 x 2130mm |
MAIN BUYING PROCEDURES:
Enquiry: contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion: specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Proforma invoice offered to double confirm the order for both-side records.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
Support & re-ordering.
TRADE TERMS:
Payment: 30% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, ESCROW, L/C.
Production Lead Time: 10 - 15 DAYS AFTER DEPOSIT PAYMENT.
Shipping Methods: OCEAN FREIGHT.
FOB Shipping Port: QINGDAO, MAINLAND CHINA.
If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
OUR SERVICE:
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Working time: 8:30am - 6:00pm, Monday to Friday (UTC+8).
OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
.
