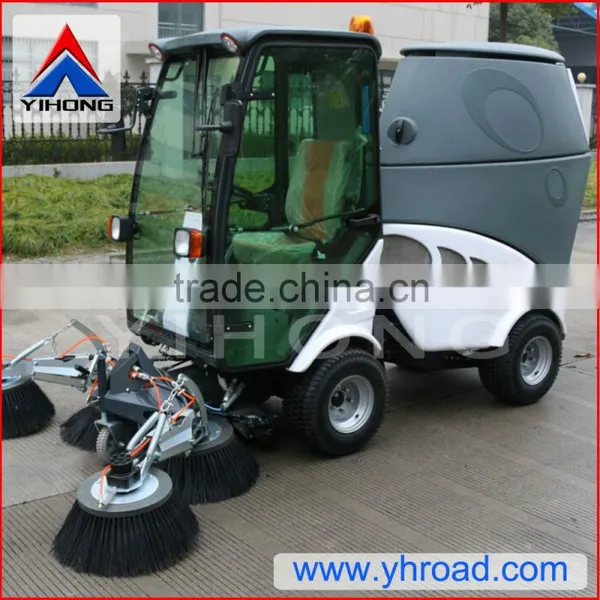

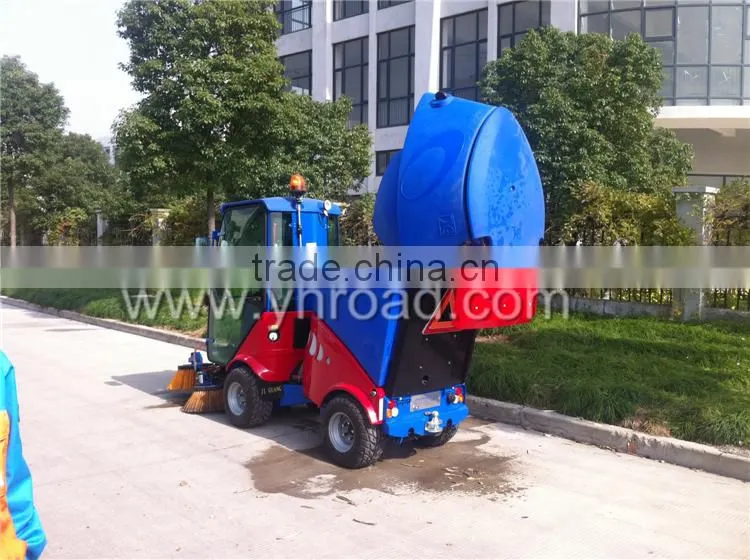

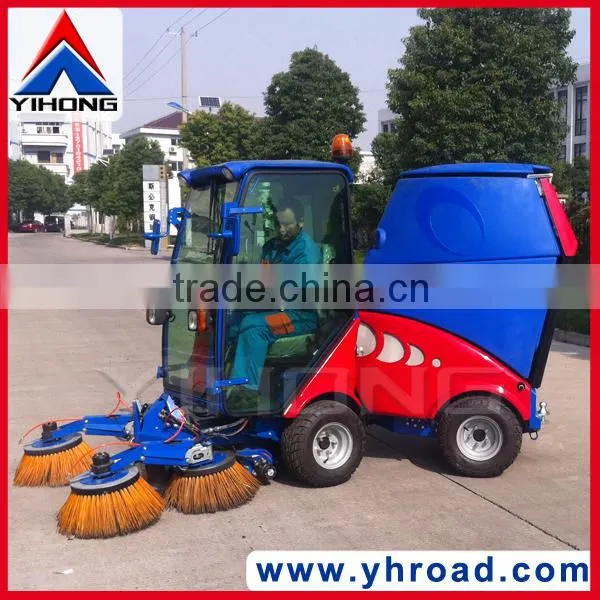

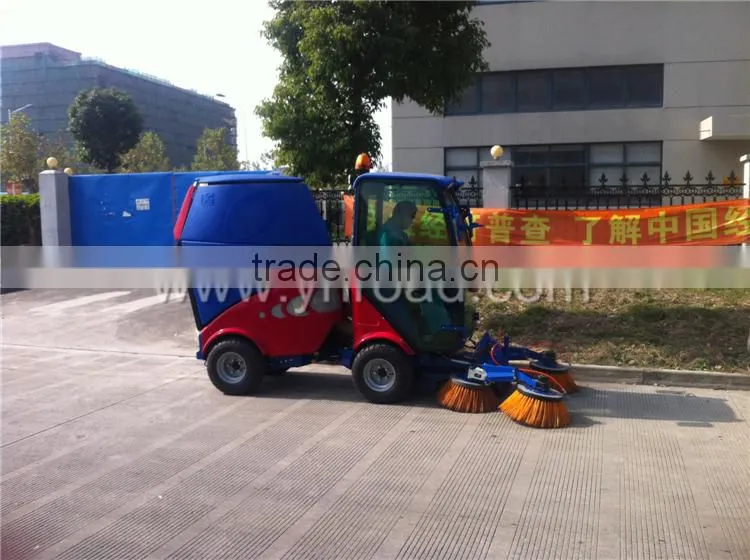

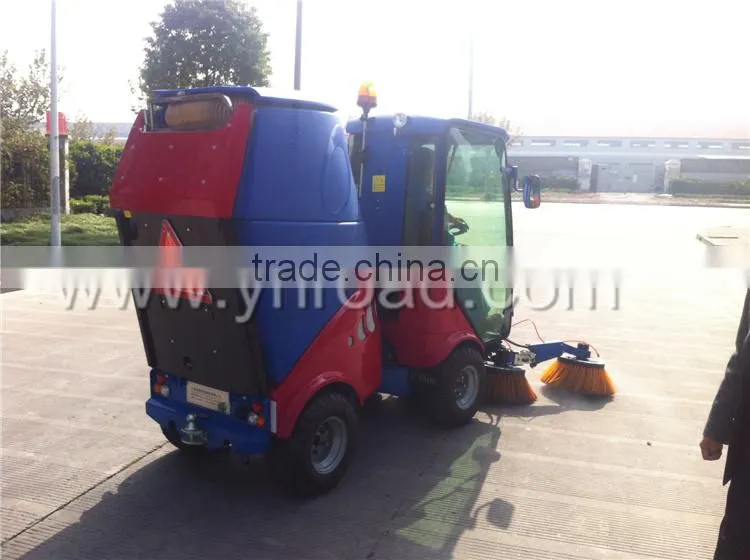

Help CenterYHD22 Diesel Street Sweeper
Related Products

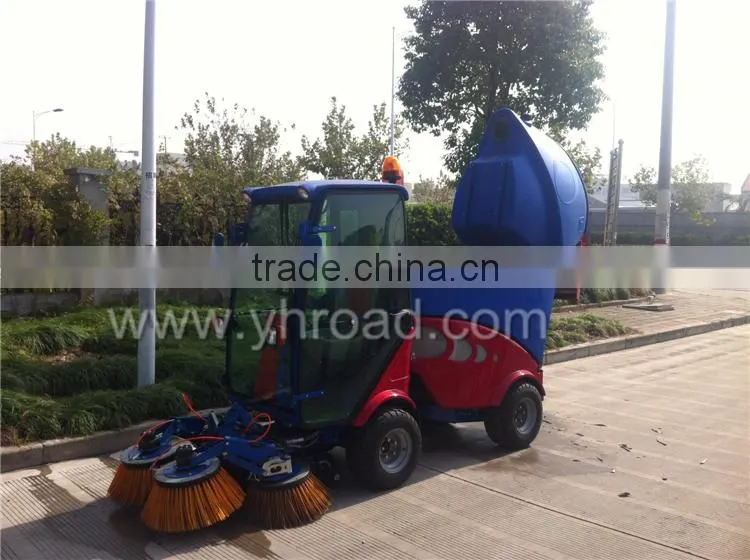

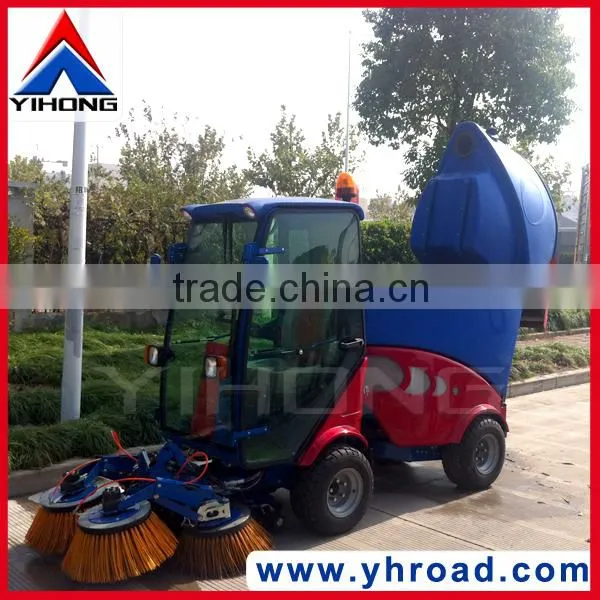

YHD22 Street Sweeper :
This diesel street sweeper is a outdoor multifunctional special equipment that equipped with a full set of special attachments, outdoor work can be completed without interruption throughout the year, spring and autumn for cleaning and vacuuming, summer used to mow the lawn, pruning, winter can be used to sweepsnow, sprinkle salt,etc.At the front of the vehicle is equipped with a quick plugin, put on different attachments have different functions, domestic initiative and fill the gaps.
This diesel street sweeper is an ergonomic designed outdoor multifunctional special equipment, large spacious cab, surrounded by wide vision, the entrance position low and wide, the wheel and seat areadjustable to accommodate different operators. Seat with suspension device, very comfortable. Joystick and all operating control accessories are placed in the best position to facilitate the operator to operate, and provide a safe and comfortable operating environment.
YHD22 Diesel Street Sweeper Features:

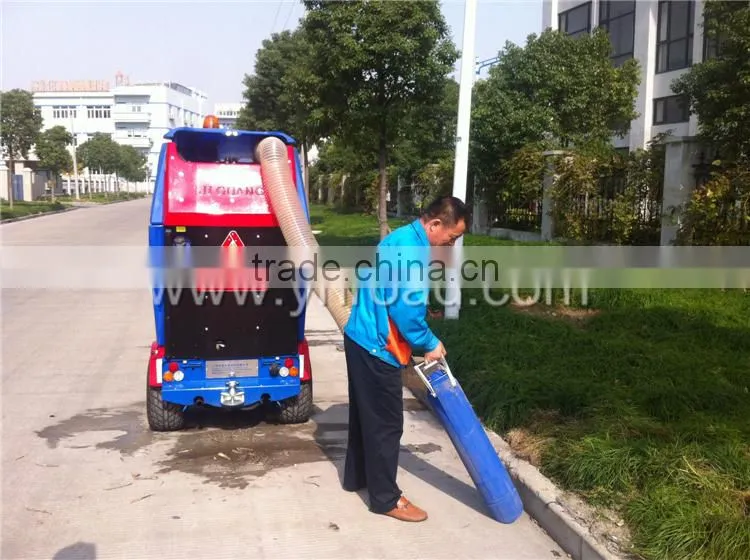

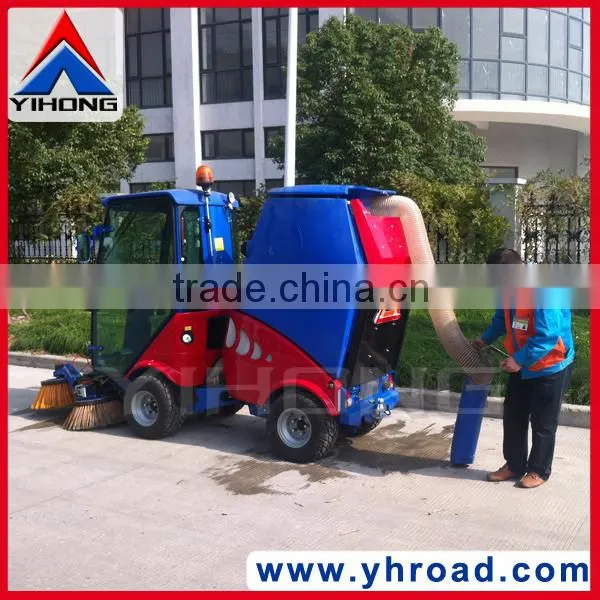

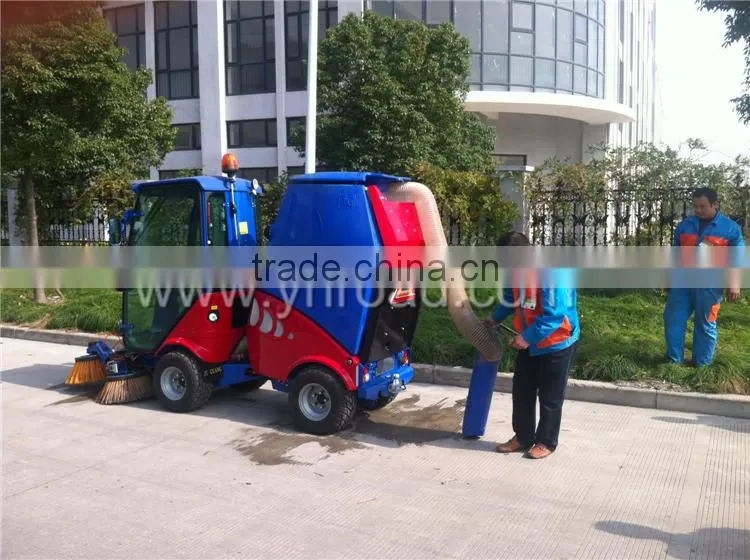

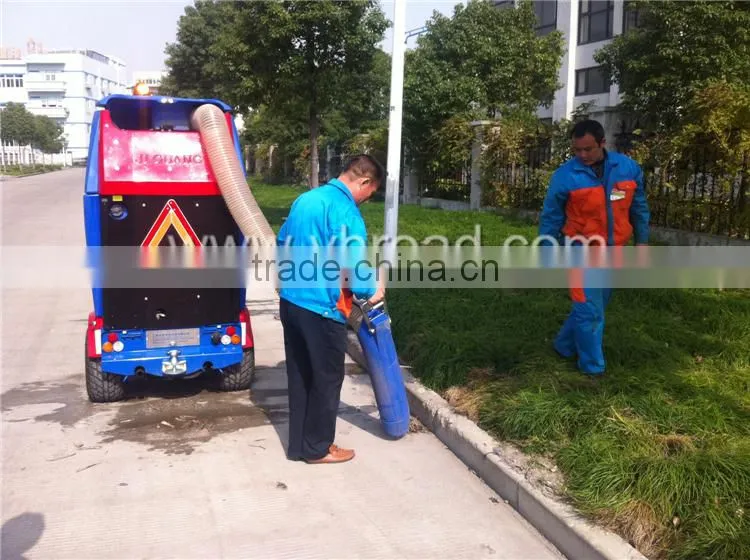

- Imported engines or domestic engines for customers to select, the hydraulic system of the machine which are using the mostadvanced technology from abroad, advanced performance, flexible operation. The sweeper is equipped with a unique hand-held suction hose, to clean more complex jobs such as the green belt, turns, dead ends and the area which the front brushes could not reach. The main accessories such as pumps, motors, electrical parts are imported parts, reliable quality, superior performance and leading technology.
- Attachments can be changed quickly and easily. The attachment system has a single lock and release lever – one click and the attachment is on. In less than a minute. Hoses and couplings are hidden (thus well-protected) and the hydraulics and water supply, power and vacuum hose connect automatically.
- The Road Sweeper is articulated, so it can keep close to edges and turn sharp corners.
- The Road Sweeper has strong traction. With a 22.8 kw power engine, four-wheel drive and excellent weight distribution, combined with a low point of gravity and a large axle base, the outdoor utility machine is safe and reliable – no matter where or how much work it is doing. It is stable on all terrains.

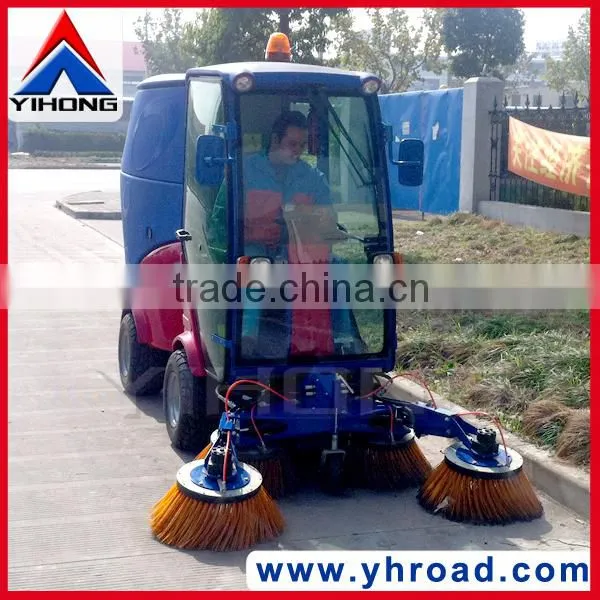

- The YHD22 Road Sweeper is an ergonomically-designed outdoor utility machine. The cab is spacious, with visibility on all sides, and the entry-opening is low and wide. The wheel and seat are fully-adjustable to suit the operator. The seat has suspension (with optional pneumatic suspension) and is very comfortable to sit in. All the operating controls – including the joystick for controlling the attachments – are positioned optimally for the operator. Air-conditioning is available as an optional feature.
APPLICATIONS:
- Road Sweeping
- Factory daily cleaning
- Footpath, shopping mall cleaning
- Parking lots cleaning
- College, school cleaing
- etc.
YHD22 Diesel Street Sweeper Technical Parameters:
| Model | YHD22 Diesel Street Sweeper |
| Engine Model | Yanmar 3GNDA |
| Rated engine power | 22.8 kw |
| Wheelbase | 1350 mm |
| Kerb mass | 1200 kg |
| Max total mass | 1800 kg |
| Garbage bin volume | 550 L |
| Water tank volume | 100 L |
| Sweeping speed | 10 km/h |
| Max sweeping width | 2200 mm |
| Max speed | 18 km/h |
| Dimension | 2700*1100*2100 mm |
OVERVIEW:
CERTIFICATE:
MAIN BUYING PROCEDURES:
- Enquiry: contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
- Discussion: specify the items you desire, confirm specification; OEM/ODM consultation.
- Quotation: Prices offered and accepted.
- Place order as per contract or discussion.
- Proforma invoice offered to double confirm the order for both-side records.
- Payment settled.
- Order completed under our arrangement.
- Goods shipped as per contracted term.
- Goods arrive at local port or warehouse, depending on contracted term.
- Support & re-ordering.
TRADE TERMS:
- Payment: 30% T/T DEPOSIT PAYMENT IN ADVANCE, BALANCE AGAINST COPY OF B/L, WESTERN UNION, ESCROW, L/C.
- Production Lead Time: 5 - 7 DAYS AFTER DEPOSIT PAYMENT.
- Shipping Methods: OCEAN FREIGHT.
- FOB Shipping Port: QINGDAO, MAINLAND CHINA.
- If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
OUR SERVICE:
- Your inquiry related to our product & price will be replied within 24hours.
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- Working time: 8:30am - 6:00pm, Monday to Friday (UTC+8).
- OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
- Your business relationship with us will be confidential to any third party.
- Good after-sale service offered, please get back if you got question.
SUGGESTION:
Please kindly check the packages after you receive the goods, if you got wrong products/ quality problem/ short quantity, please get back to us as priority. Please note that you need to send us pictures of the defective items concerning this, and we will consider to replace or refund accordingly.
WE ALSO SUPPLY:
For more details about Road Sweeping Machine, please feel free to contact us. We will be more than happy to help in anyway we can.
