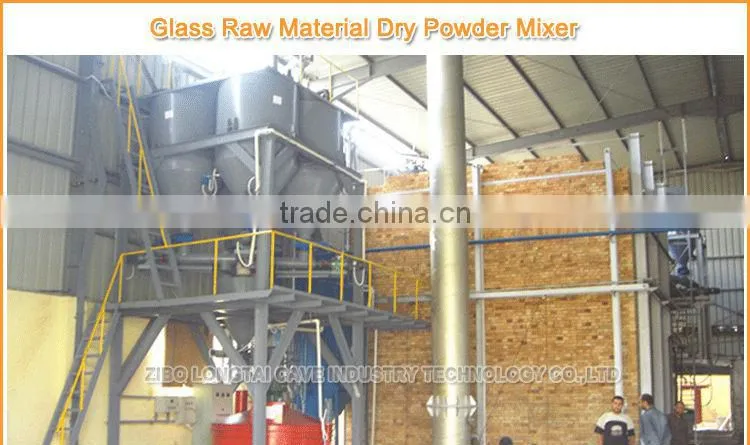

Help CenterGlass Raw Material Dry Powder Mixer Machine
Related Products
-
High Quality Automic Feeding Screw Conveyor For Powder ConveyingNegotiableMOQ: 1 Piece -
Natural Gas And LPG Burner For Industrial FurnaceNegotiableMOQ: 1 Piece
-
300 To 1000L Glass Raw Material Dry Powder MixerUS$ 8,000 - 25,000MOQ: 1 Set
-
Air Reversing Device For Regenerator Of Horse-shoe Flame FurnaceNegotiableMOQ: 1 Set
-
Types Of Coal Gas Generator Parts For GasifierNegotiableMOQ: 1 Piece
Features:
1.Mixing is more homogeneous and loose;
2.Convenient for discharging;
3.Easy to clean;
4.High efficiency;
5.The equipment is not easy to wear.
Application:
Mixer is the necessary equipment for the production of ceramic frit, sodium silicate, and widely applied in glass industry, which is mainly used to mix powder materials to meet the demand for production.
Main technical data:
1.Granularity: powder material
2.Maximum volume: 750L
3.Turboprop rate: 29r/min
4.Opening angle of discharging: 1200
5. Power: 18.5KW
6.Reduction ratio:1:35
7. Plant reference size: 2130×2100×2591mm
8.Reference weight: 2350KG
Composition parts:
1. Discharging opening
2. Mixing tank
3. Turboprop
4. Lubricating Setting
5. Upper cover
6. Reducer
7. Discharging setting
Operation cycle description:
First, the turboprop is driven by the reducer over the mixer, then material should be added into the mixer after it’s running. Therefore, raw materials are mixed as uniform material in the mixer and then discharged through the opening. Then, the discharging opening is closed, and the operation cycle finishes.
