Help CenterInverter 380v Sticker
US$ 60 - 100
MOQ: 15 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
WM three phase welding machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zx7-160 Mma dc Inverter WelderUS$ 60 - 100MOQ: 15 Pieces -
Igbt Module Inverter Welding MachineUS$ 60 - 100MOQ: 15 Pieces
-
3phase Inverter With Wire FeederUS$ 60 - 100MOQ: 15 Pieces
-
Ceramic Cup for Tig WeldingUS$ 60 - 100MOQ: 15 Pieces
-
Frequency Inverter Single PhaseUS$ 60 - 100MOQ: 15 Pieces
Condition
New
Place of Origin
Guangdong, China
Brand Name
WM three phase welding machine
Model Number
ARC220 welding machine
Arc Current
10-220A inverter welding machine
Pulse Frequency
50/60hz
Pilot Arc Current
10-220A inverter welding machine
Rated Duty Cycle
60%
Motor Type
DC Motor
Dimensions
450*160*385mm
Usage
manufacturing of hardware,decorations,pipeline install,metalplates
Voltage
380V
Power(W)
7.2kva
Certification
CE and Rohs
Warranty
1 years
After-sales Service Provided
Engineers available to service machinery overseas

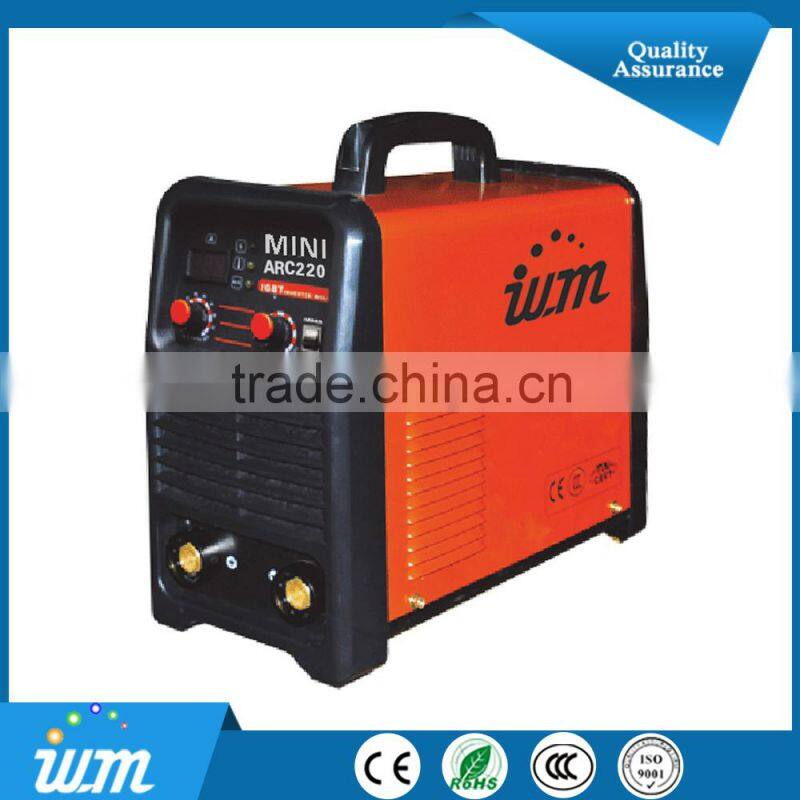

Specification: digital display three phase welding machine for stick welder arc220
| Model/Item | ARC220 |
| Rated Input voltage(V) | AC 400V±15%(3 phase),50/60HZ |
| Rated Input power capacity(KVA) | 7.2 |
| Rated Input current(A) | 11.7 |
| Rated output | 220A/28.8V |
| Welding Current range(A) | 10-220 |
| Arc force current range(A) | 0-140 |
| No-load voltage(V) | 56 |
| Duty cycle Imax(40℃) | 40% |
| Duty cycle 100%(40℃) | 140A |
| Duty cycle 60%(40℃) | 180A |
| Efficiency(%) | 88 |
| Power factor | 0.95 |
| Insulation class | F |
| Protection class | IP21 |
| Electrode Diameter(mm) | 1.6-5.0 |
| Weight(kg) | 13.5 |
| Size(mm) | 450×160×385 |
welding machine, welding machine, welding machine , welding machine, welding machine , welding machine , welding machine , welding machine , welding machine , welding machine , welding machine , welding machine , welding machine ,welding machine , welding machine , welding machine welding machine
Features
Advanced IGBT inverter technology applicable to many welding operations
Easy arc starting, minimal spatter, stable current&great shaping
Our selfadaptive arc force technology greatly enhances the performance of the inverter for long-cable welding
The arc ignition performance of hte inverter is improved by our built-in hot start arc ignition
This inverter can be widely used in acid and basic electrode welding
Accessories
Standard
2pcs KDP-50A for ARC220/250
2pcs KDP-70A for ARC350
Optional
MMA Package 3:300A Earth clamp and 3m 25mm² Cable
MMA Package 4:200A Electrode clamp and 3m 25mm² Cable
Specifications
Standard
MMA/Stick
Current knob
ARC Force knob
Hot start
O.C.&O.H.Indicator
Low-voltage protection
Optional
Hot start knob
V.R.D for MMA
MMA V.R.D light/switch
inverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v stickerinverter 380v sticker
