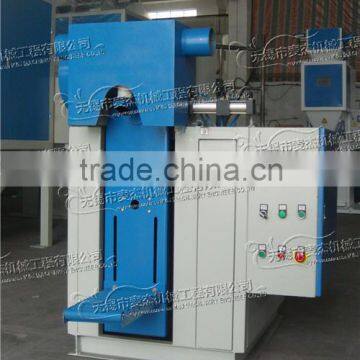

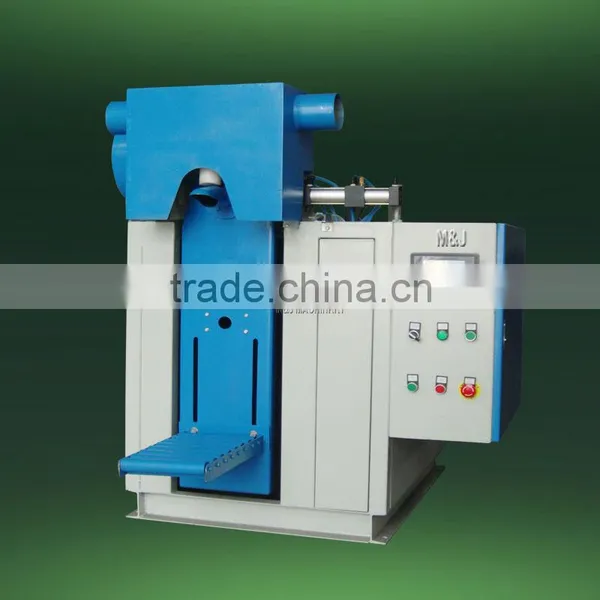

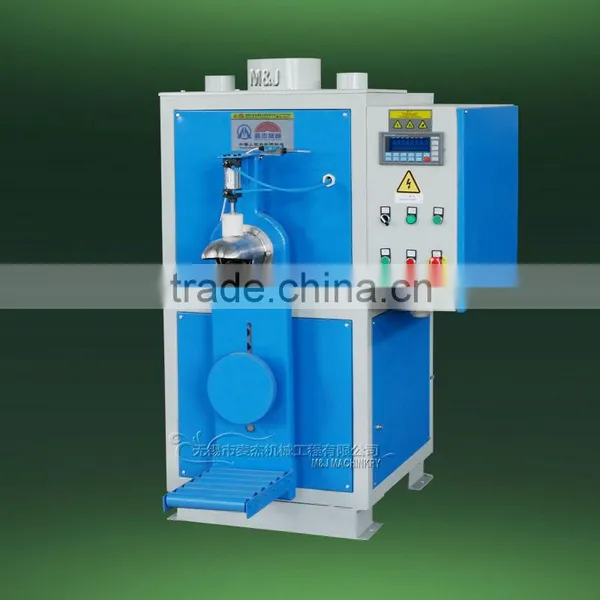

Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder

M&J Machinery Engineer Co., Ltd.
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-1
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-2
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-3
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-4
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-5
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder thumbnail-6
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-1
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-2
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-3
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-4
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-5
Valve Bagging Machine Pvc Powder, pp Powder, Plastic Powder photo-6
US$ 5,800 - 9,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Filling, Sealing
Application:
Chemical, Food, Medical, Other, Chemical, Food, Medical, latex powder,emulsion powder, pvc powder
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai valve bagging machine pvc powder pp powder plastic powder
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Filling, Sealing
Application Chemical, Food, Medical, Other, Chemical, Food, Medical, latex powder,emulsion powder, pvc powder
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Cartons, Case, Pouch, Stand-up Pouch, Other, Bags, Barrel, Belt, Bottles, Cans, Cartons, Case, Pouch, Stand-up Pouch, valve bag, kraft bag, woven bag, big bag, bulk bag, valve sack
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220-415V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name MaiJie
Model Number LCS-FK
Dimension(L*W*H) 1*1*2.2m
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Specification

valve bag packer, valve bagging machine, valve bag filler

valve bag packing machine
Automatic filling and weighing system

To pack kraft valve bag, pp valve bag 20kg ,25kg
For latex powder,emulsion powder, pvc powder, rubber tyre powder,plastic powder,pp powder;hdpe powder,

Product Description

Introduction and application:

  This Auger Valve Bag Filler with perfect weight control and easy operation.

  Product applications: paint pigments, carbon black, chemicals, minerals, bakery mixes, sttp, starch, flour etc.
An agitator assists in feeding of poor flowing products.


Components and features:

1. Various Auger RPM s available, including 900 and 1500 rpm


2. Bag chair for support of bag bottom

3. Stainless steel 304 contact surfaces

4. Fine and coarse Filling

5. Hopper with rotary paddles (optional)

6. Pneumatically-powered bag clamp


7. General Measure/ Mettler Toledo Weighing Control Module


Working process:

Manual Bag placing→ Automatic filling→ Automatic weighing→ Manual folding valve mouth to seal → Bag unloading →Next round

Model
LCS-FK1
LCS-FK2
Filling Spout
1 spout
2 spouts
Weighing range
1~5, 5~10, 10~25, 25~50 (KG), customized
Spout size
according to bag size
Application
Pigments, carbon black, high humidity chemicals, minerals, flours, starches, STPP, carbonate, organic and chemical resins, cocoa, spices, etc.
Weighing Control      Module
General Measure/ Mettler Toledo
Packing accuracy
±0.2%FS
Filling type
Screw/auger type
Packing capacity
100-180bags/hour
200-360bags/hour
Power
2.2 kw
4.4kw
Air powder
0.4~0.6(Mpa)
number  of operators
1
1
Spout cleaning
yes
yes
Dust suction cover
yes
yes
Bag holding
yes
yes
Bag height adjust
yes
yes
Bag conveyor
optional
optional
Bag drop system
optional
optional
Note: Packaging capacity of our machines, depending on your product's density and viscosity might change.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company
Packing & Delivery
Packaging
Size
1200x1200x1400(mm)
Weight
500kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
