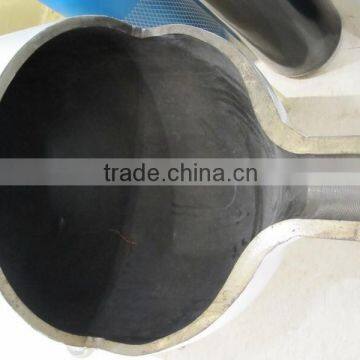

OD559mm 25Mpa Jumbo Cylinder for CNG
Model No. |
SCS0825CS-40F |
SCS0925CT-40B |
SCS0625CS-40F-711 |
SCS0925CS-10F |
SCS1225CS-20F |
Working pressure/MPa |
25 |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD559*17.4*10975 |
OD559*17.4*12190 |
OD711*22.1*10975 |
OD559*17.4*2600 |
OD559*17.4*5400 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
2825 |
3100 |
4460 |
670 |
1390 |
Water volume/L |
2225 |
2580 |
3700 |
456 |
1030 |
Filling gas volume /NM3 |
662.5 |
766.67 |
1100 |
136.67 |
308.75 |

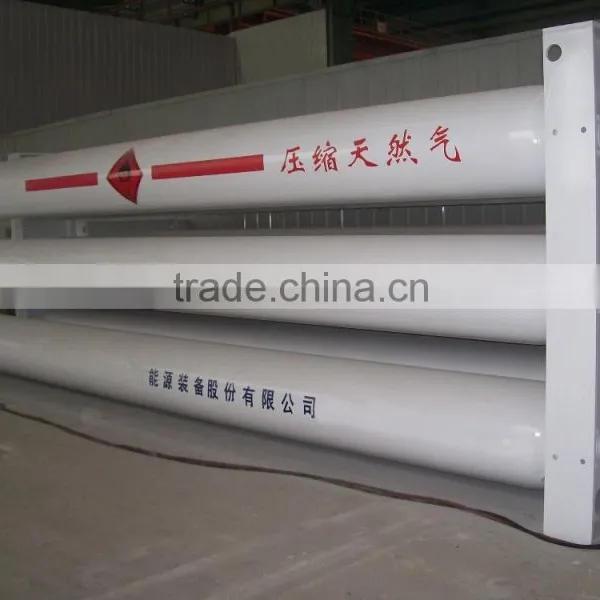

Ideal Solution for CNG Storage and Transportation---CNG Jumbo Cylinder Skid/Trailer
Produce as per ISO11120, ASME and approved by BV inspection report.
Application:
Features of SinoCleansky high-pressure jumbo gas cylinder:
1. Heat-spinning technology;
2. Walking beam continuous heat treatment;
3. Large-size structure and fewer valves, tubes and joints;
4. Concise design, less maintenance on site;
5. Lower weight of design;
6. Additional gas-filling devices.
