Heavy Duty 60mm Thermal Kiosk Printer SK1-V21 - Vertical, With Autocutter
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, kiosk
Style:
Black And White
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW Warsaw
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Low Cost Thermal Kiosk Printer SK1-31ASF4-LQP-ST With Retract PresenterNegotiableMOQ: 1 Unit -
Heavy Duty 80mm Ticket Thermal Kiosk Printer SK1-31ASF4-Q-ST AutocutterNegotiableMOQ: 1 Unit
-
Heavy Duty 80mm Thermal Kiosk Printer SK1-32, With AutocutterNegotiableMOQ: 1 Unit
-
Heavy Duty 112mm Thermal Kiosk Printer SK1-41ASF4-Q4, With AutocutterNegotiableMOQ: 1 Unit
-
Heavy Duty 112mm Thermal Kiosk Printer SK1-41 + Presenter, With AutocutterNegotiableMOQ: 1 Unit
Products Status
Stock
Type
Other, kiosk
Style
Black And White
Use
Barcode Printer
Interface Type
Other, RS-232C, USB
Max Paper Size
60mm
Black Print Speed
200mm/s
Color Print Speed
n/a
Max. Resolution
203dpi
Brand Name
Star Micronics
Model Number
SK1-V21
Place of Origin
Japan
Thermal Kiosk Printer SK1-21, vertical type for kiosk where printer dimensions are essential
Features:
Fully opening paper cover provides easy paper insert
2-inch Paper width (58/60mm)
200mm/sec. (max.) high speed printing
Vertical installation for less depth space
Paper core diameter 12/25.4mm changeable

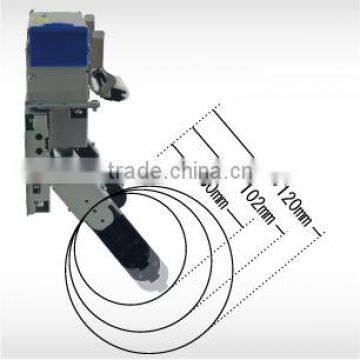

Paper diameter upto 120mm available (by change of paper holder position)
150µm thick paper available (thickness from 59µm to 150µm)
Interface: RS-232C,USB
| Printing method | Direct line thermal | |
|---|---|---|
| Paper width | 56mm / 58mm | |
| Print width | 54mm / 56mm | |
| Number of dots | 432 dots / 448 dots | |
| Resolution | 8 dots/mm (203dpi) | |
| Printing speed | 200mm/sec. (max.) *1 | |
| Interface | Serial(RS-232C/max. 115.2kbps), USB2.0 | |
| Character type | ASCⅡ | PC437/850/852/857/858/863/865/866/860/862, WPC1252/1252_2/1254/1250/1251 |
| Download | Available | |
| Font / Dots / Lines | Printing width | 54mm / 56mm |
| ASCⅡ 16 dots | 8 x 16 dots (WxH), 54/56 lines | |
| ASCⅡ 24 dots | 12 x 24 dots (WxH), 36/37 lines | |
| Paper sensor | Near end sensor/ Reflection sensor / Gap sensor (option) | |
| Memory | Input buffer 8k bytes, User memory, Non-volatile memory | |
| Logo registration | Download bit image | |
| Barcode | 1D | UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128 |
| 2D (option) | QR, Maxicode, MicroPDF417, PDF417, DataMatrix | |
| Command systems | ESC/POS Conformity *2 | |
| Regulation | VCCI, FCC, CE, CLASS A | |
| Printing life | Pulse activition: 200 million pulses or more Abrasion resistance: 150Km or more |
|
| Cutter life | Cutting life: 1.5 million cuts or more (Thickness: 75µm or less) | |
| Power supply | DC power supply: DC 24V±5% / TYP 3A (Peak 7.5A) | |
| Current consumption | Standby: 70mA or less Printing: Ave. 2.5A *3 |
|
| Operating environment | Temperature | -20 to 60 ℃ Printing quality is guaranteed from +5 to 40 ℃ |
| Humidity | 20%RH to 85%RH (No condensation) | |
| Storage environment | Temperature | -30 to 70 ℃ |
| Humidity | 10%RH to 90%RH (No condensation) | |
| Dimensions | 104(W) x 165.8(D) x 78.5(H) mm (without paper roll) | |
| Weight | TBD | |
