Interface board for STP411B/G

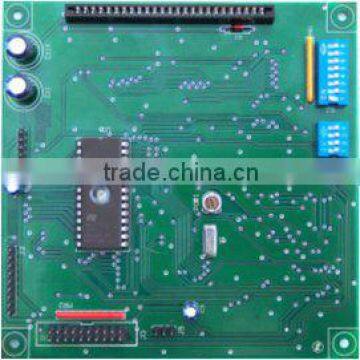

The IF-411B/G is an interface circuit for printing data on a Seiko Instruments STP-411B or STP-411G printer mechanism.
The interface handles many types of printing including 40 columns of ordinary characters, 80 columns condensed characters, 20 columns of double-width characters, bold and double-strike characters as well as full graphics printing. Since the software commands contain many control codes, they can be used independently. There is a possibility to adjust print density by ± 20% by using potentiometer.
The IF-411B/G has same functions, dimensions and most of commands as IF4112-GCB.
Interface board |
IF411B/G |
|
Applicable model |
STP 411B/G-320 |
|
Character matrix |
Graphics: 9 dot high x 8 dot wide
Character: 9 dot high x 7 dot wide (1 dot space)
|
|
Character set |
Alphanumeric and graphic: 222
International characters: 28
Special Characters: 6
Total: 256
|
|
Control |
8-bit parallel – Simple Centronix
RS-232 - Serial
|
|
Printing columns |
80 – Condensed characters
40 – Ordinary characters
20 – Double width characters
All characters sizes may be mixed on one line
|
|
Printing directions |
Bit image: Left to right for paper feed
Character: Bidirectional logical seeking
|
|
Line space |
Specified by program (15 dots/line when initializes) |
|
Printing speed |
Ordinary characters: 37.5 cps
Condensed characters: 50 cps
|
|
Operating voltage |
5 V ± 10% |
|
Current consumption |
5V: Standby – 40mA max.
Running – 3.5 A max.
|
|
Operation conditions |
-10 50C, 20-70% RH |
|
External dimensions (mm) |
122 (W) x 117 (D) x 22 (H) |
|
Weight |
approx. 100 g |
|
ROHS |
ROHS Compliant |
|
Article number:
IF411B – interface board for STP411B-320 mechanism (without control Input/Output connector).
IF411G – interface board for STP411G-320 mechanism (with control Input/Output connector).
