Semi-electric Hydraulic Stacker-- Semi-power Forklift Stacker-- Electrical Lifting and Muanl Push ---SPN15 Series

  Semi-electric Stacker   --------  SPN1516, SPN1520, SPN1525, SPN1530, SPN1535

Product Descriptions

With electric lift and manual push, SPN series semi-electric pallet stacker is easy control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking.

Using SPN is safe and efficient in factories, warehouses and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.

 Advantages

• Compact hydraulic power unit structure. The lifting and lowering speed is adjustable according to the users’ needs.

• The main components are internationally renowned brands, which make the system stable and prolong the service life.

• The whole series is standard equipped with the imported motor relay, which is fast, stable and durable.

• External battery charger is better in heat dissipation. Unlike the built-in charger, it avoids the damages caused by vibration.

• Emergency stop switch. When the stacker is in danger, pressing the emergency stop switch can cut off the power supply and      stop the stacker, which protects the safety of the operator and equipment.

• Pneumatic spring in the handle. Releasing the handle, it can be automatically slow reset.

• The protection device for feet on the steering wheel is to protect the operator’s feet from harm.

• With light weight, high strength and good cross section performance, the C type steel can lower the stacker’s weight and              ensure the stacker’s stability and strength at the same time.

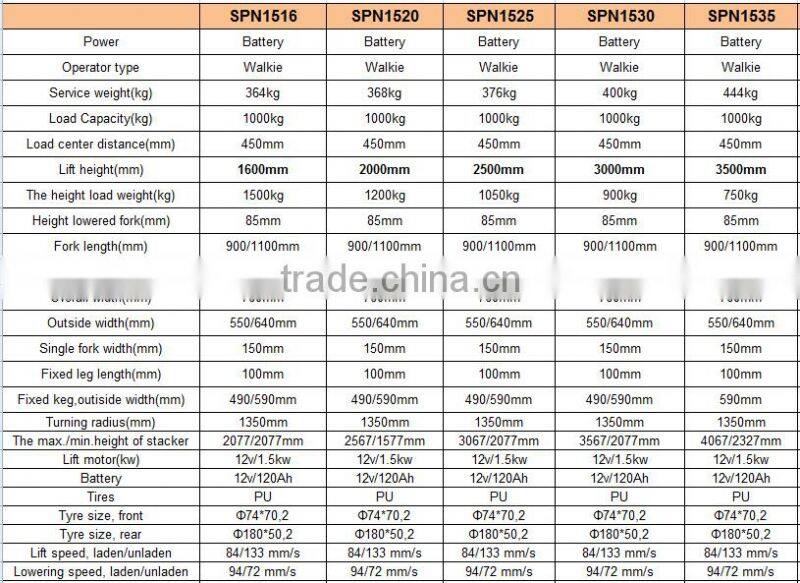

Specifications

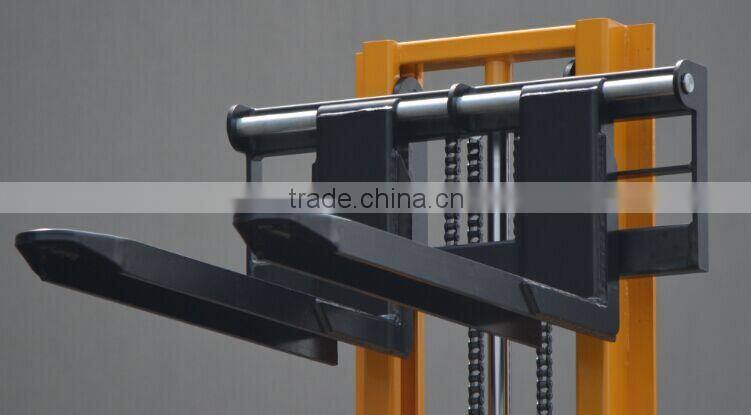

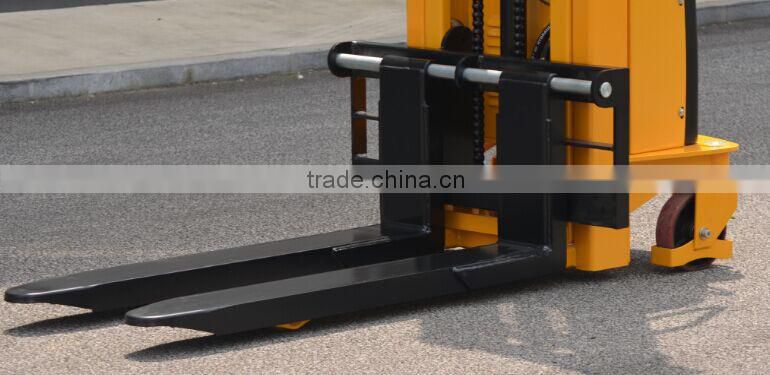

More Detailed Pictures

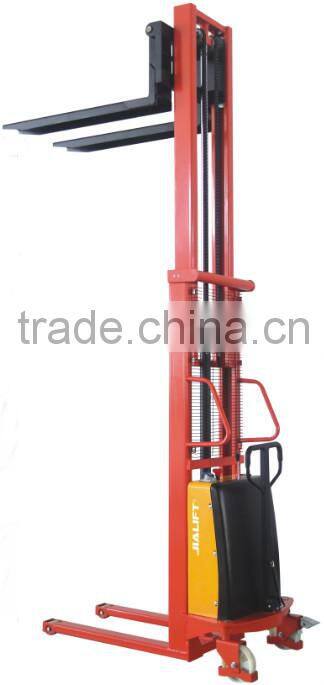

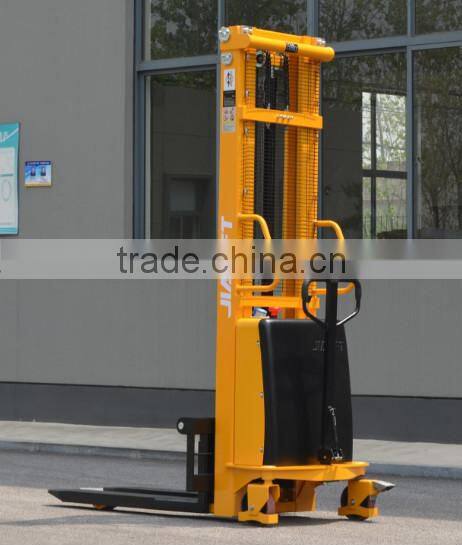

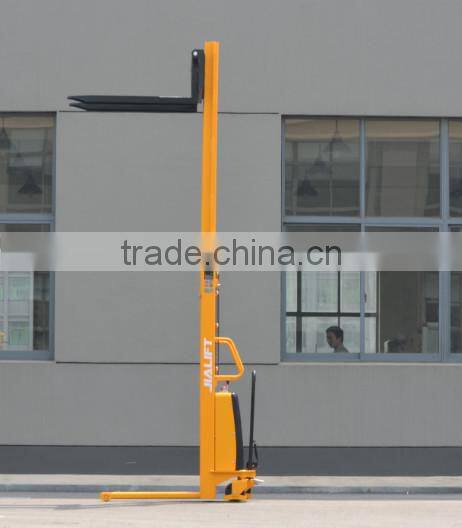

Pictures for stacker
