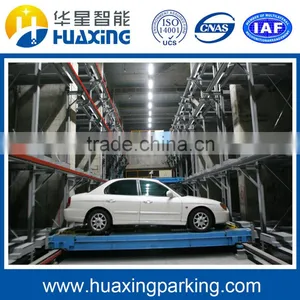

Help CenterPPY Ppy-Z1surface Shifting Garage Automated Parking
Related Products
-
Car Turntable Platform Car LifterUS$ 4000.00 - 4000.00MOQ: 1 Piece -
Car Turnable Parking SystemUS$ 5,000 - 11,000MOQ: 1 Piece
-
Car TurntableUS$ 15,000 - 15,000MOQ: 1 Piece
-
Turntables or Rotary Disk for AutomotiveUS$ 4,000 - 10,000MOQ: 1 Piece
-
Car Turntable for Parking LotUS$ 15,000 - 15,000MOQ: 1 Piece

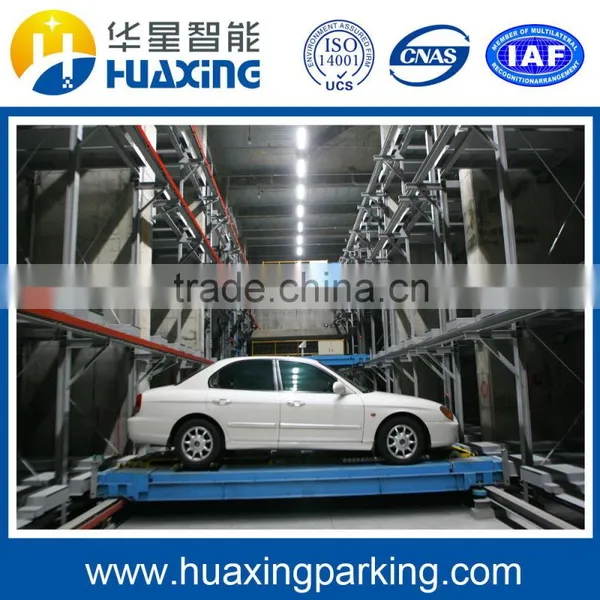

This technology allows for vehicles to be transported by a robotic dolly that has a unique lifting technique for handling vehicles directly from the underside of the tires. Once passing through a channel underneath the vehicle in the Transfer Station, the robotic dolly uses a comb-exchange/finger-grid mechanism consisting of steel extensions to lift the vehicle and transfers it to a shuttle device; each stall in the storage vault is equipped with a simple rack profile that allows the comb-exchange/finger-grid mechanism to lower the vehicle into position to complete the storage procedure.
TECHNICAL SPECIFICATIONS
| PRODUCT DESCRIPTION | Comb Exchange Automated Vehicle Storage |
| MODEL # | APG |
| STALL LENGTH, ft-in (m) | 18'-0" (5.48) |
| STALL WIDTH, ft-in (m) | 7'-3" (2.2) |
| CLEARANCE REQUIREMENTS/ STALL (h) | 6`-8`` (2) |
| LIFTING CAPACITY / PLATFORM, lbs (kg) | 6000 (2722) |
| WEIGHT OF UNITS, lbs (kg) | (determined by model) |
| ELECTRICAL REQUIREMENT | 3-phase 480V |
| OPERATION | Automatic with manual override for emergency retrieval |
| ADDITIONAL REQUIREMENT |
Intergrated Sortware Program |
1, Self designing, manufacturing, installing, and also researching and developing automatic parking system, with powerful technical advantages;
2, cooperating with the world-renowned parking system manufacture, Korea Dongyang Co., having foreign advanced technologies;
3, High specialization, advanced processing equipment/machinery;
4, Having our own installation engineering team without outsourcing to install, supervising and managing efficiently; Adjustment of automatic products is fulfilled by Senior engineers having accomplished many parking system projects with rich experience and good understanding about the products; ;
5, using high quality steel materials, special-made driving chain, and special-made motor for parking system, which bring our parking systems long life-scan, steady & safe running, low accident rate, etc.
