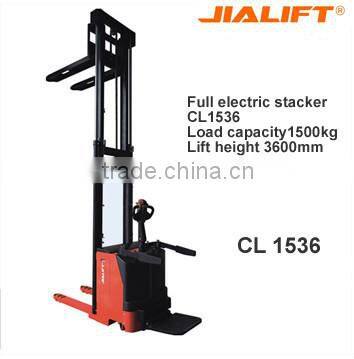

1500kg,3600mm, Full Electric Stacker CL1536

Name: 1500kg,3600mm, Full Electric Stacker CL1536
Brand: JIALIFT
Availability: InStock

FOB Price

US$ 3,396 - 3,396 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	JIALIFT	Model Number	CL1536
Rated Loading Capacity	1500kg	Max. Lifting Height	3600mm
Min. Lifting Height	86mm	Fork Length	1150mm
Fork Width	570/695mm	Overall Dimensions	1914(2314)mm * 805mm*2327mm
After-sales Service Provided	Engineers available to service machinery overseas

1500kg,3600mm, Full Electric Stacker CL1536

Model	CL1536
Power	Battery	Lift height(mm)	3600mm
Operator type	Stand on	The height load weight(kg)	900kg
Service weight(kg)	900kg	Height lowered fork(mm)	86mm
Load capacity(kg)	1500kg	Fork length(mm)	1150mm
Load center distance(mm)	600mm	Overall length(mm)(Pedal)	1914(2314)mm
Lift motor(kw)	2.2kw	Overall width(mm)	805mm
Driving motor(kw)	1.2kw	Outside width(mm)	570/695mm
Driving speed(km/h)	5.5/5.2km/h	Single fork width(mm)	180mm
Service brake	Regenerative	Fixed leg length(mm)	875mm
Battery(Size)	24v/210Ah(790210458mm)	Fixed keg,outiside width(mm)	490/615mm
Tires	PU	Turning radius(mm)	1460mm
Tyre size, front	Φ 80*70,4	The max./min.height of stacker	4087/2327mm
Tyre size, rear	Φ 250*80,1	Working time(h)	5h
Balance tyre	Φ 150*58,2	Lift speed,laden/unladen	150/105 mm/s
		Lowering speed,laden/unladen	95/100 mm/s
