Pjs3 Three-Storey Simple Lifting Parking System

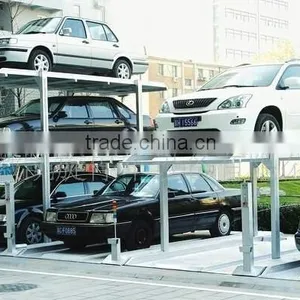

Pjs3 Three-Storey Simple Lifting Parking System photo-1
US$ 3000.00 - 3000.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Parking Lift
Place of Origin:
Anhui, China
Brand Name:
huaxing
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/nanjing port
Delivery Detail:
Delivery time depends on order quantity.
Type Parking Lift
Place of Origin Anhui, China
Brand Name huaxing
Model Number Pjs3

Pjs3 Three-Storey Simple Lifting Parking System



Basic Info.

Model NO.:PJS3

Type:Parking Lift

Working Mode:Button

Driving:Motor

Falling Prevention Device:Hook

The Vehicle Inlet and Outlet:Center

Design:Three Storey

Certification:CE, ISO

Lift Mode:Chain

Voltage:220V/380V

Export Markets:Global



Additional Info.

Trademark:HUAXING

Packing:Simple Parking

Standard:CE, ISO

Origin:Hefei, Anhui, China

HS Code:8428902000

Production Capacity:36000PCS/Year


Product Description

Working Principle
The upper parking board can only do the lifting movement, the lower parking plate can do the sliding movement, through the vacancy in middle and the lower plate, change the vacancy with movement of parking plate, transfer the car to the first floor and take it out.

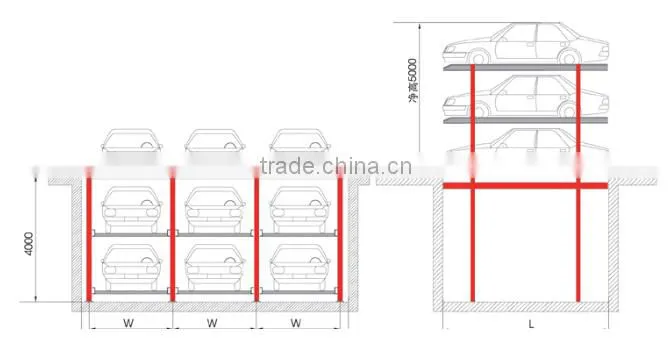

Pjs3 Three-Storey Simple Lifting Parking System
Type PJS3 (M)
Overall Length(mm) 5000
Overall Width(mm) 1850
Overall Height (mm) 1550
Weight Capacity(kg) 2000
(mm) 2500
b(mm) 5400
c(mm) 5200+10
d(mm) 3900
Lifting Motor (KW) 3.7
Driving Mode Motor + Chain
Control Mode Relay
Operation Mode Button
Lifting Speed(m/min) 2.2~2.3
Average Extracting Speed(s) ≤60



Our device

Our projects

Our patents

Pjs3 Three-Storey Simple Lifting Parking System

Our Certificate

About us



Pjs3 Three-Storey Simple Lifting Parking System



    As a professional national innovative technological enterprise specialized in intelligent parking equipment R&D, planning, manufacturing, installation, maintenance and repair, it has intelligent parking equipment engineering technology research center. Besides, it has 16 national patents, including advanced safe, automatic and flexible loading technology, falling preventive device and stroke control devices which fill in the blanks in national market. The products cover lifting side-sliding type, simple lifting type, multi-storey surface shifting type, automotive lifters, vertical lifting, vertical cycling, tunnel piling, automotive turntables, etc. Providing all-around parking management systems and accessories, customer service and technical support of parking equipment, Huaxing Parking sincerely expects to cooperate with you to create beautiful future!
