Two Door Frame Full Electric Hydraulic Stacker 2TON

FOB Price

US$ 3,478 - 4,307 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	JIALIFT	Model Number	1 Ton load capacity electric stacker
Type	Other, Full electric stacker	Power Souce	DC Motor
Rated Loading Capacity	2000kg	Max. Lifting Height	3.6m
Min. Lifting Height	86mm	Fork Length	1150mm
Fork Width	180mm

High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

The specification of Two door frame full electric hydraulic stacker 1TON

Semi Electric Stacker CL15
Identification	1.2	Model		CL1516	CL1526	CL1532	CL1536
	1.3	Power (battery ,diesel, petrol, gas, manual)		Battery	Battery	Battery	Battery
	1.4	Operator type		Rider	Rider	Rider	Rider
	1.5	Load Capacity	kg	1500	1500	1500	1500
	1.6	Load center distance	mm	600	600	600	600
Weight	2.1	Weight	kg	797	865	884	900
Wheels	3.1	Tires		PU	PU	PU	PU
	3.2	Axle loading, laden rear	mm	Φ250×80	Φ250×80	Φ250×80	Φ250×80
	3.3	Axle loading, laden front	mm	Φ80×70	Φ80×70	Φ80×70	Φ80×70
	3.4	Wheels number	pcs	2(4)/2	2(4)/2	2(4)/2	2(4)/2
Dimensions	4.1	Lift height	mm	1600	2000	3000	3500
	4.2	Height lowered fork	mm	85	85	85	85
	4.3	Overall length	mm	1600(Fork length 900) / 1800(Fork length 1100)
	4.4	Overall width	mm	760	760	760	760
	4.5	Fork length	mm	900/1100	900/1100	900/1100	900/1100
	4.6	Outside width	mm	550/640	550/640	550/640	550/640
	4.7	Single fork width	mm	100	100	100	100
	4.8	Turning radius	mm	1350	1350	1350	1350
Performance data	5.1	Lift speed, laden/ unladen	m/s	84/133	84/133	84/133	84/133
	5.2	Lowering speed, laden/ unladen	m/s	94/72	94/72	94/72	94/72
	5.3	Service brake		Regenerative	Regenerative	Regenerative	Regenerative
Electric- Motor	6.1	Lift motor	kw	12v/1.5kw	12v/1.5kw	12v/1.5kw	12v/1.5kw
Electric- Motor	6.2	Battery voltage, capacity		24V/210Ah	24V/210Ah	24V/210Ah	24V/210Ah

Detail Information

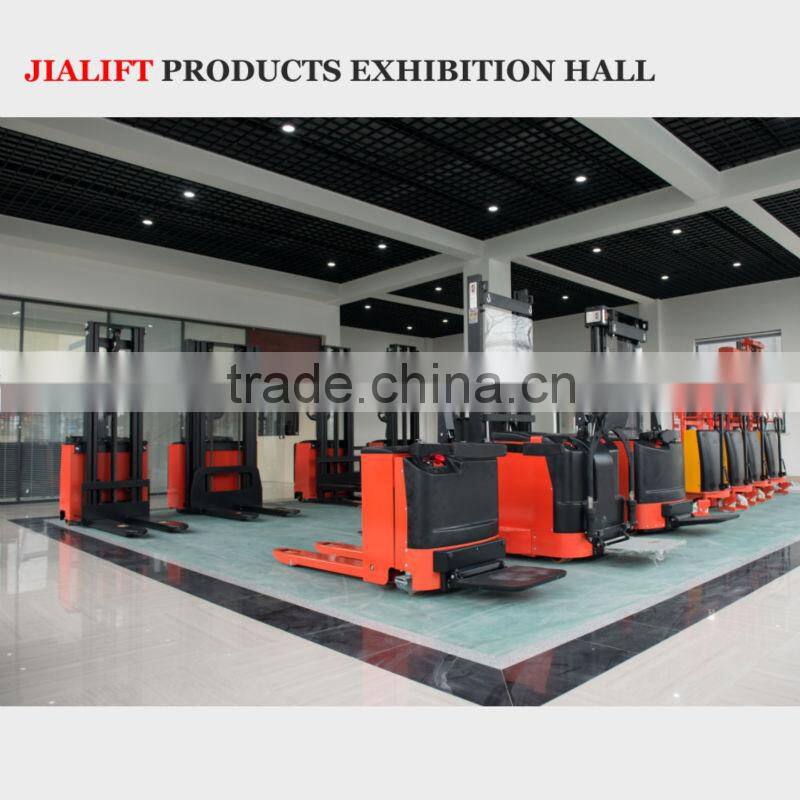

Product Showroom
