Rider 2000kg Hydraulic Full Electric Pallet Stacker CL20

FOB Price

US$ 3,715 - 4,615 / Unit

1 Unit(Min. Order)

Port Shanghai or Ningbo
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	China
Brand Name	JIALIFT	Model Number	CL20
Type	Other, electric stacker	Power Souce	DC Motor
Rated Loading Capacity	2000kg	Max. Lifting Height	3600mm
Min. Lifting Height	86mm	Fork Length	1150mm
Fork Width	180mm

Product Description

Specifications

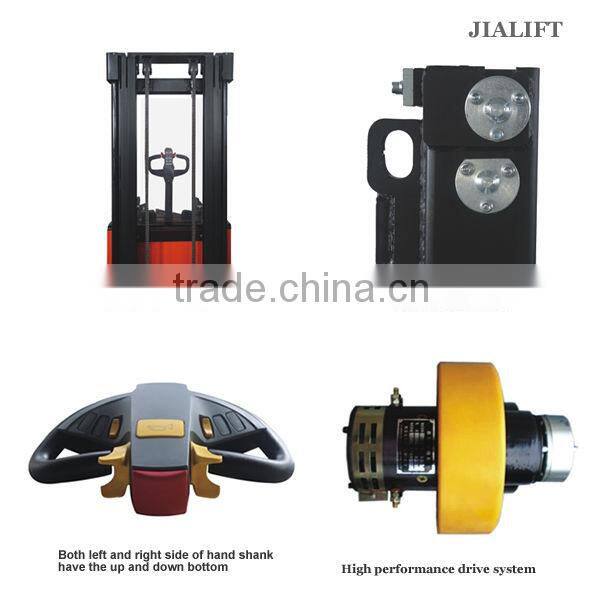

High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

1500kg Full Electric Stacker CL15

1, High performance hydraulic power unit, combined DC motor, gear pump. Value disc and pipe components.

2, With small size, high reliability, stable work, energy conservation, noise reduction, environmental protection, etc.

3, Electronic control system which is imported from US Curtis is responsive, good manipulation, automatic regeneration, reverse connect braking and wireless control, and other functions

The technical data:

Full Electric Stacker CL20
Identification	1.2	Model		CL2016	CL2026	CL2032	CL2036
	1.3	Power (battery ,diesel, petrol, gas, manual)		Battery	Battery	Battery	Battery
	1.4	Operator type		Rider	Rider	Rider	Rider
	1.5	Load Capacity	kg	2000	2000	2000	2000
	1.6	Load center distance	mm	600	600	600	600
Weight	2.1	Weight	kg	1109	1207	1234	1280
Wheels	3.1	Tires		PU	PU	PU	PU
	3.2	Axle loading, laden rear	mm	Φ250×80	Φ250×80	Φ250×80	Φ250×80
	3.3	Axle loading, laden front	mm	Φ80×70	Φ80×70	Φ80×70	Φ80×70
	3.4	Wheels number	pcs	2(4)/2	2(4)/2	2(4)/2	2(4)/2
Dimensions	4.1	Lift height	mm	1600	2600	3200	3600
	4.2	Height lowered fork	mm	86	86	86	86
	4.3	Overall length	mm	2460
	4.4	Overall width	mm	805	805	805	805
	4.5	Fork length	mm	1150	1150	1150	1150
	4.6	Outside width	mm	570/695	570/695	570/695	570/695
	4.7	Single fork width	mm	180	180	180	180
	4.8	Turning radius	mm	1460	1460	1460	1460
Performance data	5.1	Lift speed, laden/ unladen	mm/s	150/105	150/105	150/105	150/105
	5.2	Lowering speed, laden/ unladen	mm/s	95/100	95/100	95/100	95/100
	5.3	Service brake		Regenerative	Regenerative	Regenerative	Regenerative
Electric- Motor	6.1	Lift motor	kw	3	3	3	3
Electric- Motor	6.2	Battery voltage, capacity		24V/200Ah	24V/200Ah	24V/200Ah	24V/200Ah

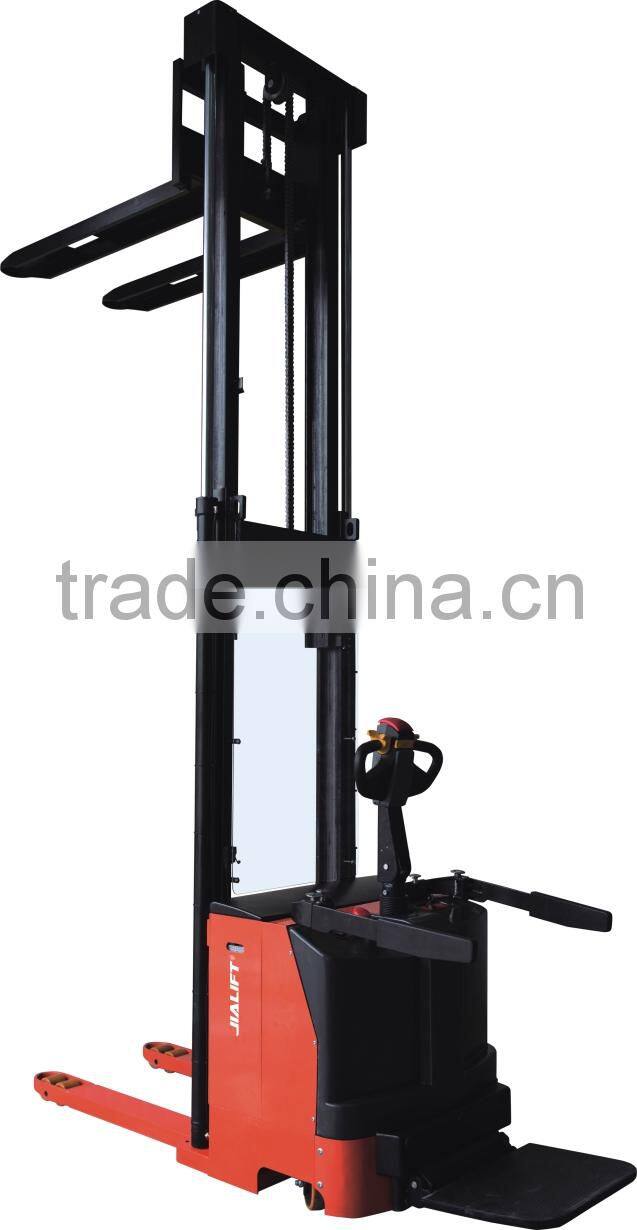

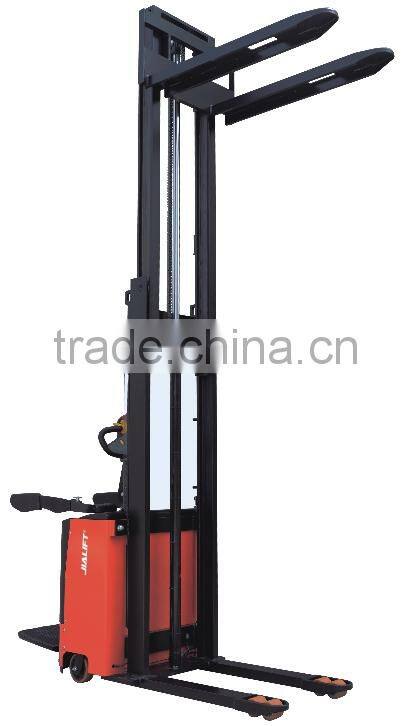

The Photoes:
