Product Details
Place of Origin: | China | Brand Name: | TID | Model Number: | TCC001 |
Type: | Solid Through | Material: | Other, Aluminium | Max. Working Load: | 0.735KN |
Product Description
1.Application:

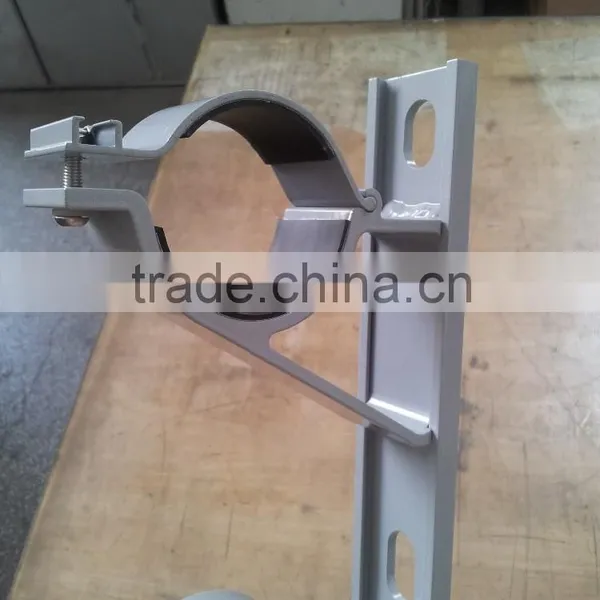

The cable clamp is designed for fixing the cable on the wall of the tunnel, cable trench, etc., and it is suitable for 1*300 and 2.75kV cable.The cable clamp made by high strength diamagnetic anticorrosion extruded aluminum alloy profiles.There is a rubber circle pad designed inner of the cable clamp which will well protest the cable.The cable clamp can fix the cable in a line and can connect the earthing from the clamp,This new design cable clamp suitable for 3 core ,2 core and single core cable.

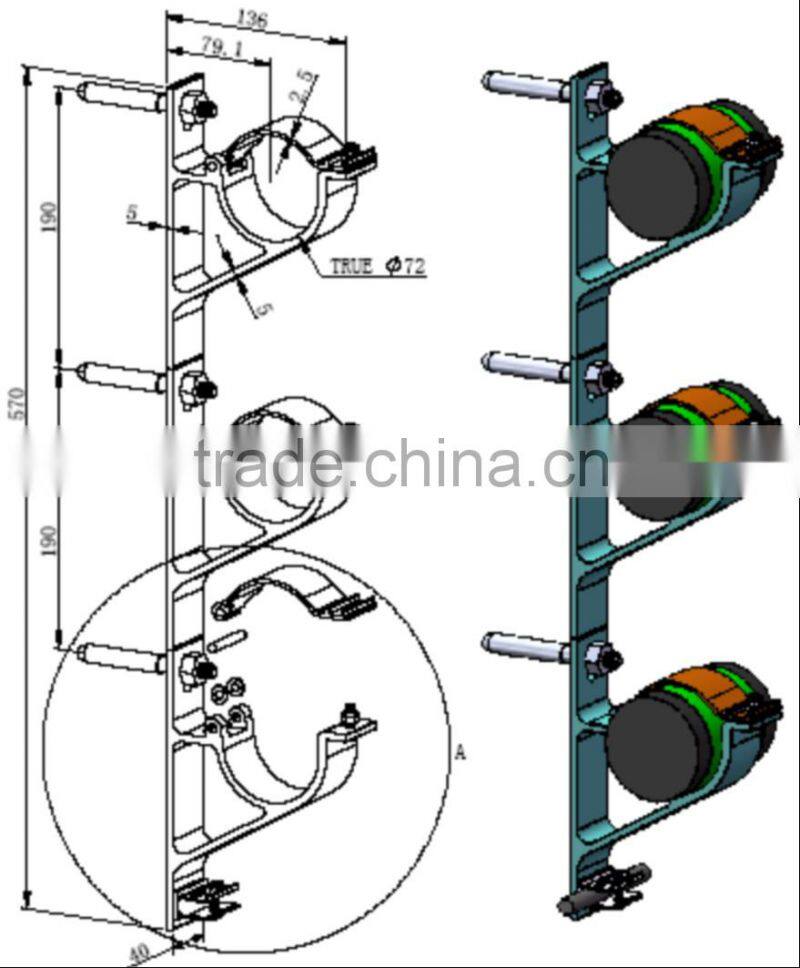

2.Construction Drawing:

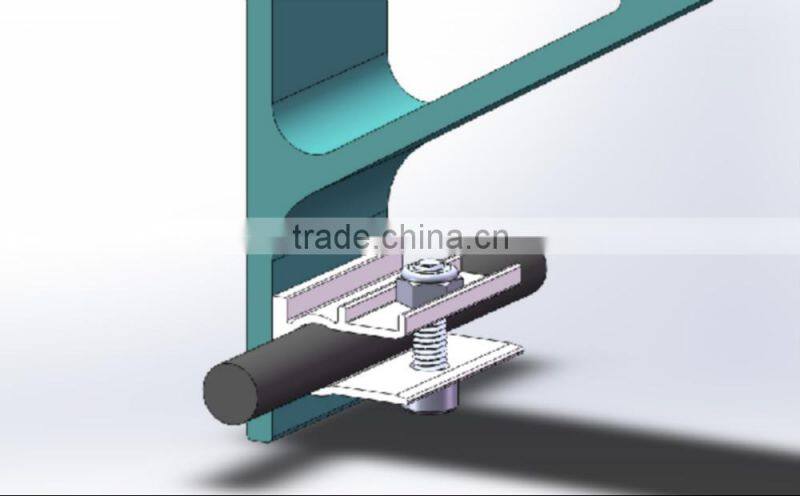

2.1. The cable clamps have two function cable supporting and earthing connection.
2.2.The new design cable clamp use rubber insulation ring inside of the clamp to avoid there is no diversion close circle.
3.Technical Specification:
No. | Description of Technical Item | Value | |
1 | Applied standard | TB/T2073-2010/TB/T2074-2010/ GB/T228-2002 | |
2 | Tensile Strength Test | ≥310 N/mm2 | |
3 | Yield Strength Test | ≥260N/mm2 | |
4 | Elongation Test | ≥10% | |
| Working Load | 0.735kN | |
| Breaking Load | 2.205 kN | |
| Install Space | 1.8m | |
| Static Load Test under 0.245kN | 72hrs no deformation, | |
5 | Aging Test | 3Hz ,0.5kN±0.15 kN 5X105 Times | Base part deformation |
The Min Load after test | 0.70 kN | ||
6 | Surface corrosion resistant test (168hrs) | No corrosion point,No cracking ,no visual flew |
