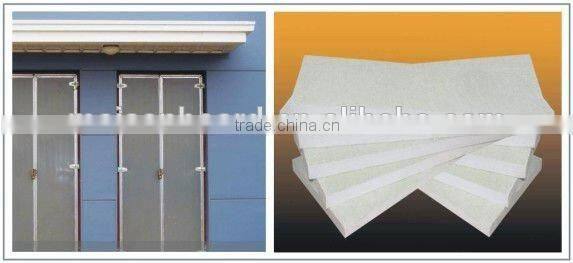

Magnesium Partition Panel

• Magnesium partition panel also called : magnesium oxide board / MgO board / magnesium board / magnesium cement board / magnesium fireproof board / magnesium waterproof board / magnesium sanded board /exterior wall board /interior wall board / ceiling board
• Materials:Magnesium partition panel (commonly known as magnesium oxide board) is created by active high-purity magnesium oxide (MgO) , magnesium chloride (MgCl₂) and water,the glass fiber cloth is enhanced materials, it is a new type non-flammable decorative material made of lightweight materials.
• Advantages:the product is fireproof, waterproof,shockproof,tasteless, non-toxic,ice-free,does not rot,does not crack,deformable,noncombustible, high strength light weight,convenient construction long service life and has a special performance compound compare with similar products throughout the country.

• Specification: width less than 1220mm,length less than 3050mm,it can be customized.general size is: 1220mm*3050mm,1220mm*2750mm, 1220mm *2440mm,930mm*2440mm,930mm*2280mm.
• Thickiness: 3mm-19mm (one-step forming),20mm-38mm(two boards glue)

About Magnesium partition panel

• Superior strength :light-weighted and economical.
• Non-flammability : conforms to the national grade A1 standard (GB8624-2006).
• Water resistant : The product is allowed to long-term expose to moist environment.
• Invariability : Resistant to deformation in wet, hot and dry conditions.
• Sound insulation : Sound loss through a 9mm thick Tolar TM plate -42dB.
• Thermal insulation : Thermal conductivity of 0.216w/mk.
• Durability : Resistance to corrosion, acid and alkali, long lasting strength.
• Frost resistance : can be exposed at -40 degree.
• Easy installation : easy to cut, saw, nail, drill, stick, and paint. The board has unique smooth and rough surface, the form finish can be sticked with wallpapering, aluminium panels, veneer, pvc, or get painted or sprayed, while the later for tile, marble, granite, etc.
• Environmentally friendly : free of asbestos, formaldehyde, ammonia and other harmful substances.
• Anti-insects and mildew : The board provide good insulation against insects, fungus and corrosion.
• Dehalogenation resistant : no water drops or moisture.

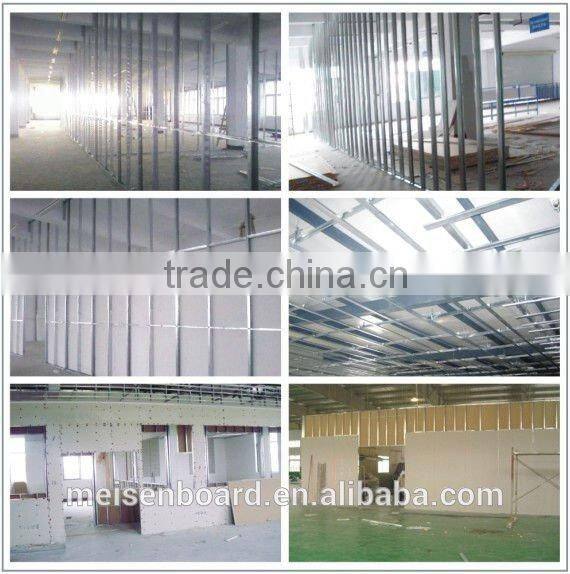

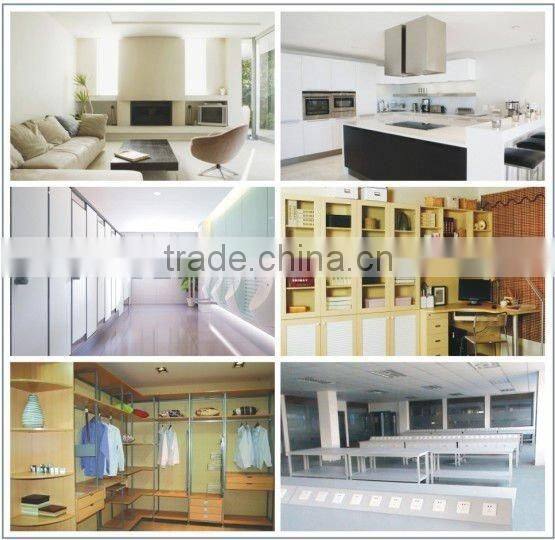

Magnesium partition panel can be used in wall ,ceiling ,plywood substitute made of wood dado,window,door and funiture.Can be processed into various types of board. The environmental protection,energy saving, sawing,nailing,can be adhesive,can be painted,can be brush characteristics, it is widely used in living room, office, hotel, hotels, shopping malls, hospitals, airports, subways,libraries, venue, stadium, museum,plant,and other indoor and outdoor decoration.

Furniture board

Decoration board

Architecture board

Decorative veneer board

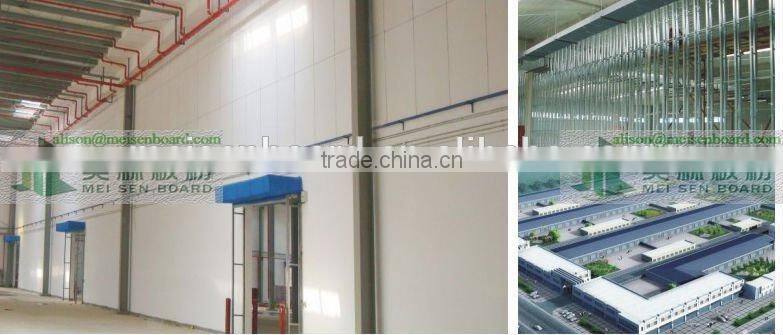

Plant internal firewall

Fire door supporting plate

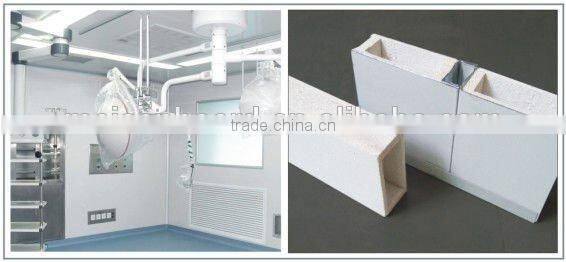

clean room partition panels core material

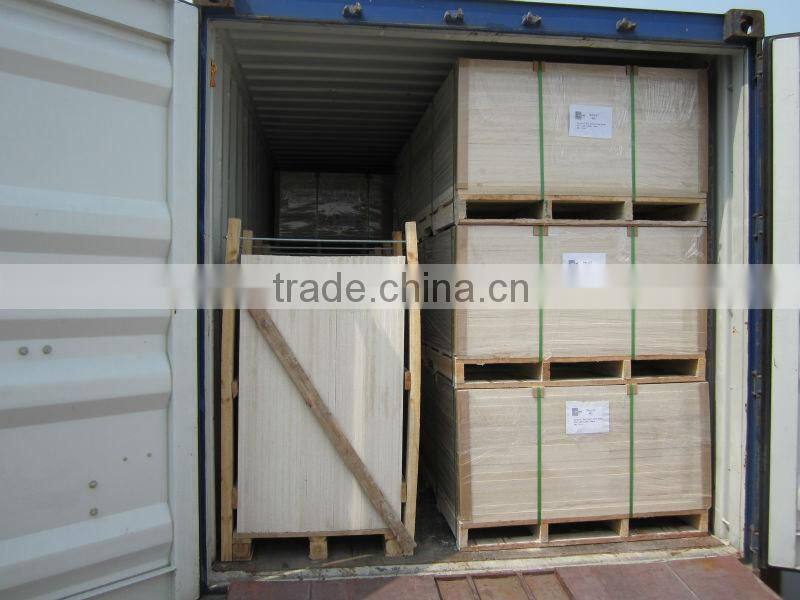

Magnesium partition panel in wooden pallet

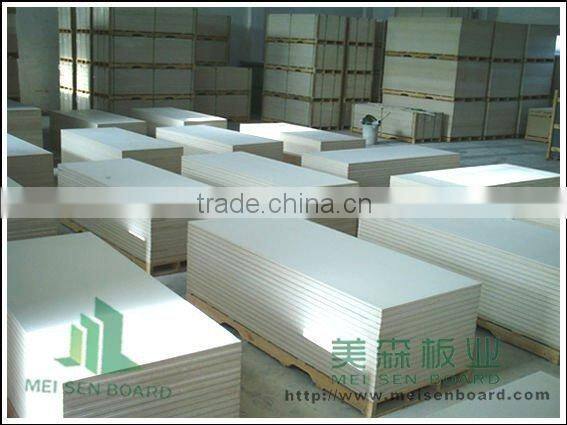

Magnesium partition panel in bulk

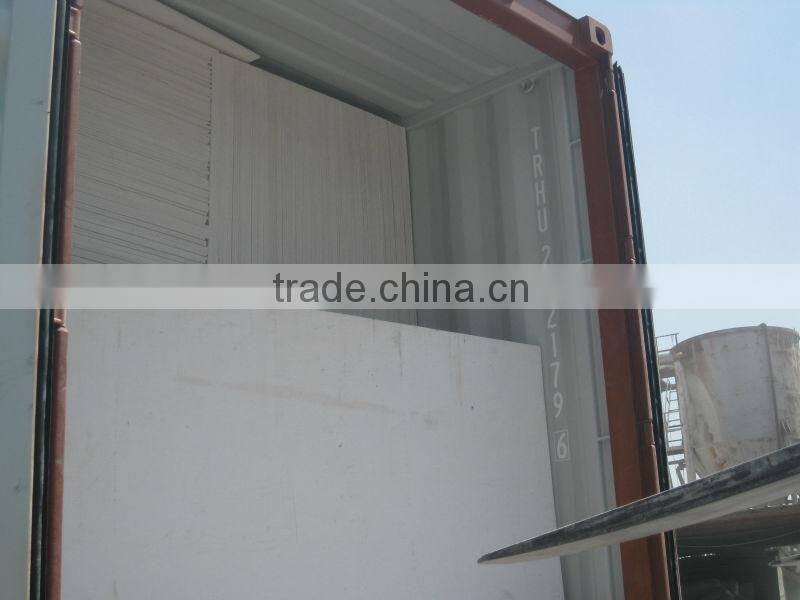

Transportation:

• Forbidding single handling and pay attention to corner protection.
• Lifting the plate with two workers, hands apart to hold up the both sides of boards on and prevent excessive bending.
• Proposed to erect the plate during transportation, when the plate thickness is less than 8mm, it is recommended to stack two sheets for handling.

HuiZhou MeiSen Board CO.LTD

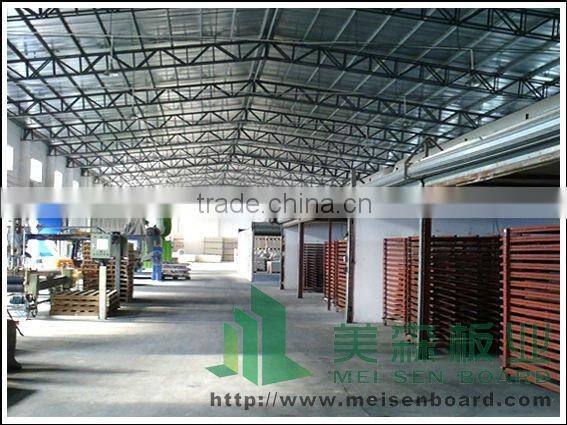

was established in 2007, and is located in Jiaoyuan Industrial Area, Shiwan Town, Boluo County, Huizhou City, with a well-developed transportation system and mature supporting facilities. The production base covers an area of approximately 12,000 m², with industry-leading fully automated production lines. Now, the daily production capacity is up to 10,000 m². Our company is a private new enterprise specializing in the research and development and production of Magnesium partition panel  in southern China.
