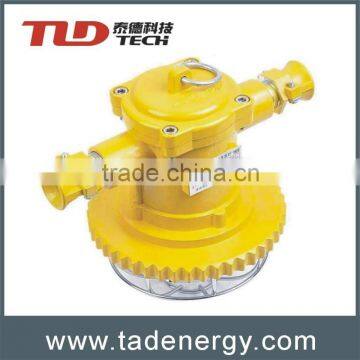

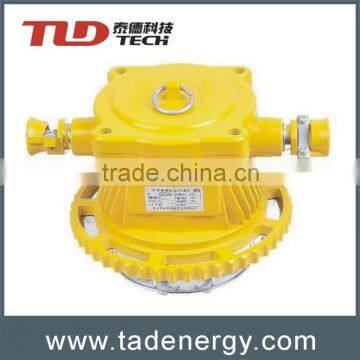

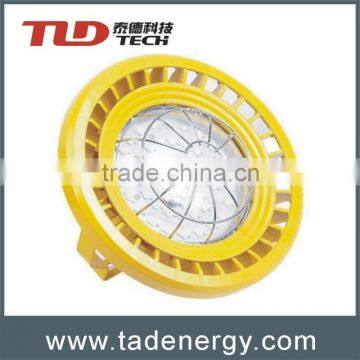

Explosion-proof/Anti-explosion LED Induction Lamp Of Roadway
- 40000 Piece / Pieces per Month
- Qingdao/Shanghai/Guangzhou
- L/C D/P D/A
- DGS50Ex mine radar induction flame-proof LED Laneway Lamp
- 30w~75w Explosion Proof Emergency Exit Sign Light for Class 1 Division 1 & 2, Class II Divsion 1 & 2
- LED Explosion-proof Floodlight 20W 30W 40W 130lm/w Maintenance Portable Mobile with ATEX IECEX Certificates
- 20w~40w CESP Portable LED Explosion-proof Working Light Explosion-proof Floodlight Explosion-proof with Complete Certificates
- Portable LED Explosion Proof Light with Wheels - 20~40W 110~130lm/w Three Core Rubber Cable 15~120 Degree ATEX IECX CE Certified
- 20w~40w CESP Portable LED Explosion-proof Working Light Explosion-proof Floodlight Explosion-proof Certificate Complete
Product Details
Input Voltage(V): | 100-220 | Lamp Power(W): | 40 | Lamp Luminous Flux(lm): | 4000 |
Lamp Luminous Efficiency(lm/w): | 100 | Color Temperature(CCT): | Cool White | Working Temperature(℃): | -40, 60 |
Working Lifetime(Hour): | 50000 | IP Rating: | IP65 | Certification: | CCC, CE, CQC |
Lamp Body Material: | Aluminum Alloy | Place of Origin: | Shaanxi, China | Brand Name: | TID-Tech |
Model Number: | Explosion-proof Lights |
Product Description
1.Product Feature
1.1.High-power LED light source,high luminance lighting and uniform lighting;
1.2.By unique heat radiation technique,it has a long service life and is free of maintenance so as to operate over 50’ntinuously with small light decay.
1.3.Environment-friendliness and energy conservation, lower 80% than incandescent lamp;
1.4.High lighting efficiency,quick start and non-flashing;
1.5.It shows object color more vividly by color rendering;
1.6.It is characterized by complete protection,constant power ,safety and reliability;
2. Product Application
This mine flameproof LED roadway lamp portfolio applies to lighting in coalmine downhole roadway subject to methane or coaldust explosion risk.
3.Product parameter
Product Type | Voltage | Power | Luminance LX (3 meters high) | Explosion Type | Extermal Dimension | Weight |
DGS10/127(B) | AC 127 | 10W | >10 | Exdel | 815X180X120 | 3.5KG |
The main technical parameters:
Power | Curren(mA) | Voltage(V) | Flux(lm) | CCT(k) | CRI | Lamp Luminous Efficiency(lm/w) | Picture |
3W | 300 | 9~10 | 280 | 6000 | Ra75 | >90 | |
4W | 300 | 12~13.5 | 370 | 6000 | Ra75 | >90 | |
5W | 300 | 15~17.5 | 450 | 6000 | Ra75 | >90 | |
7W | 300 | 21~24.5 | 650 | 6000 | Ra75 | >90 | |
9W | 300 | 27~31.5 | 820 | 6000 | Ra75 | >90 | |
10W | 300 | 30~35 | 900 | 6000 | Ra75 | >90 | |
15W | 750 | 18~21 | 1500 | 6000 | Ra75 | >90 | |
20W | 600 | 30~35 | 1800 | 6000 | Ra75 | >90 | |
30W | 750 | 36~42 | 3200 | 6000 | Ra75 | >90 |
Type | Current(mA) | Voltage(V) | Flux(lm) | CCT | CRI | Lamp Luninou Efficeiency(lm/w) |
3528 | 20 | 3.0~3.4 | 7~9 | 6000 | 80 | 130 |
3014 | 30 | 3.0~3.4 | 9~11 | 6000 | 80 | 130 |
2835 | 40 | 3.0~3.4 | 14~17 | 6000 | 80 | 140 |
5050 | 60 | 3.0~3.4 | 18~22 | 6000 | 80 | 130 |
