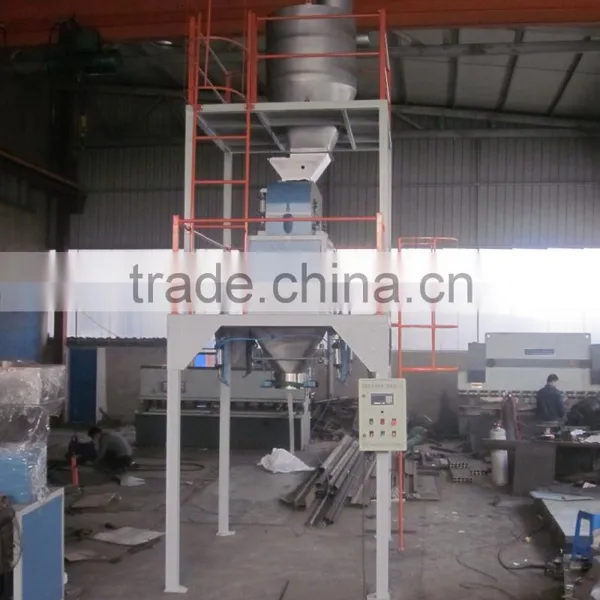

cold mix asphalt bagging weight machine 25kg
automatic fill weigh system
adjustable weight high accuracy
CE&ISO9001
I. Application
This machine is especially designed for packing 0.5-50kg powder of bad mobility, such as feed, fertilizers, rubber powder, PE powder, etc. into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
Our LCS-LX2 Dual Screw Weight packing machine is especially suitable for the manual filling of small production quantities. Packing machines with low production outputs do not normally require fully automatic packing systems. Even so they still demand precise filling of their products.
II. Working Principle
First, the bag need be applied manually to the filling spout and the filling process is started by a push-button.Your material will firstly go to the hopper and then be filled into the bags via the screw feeding parts. The filling flow is controlled by the frequency-change screw’s (auger’s) rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.
III. Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process
IV. Feature
Your benefits due to our experience:
u Clean bag filling
Due to product-specially chosen filling spout with all-side clamping jaws
u Space saving
Due to compact machine design
u Cost saving
Due to stable operation and low maintenance costs
u Easy handling
Due to easy and intuitive operational menu with “weight input” “weight display” “time display”
Due to clear operator guidance, easy cleaning and maintenance
u High weight accuracy: ±0.2%FS
Due to coarse and fine flow filling controlled by one frequency-change screw’s (auger’s) rotating speed
Due to the use of the Canadian General Measure or METTLER TOLEDO weighing controller and OMISEO (USA) load cell sensors
u Good product protection
Due to project-specially selected bag closure, e.g. sewing, welding or hot-melt sealing
And the Optional device:
Dust removal device. The working environment will be more hygienic if the dust removal device is added.
V. Technical parameters
Technical Parameter:
Model |
LCS |
LCS-Y |
LCS-Y2 |
Weighing Range |
1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs |
||
Precisions |
±0.2%FS |
||
Packing Capacity |
150-200bag/hour |
250-300bag/hour |
480-600bag/hour |
Power supply |
220V/380V, 50HZ, 1P/3P ( Customized) |
||
Power (KW) |
3.2 |
4 |
6.6 |
Dimension (LxWxH)mm |
3000x1050x2800 |
3000x1050x3400 |
4000x2200x4570 |
The size can be customized according to your site. | |||
Weight |
700kg |
800kg |
1600kg |
Pictures |
Click to see more |
Click to see more |
Click to see more |
To see more about our machine video on Youtube:
/channel/UCg94kU3IB6c_co4waj6xb5A
We always aim to best serve our clients’ needs. So we promise the following clauses on condition of establishing business relationship with you.
1) The machine shall be guaranteed by the seller against poor materials, poor performance and poor workmanship for a period of one year from the date of commissioning. During this guarantee period, the seller will provide the buyer with free maintenance and free spare parts that caused by the machine’s quality upon receipt of advice.
2) The seller will supply repair service for three years on condition that the buyer takes on all costs of the broken parts.
3) The seller will supply the buyer the guide service on the operation of the machine.
4) The seller will respond within 2 hours if the machine goes wrong in production.
5) If required, the seller will dispatch technician to buyer’s country for installation guide, commissioning & adjusting the machine and training the workers on condition that the buyer affords all the cost from China to the buyer’s company including food, accommodation, transportation, etc. and extra USD90.0 per day per person for the service.
