One Stop Service for CNG Gas Station

The skid-mounted hydraulic pressurized unit is consist of four cabins of hydraulic pressure cabin, control cabin, gas filling cabin and pipeline connection cabin, which is constituted of systems such as skid body, dynamical system, hydraulic pressuring system, pneumatic control system, auto control system and vehicle -mounted gas dispensers. The CNG transportation semi-trailer main consists of eight large volume steel gas storage cylinders.

	Total water volume	18M³
	Filling medium volume	4540Nm³
	Working pressure	20Mpa
	Overall dimension	12960X2496X3000MM
	Gross mass of entire semi-trailer	35235Kg
	Working temperature	-30~+60ºC

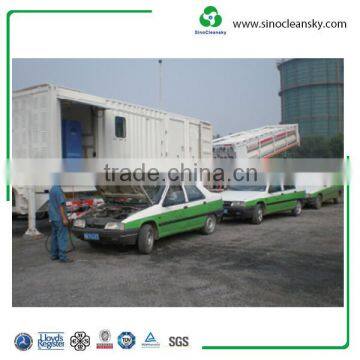

Skid-mounted hydraulic CNG filling station is the patented products of company. Its characteristic is putting all functional parts of hydraulic CNG filling station to integrate on lorry. System integration is high degree, and mobility strong. You can move a location of needing to fill gas quickly as according with the premise of city, transportation and the fire safety requirement.

CNG Hydraulic Daughter Station

Integrating perfectly the innovation of hydraulic technology and CNG daughter station technical processing, SinoCleansky has developed the CNG hydraulic filling daughter station. The products have advantages of low energy consumption, small area covering, steady and reliable operation.

Main characteristics:

•Lower operating costs, power-saving and easy maintenance.

•Gas utilization ratio of CNG Trailer≥95%.

•Quick installation: all equipments are skid-mounted, the construction, installation and commissioning could be completed within 72 hours.

•Constant gas-filling pressure: during the process of gas-filling, the filling pressure keeps 20Mpa all the time.

•Reasonable and advanced design, easy operation, which could realize unmanned operation..

•Fit for combined construction of oil &gas filling stations, small floor space, conforming to latest codes of filling station construction.

The latest skid-mounted hydraulic CNG unit is composed of two parts, CNG transportation semi- trailer and skid-mounted hydraulic pressurized unit.

Characteristics of Skid-mounted hydraulic CNG filling station

• Rapid gas-filling: the skid-mounted hydraulic CNG filling unite could fill in NGV(natural gas vehicle), conveniently and rapidly. After connecting the trailer and the mobile hydraulic pressurizing case with high-pressure pipe, the equipment could fill gas uninterrupted after switch on the power.

• Higher integration: At appropriate area, the entire set could be put into operation quickly.

• Higher automation: Simple operation, safe gas-filling process, stable operation, no manual interference is needed.

• Mobility: It takes small area and could be set up where the traffic or fire protection regulations allow. It could not only be fixed at public traffic stations, factories or mines, but also follow the fleets to fill gas. After filling, it can move along with the trailer, no need to construct filling station. Provide gas to it.
