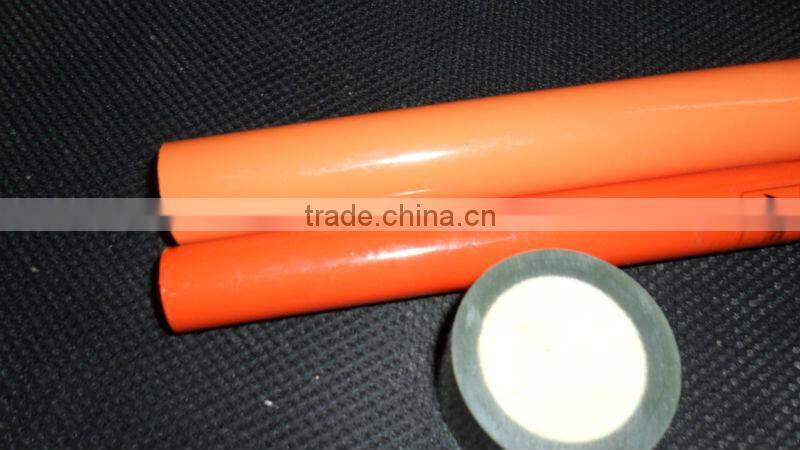

Help CenterFiberglass Pole Telescoping Stick
Related Products
1.Applied Standard: IEC60855.
2.Voltage: Up to 550kV.
3.Length: up to 13M.
4.Max stage: 10 stages.
5.Color: safety yellow , orange ,green or customer required color.
6.Locking position: Any length or every stage.

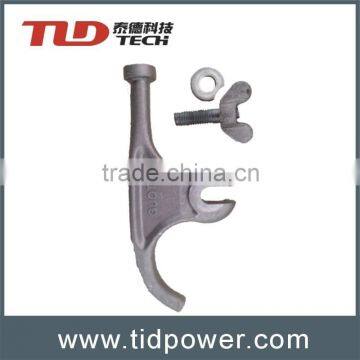

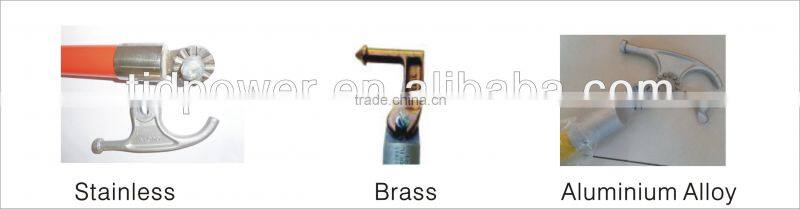

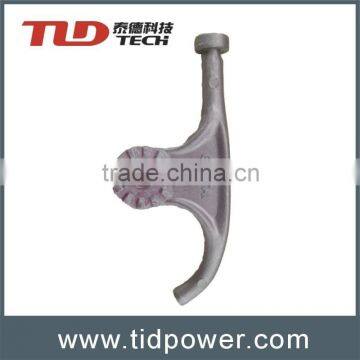

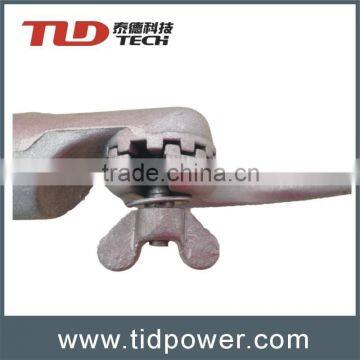

7.Univeral head material : Stainless Steel, Aluminium Alloy,or Brass.

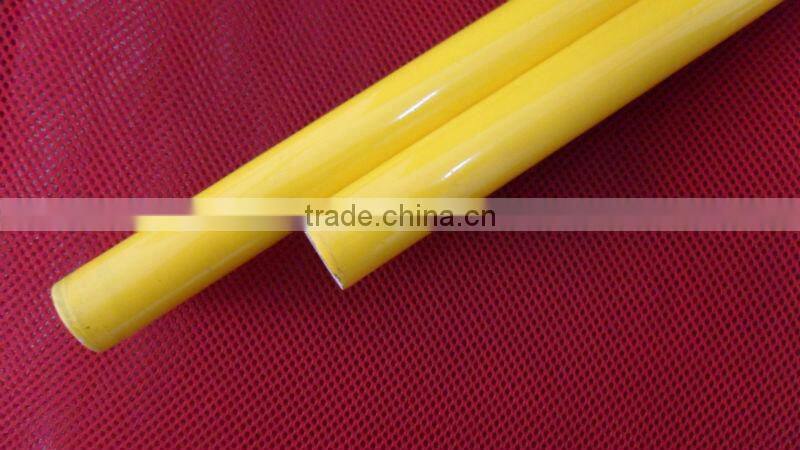

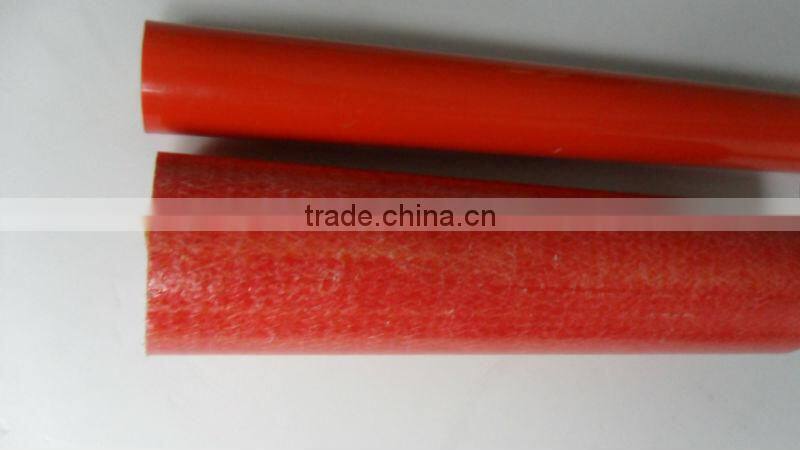

8.Insulation body part material: Epoxy FRP tube with foam filled .

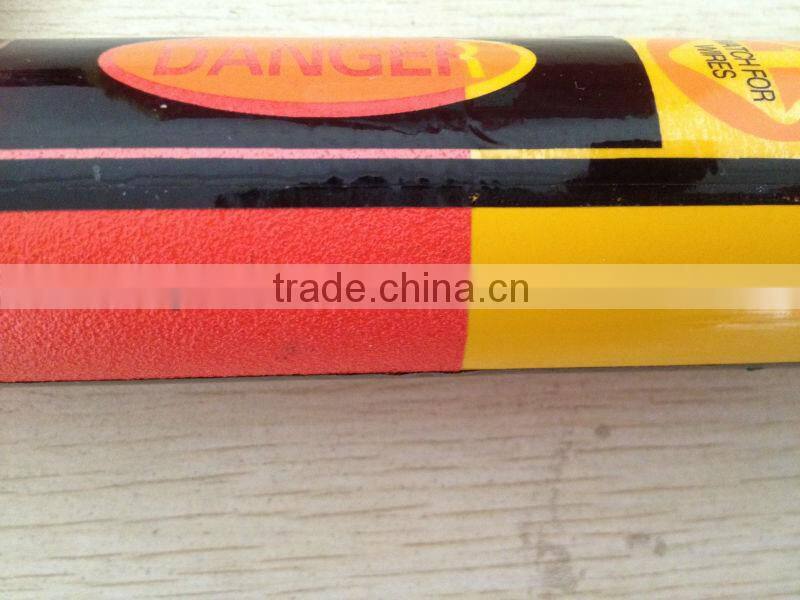

9.Holding par material t: anti-slip treated painting.

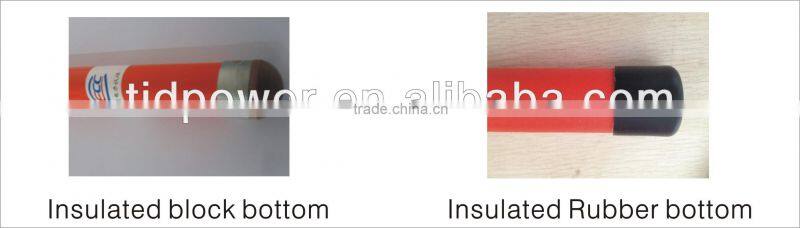

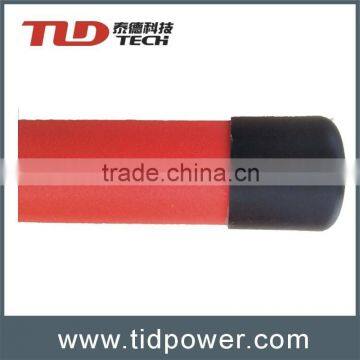

10.Bottom part material : insulated black rubber or FRP block with anti-mouisture design
.

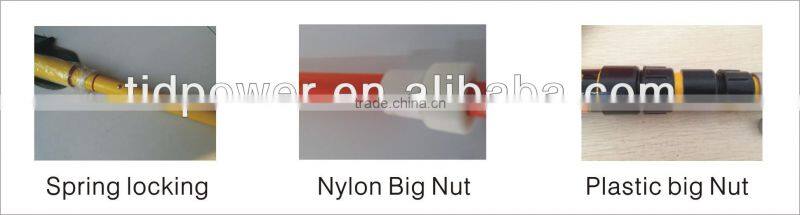

11.Locking part material : White Nylon, Black plastic or locking using FRP block by big and small end.

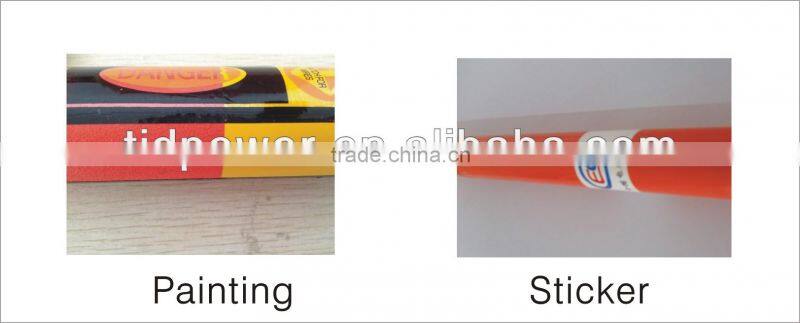

12.Marking: plastic sticker,print or customer's method.
13.Producing process:

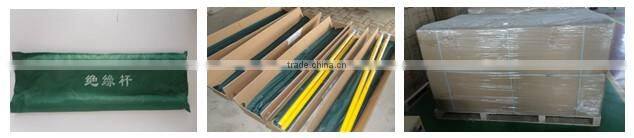

14. Packing: Anti-moisture nylon bag + Carton box + wooden case
15.Delivery way: by air, sea or couier.
16.Nearest seaport: Qingdao port or Shanghai port.
17.Delivery term:EXW, FOB ,CFR or CIF.
18.Min Order:10 pcs.
19.Delivery time: 2 week to 3 month depends on the order quantity.
20. Regular Dimension form:

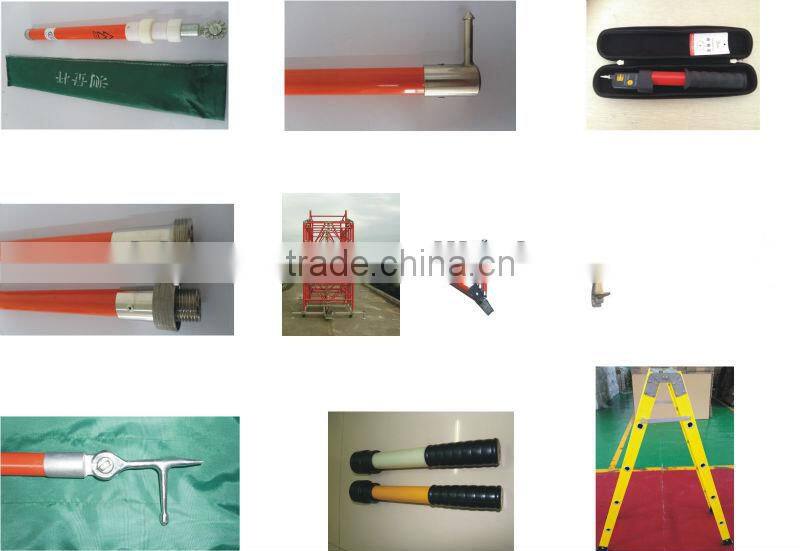

22.Relative products:
23.Our main market:

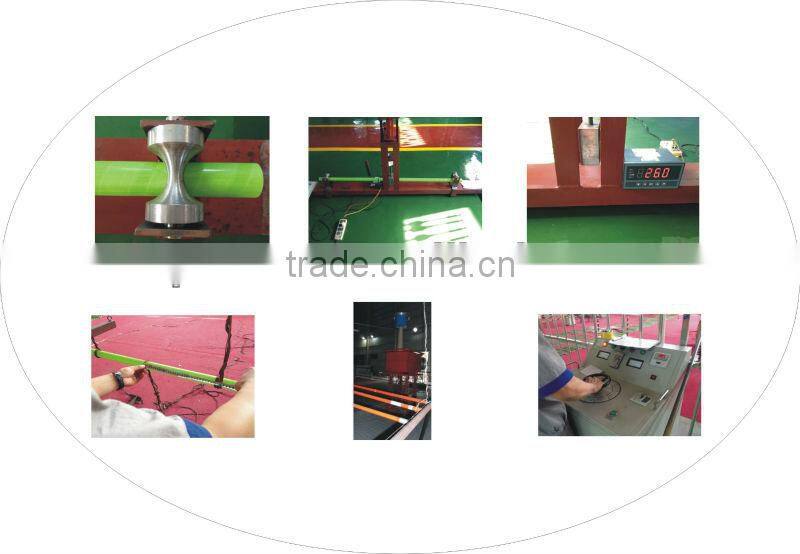

24. Testing:
25.Products application:
26.Dimension:
Fiberglass Hot Switch Sticks — One Section | |||||||||||
No. |
Catalogue No. |
Dimension |
Weight |
||||||||
in. X ft. |
mm X m |
lbs. |
kg |
||||||||
1 |
ANSS001 |
1.25 X 4 |
31.7 X 1.2 |
2.1 |
1.0 |
||||||
2 |
ANSS002 |
1.25 X 6 |
31.7 X 1.8 |
2.9 |
1.3 |
||||||
3 |
ANSS003 |
1.25 X 8 |
31.7 X 2.4 |
3.6 |
1.6 |
||||||
4 |
ANSS004 |
1.25 X 10 |
31.7 X 3.0 |
4.4 |
2.0 |
||||||
5 |
ANSS005 |
1.25 X 12 |
31.7 X 3.6 |
5.1 |
2.3 |
||||||
6 |
ANSS006 |
1.25 X 14 |
31.7 X 4.3 |
5.9 |
2.7 |
||||||
7 |
ANSS007 |
1.5 X 8 |
38.1 X 2.4 |
5.0 |
2.3 |
||||||
8 |
ANSS008 |
1.5 X 10 |
38.1 X 3.0 |
6.0 |
2.7 |
||||||
9 |
ANSS009 |
1.5 X 12 |
38.1 X 3.6 |
7.0 |
3.2 |
||||||
10 |
ANSS010 |
1.5 X 14 |
38.1 X 4.3 |
8.1 |
3.7 |
||||||
11 |
ANSS011 |
1.5 X 16 |
38.1 X 4.9 |
9.1 |
4.1 |
||||||
12 |
ANSS012 |
1.5 X 18 |
38.1 X 5.5 |
10.2 |
4.6 |
||||||
13 |
ANSS013 |
1.5 X 20 |
38.1 X 6.0 |
11.2 |
5.1 |
||||||
Fiberglass Hot Switch Sticks — two Sections | |||||||||||
No. |
Catalogue No. |
Top |
Bottom |
Weight |
|||||||
in. X ft. |
mm X m |
in. X ft. |
mm X m |
lbs. |
kg |
||||||
14 |
ANSS014 |
1.25 X 4 |
31.7 X 1.2 |
1.25 X 4 |
31.7 X 1.2 |
3.8 |
1.7 |
||||
15 |
ANSS015 |
1.25 X 5 |
31.7 X 1.5 |
1.25 X 5 |
31.7 X 1.5 |
4.6 |
2.1 |
||||
16 |
ANSS016 |
1.25 X 6 |
31.7 X 1.8 |
1.25 X 6 |
31.7 X 1.8 |
5.3 |
2.4 |
||||
17 |
ANSS017 |
1.25 X 7 |
31.7 X 2.1 |
1.25 X 7 |
31.7 X 2.1 |
6.1 |
2.7 |
||||
18 |
ANSS018 |
1.25 X 6 |
31.7 x 1.8 |
1.5 X 8 |
38.1 X 2.4 |
7.8 |
3.5 |
||||
19 |
ANSS019 |
1.25 X 8 |
31.7 X 2.4 |
1.5 X 8 |
38.1 X 2.4 |
8.0 |
3.6 |
||||
20 |
ANSS020 |
1.25 x 8 |
31.7 X 2.4 |
1.5 X 10 |
38.1 x 3 |
9.5 |
4.3 |
||||
21 |
ANSS021 |
1.25 X 10 |
31.7 X 3 |
1.5 X 10 |
38.1 X 3 |
10.3 |
4.6 |
||||
Fiberglass Hot Switch Sticks — three Sections | |||||||||||
No. |
Catalogue No. |
Top |
Middle & Bottom |
Weight |
|||||||
in. X ft. |
mm X m |
in. X ft. |
mm X m |
lbs. |
kg |
||||||
22 |
ANSS022 |
1.25 X 4 |
31.7 X 1.2 |
1.5 X 4 |
38.1 X 1.2 |
7.6 |
3.4 |
||||
23 |
ANSS023 |
1.25 X 5 |
31.7 X 1.5 |
1.5 X 5 |
38.1 x 1.5 |
9.0 |
4.1 |
||||
24 |
ANSS024 |
1.25 X 6 |
31.7 X 1.8 |
1.5 X 6 |
38.1 x 1.8 |
10.4 |
4.7 |
||||
25 |
ANSS025 |
1.25 X 8 |
31.7 X 2.4) |
1.5 X 6 |
38.1 X 1.8 |
11.1 |
5.0 |
||||
27.Advantage of our products:
1.Anti-moisture. Foam filled tube and ventilated bottom design.
2.Anit-slip . Holding part is roughness treated.
3.Convenience and flexible locking system.
4.Absorbing and anti-friction surface.
5.100% electrical performance tested.
6.Offer special design.
7.Most Attractive price.
Why not call me for more information immediately? 0086 -135 7273 5900
