Our telescoping hot switch sticks have maximum convenience for the lineman because they permit him to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.The sticks is as short as can easy carried on most trouble trucks..The springloaded plastic buttons that keep the extended tool sections securely locked in position. As each section is extended and twisted slightly, the buttons pop into place, allowing working to be done with complete control and confidence
Properties: a. High stiffness to weight ratio,b. moisture and corrosion Resistant,c. excellent electrical and mechanical
d. 100% electrically proof test(100kV/12” (305mm) for 5 minutes without detectable)
1.Applied standard: IEC60855 and IEC 60235
2.Color: yellow,orange,and costomized color.
3.Voltage: from 11kV ---500kV.
4.Length: from 1.5M-12M.

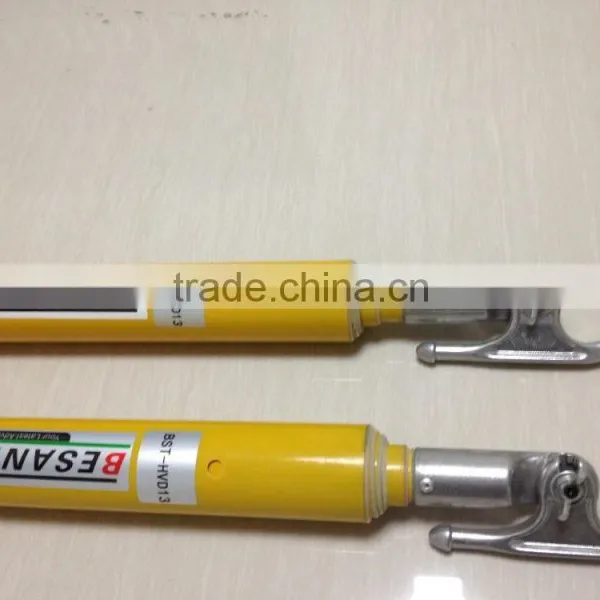

5.Head fitting: we offer auliminium ,copper,stainless material fitting.
We offer univeral head ,cutout prong and disconnector head.

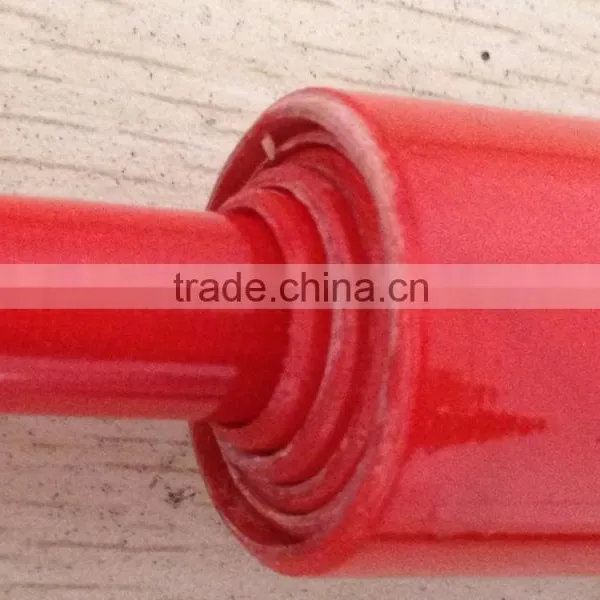

6.Joint part: Sring botton or tip lock model.
No. |
Retracted Length in. (mm) |
BaseDia. in. (mm) |
Lengths at which stick will lock ft. (m) |
Weight lbs. (kg) |
Standard Duty | ||||
4001 |
63.5 (1613) |
2.75 (70) |
17, 21.5, 26, 30, 35 (ft)/5.2, 6.5, 7.9, 9.1, 10.7(m) |
10.5 (4.8) |
4002 |
62.25 (1581) |
2.5 (64) |
17, 21.5, 26, 30 (ft)/5.2, 6.5, 7.9, 9.1 (m) |
8.8 (4) |
4003 |
60.5 (1537) |
2.25 (57) |
17, 21, 25.5 (ft) 5.2, 6.4, 7.8 (m) |
10.5 (4.8) |
4004 |
58.5 (1486) |
2 (51) |
17, 20 (ft) 5.2, 6 (m) |
5.5 (2.5) |
4005 |
56.75 (1441) |
1.75 (44) |
12.5, 16 (ft) 3.8, 4.9 (m) |
4.3 (2) |
Heavy Duty | ||||
4006 |
63.5 (1613) |
2.75 (70) |
13, 17, 21.5, 26, 30 (ft)/4, 5.2, 6.5, 7.9, 9.1 (m) |
9.8 (4.4) |
4007 |
62.25 (1581) |
2.5 (64) |
13, 17, 21.5, 26 (ft) /4, 5.2, 6.5, 7.9 (m) |
8 (3.5) |
4008 |
60.5 (1537) |
2.25 (57) |
13, 17, 21.5 (ft) 4, 5.2, 6.5 (m) |
6.2 (2.8) |
4009 |
58.5 (1486) |
2 (51) |
9, 13, 17 (ft) 2.7, 4, 5.2 (m) |
4.8 (2.2) |
Tip Lock Models | ||||
4010 |
63.5 (1613) |
2.75 (70) |
17, 21.5, 26, 30, 35 (ft)/5.2, 6.5, 7.9, 9.1, 10.7(m) |
10.5 (4.8) |
4011 |
62.25 (1581) |
2.5 (64) |
17, 21.5, 26, 30 (ft)/5.2, 6.5, 7.9, 9.1 (m) |
8.8 (4) |
4012 |
60.5 (1537) |
2.25 (57) |
17, 21, 25.5 (ft) 5.2, 6.4, 7.8 (m) |
10.5 (4.8) |
4013 |
58.5 (1486) |
2 (51) |
17, 20 (ft) 5.2, 6 (m) |
5.5 (2.5) |
4014 |
56.75 (1441) |
1.75 (44) |
12.5, 16 (ft) 3.8, 4.9 (m) |
4.3 (2) |
4015 |
5.5 ft. (1.7m) vinyl coated nylon storage bag |
2.5 (1.2) |
||

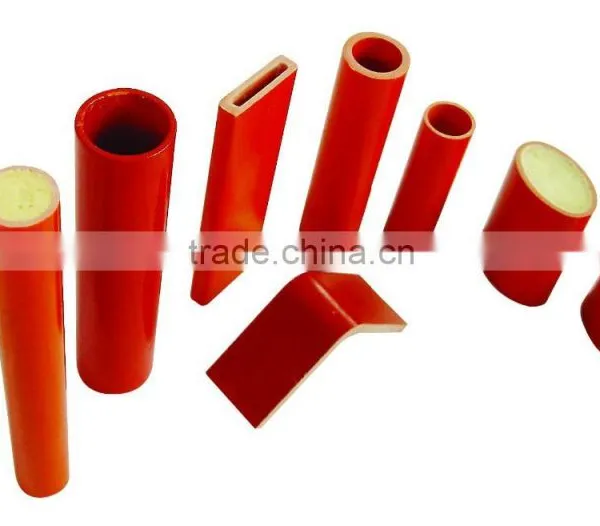

No. |
Tpye |
D(mm) |
d(mm) |
Thickness(mm) |
Weight(g/m) |
Color |
L (mm) |
1 |
TFT25/22 |
25 |
18 |
3.5 |
538 |
Red Orange or Bright Yellow |
According to customer requirment |
2 |
TFT28/24 |
28 |
24 |
2.0 |
468 |
||
3 |
THT31.75/24 |
31.75 |
24 |
3.88 |
777 |
||
4 |
THT32/27 |
32 |
27 |
2.5 |
630 |
||
5 |
THT32/24 |
32 |
24 |
4.0 |
860 |
||
6 |
THT36/27 |
36 |
27 |
4.5 |
1045 |
||
7 |
THT38.1/30 |
38.1 |
30 |
4.05 |
1000 |
||
8 |
THT40/32 |
40 |
32 |
4.0 |
1104 |
||
9 |
THT44/32 |
44 |
32 |
6.0 |
1304 |
||
13 |
THT50/43 |
50 |
43 |
3.5 |
1304 |
||
14 |
THT50/38 |
50 |
38 |
6.0 |
2058 |
||
15 |
THT60/51 |
60 |
51 |
4.5 |
2256 |
||
16 |
THT60/48 |
60 |
48 |
6.0 |
2665 |
||
17 |
THT70/61 |
70 |
61 |
4.5 |
2560 |
||
18 |
THT70/54 |
70 |
54 |
8.0 |
3400 |
1. Economic Packing desgin which will save your transportation cost.
2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect the goods and avoid any trouble when you pick up the goods from the local customs.

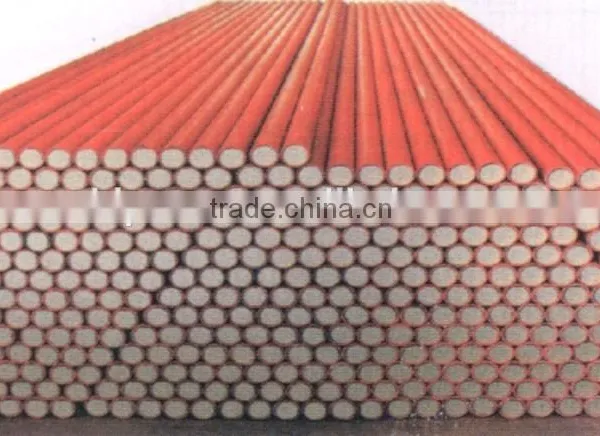

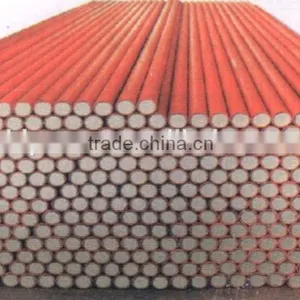

1.We use weaving pultrusion producting technology which increased 1.35 times bending strength of the fiberglass tube or stick.
2.We use foam filled producing technology which make sure the tube avoid the moisture from the air.
3.We use car surface painting technology which make sure the smooth and attractive surface of the stick.
4.We do 100% power frequency test and delection test which make sure the stable quality.
5.We offer the customized design.
