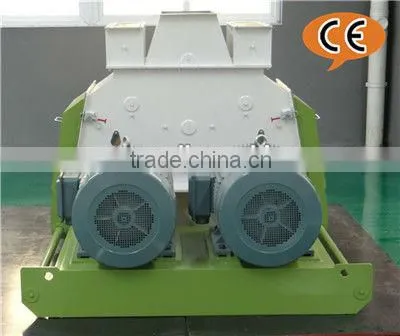

YHMS Double Rotors Hammer Mill Grinder

YHMS Double Rotors Hammer Mill Grinder thumbnail-1
YHMS Double Rotors Hammer Mill Grinder photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YONGLI
Contact Supplier Request Quote Chat Now
Jiangsu Yongli Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name YONGLI
Model Number YHMS56*36
Type Other, Hammer Mill
Voltage 380/400/415V
Power(W) 22*2/30*2
Certification CE & ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Used in micro grinding of kinds of rice straw, wheat straw etc
2. Be suitable for different raw mate

YHMS Double Rotors Hammer Mill Grinder





(Supplier:Jiangsu Yongli Machinery Co.,Ltd)





Features



1. Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.

2.The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.

3.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, the rotor are checked by dynamic balance, and can work forward and reverse, the hammers are arranged symmetrically.

4.The second grinding designed for grinding chamber, the output can increase 15% even particle size.

5.Two kinds of gap between beaters and screeners through changing position of beater are used for coarse and fine grinding.

6.The smaller gap between beater and screeners can be used for grinding coarse and fine materials.

7.Applicable for raw materials grinding such as corn, Chinese sorghum, wheat, crumbled cake-shaped material etc.

8. It can also grind the raw materials: woodchips, straw, EFB, rice husk, grass, sunflower, grass, woodchips, woodshaving, olive slag, paper etc.

Technical parameter:


Model

Diameter of rotor (mm)

Width of grinding chamber

(mm)

Main shaft speed (rpm)

Hammer linear speed

(m/s)

Hammer number(pc)

Power

(kw)

Capacity(t/h)

General smash

Fine grinding

Generally crushed

Fine crushed

YHMS56*36

560

350

2970

86

40

80

22*2/30*2

3-8

1.5-3

YHMS56*40

560

400

2970

86

48

96

30*2/37*2

5-10

2-5

YHMS56*50

560

500

2970

86

72

144

37*2/45*2

7-20

3-7

YHMS56*60

560

600

2970

86

88

176

45*2/55*2

10-25

4-9

YHMS56*75

560

750

2970

86

112

224

55*2/75*2

15-30

6-12

YHMS56*80

560

800

2970

86

120

240

55*2/75*2

18-36

7-15

YHMS56*95

560

950

2970

86

144

288

75*2/90*2

25-45

8-18

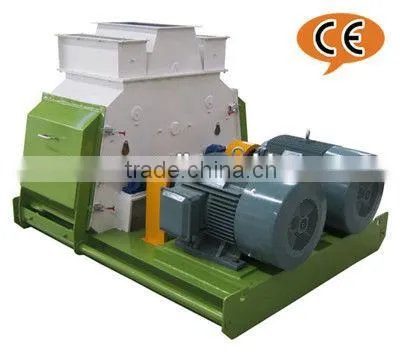

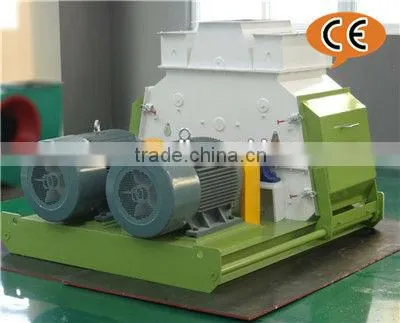

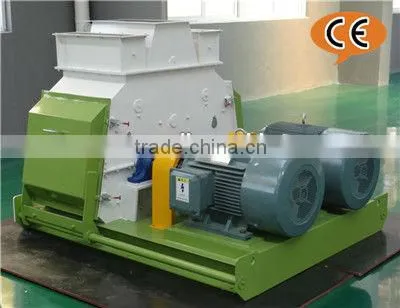

  Double Rotors Hammer Mill

YHMS Double Rotors Hammer Mill Grinder



YHMS Double Rotors Hammer Mill Grinder



YHMS Double Rotors Hammer Mill Grinder



YHMS Double Rotors Hammer Mill Grinder



YHMS Double Rotors Hammer Mill Grinder



About Our Company



Jiangsu Yongli Machinery Co.,Ltd. was founded in 2003 with an occupation of 22,000m2 located in the scenic Tianmu Lake, Liyang city, Jiangsu province, which is a national 5A tourist place.



We have spacious production workshop, comfortable and elegant office space, coupled with a strong team of workers.



Jiangsu Yongli Machinery Co., Ltd is with the strong capability of R&D,  process engineering design,



and training, and the company is always commit to  customers' satisfaction and success.



YHMS Double Rotors Hammer Mill Grinder

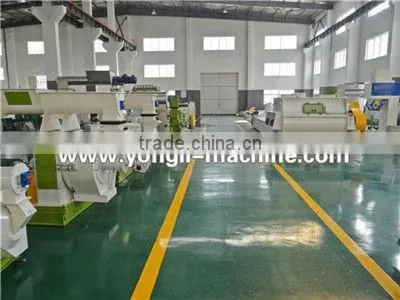

Warehouse







YHMS Double Rotors Hammer Mill Grinder

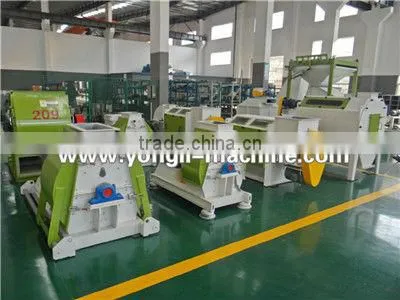

CNC



YHMS Double Rotors Hammer Mill Grinder

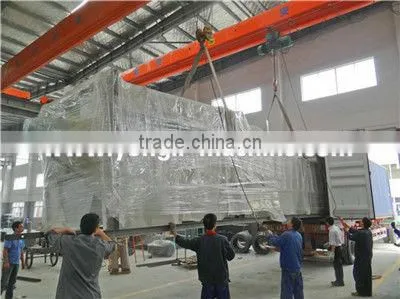

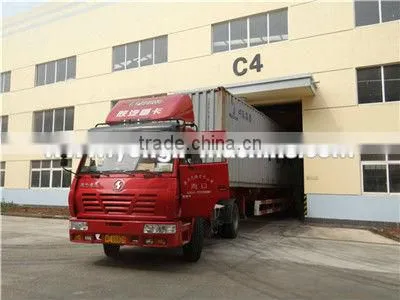

Delivery Management



When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.



YHMS Double Rotors Hammer Mill Grinder



YHMS Double Rotors Hammer Mill Grinder



About Service



We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.

Our professional service includes: Free training, Guidance Installation and Debugging.



Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)



If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.



Thank you for your reliance and support!



Certificates



1.The quality assurance system of Jiangsu Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.



2.The products of YONGLI are issued CE certification by European Union.



 YHMS Double Rotors Hammer Mill Grinder



FAQ:



1.Q:Are you a factory or trading company?
A:We are a factory and trading company.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us!





3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.  Our factory has gained CE, SGS authentication
