OEM Manufacturer for Home and Industrial Infrared Thermometer Hot Sale With Best Price TL-IR750

Infrared Digital Temperature Thermometer Laser Non-Contact IR Gun -50℃ to 750℃

Room Temperature & Data Recording Function

This Infrared Thermometers is used for measuring the temperature of an object service. It is ideal for safe, quick non contact measurement of various hot, cold and hard to reach object surfaces. With its compact design and room temperature reading it stands out from other meters on the market. Suitable for: hot water pipes, hot engine parts, cooking surfaces, hot tubes insulation, electrical connection, ballasts in electric lights, electric motors, bearings, wine coolers hot asphalt, swimming pools, fish tanks, heating air conditioning, etc.

Features:

l Laser on/off switch function

l LCD with white backlight and Bar graph display

l Celsius and Fahrenheit switchable

l High/Low temperature alarm setting

l Auto power off

l Data recording and data hold function

l Emissivity adjustable

l Room temperature measurement

l MAX/MIN/AVE/DIF reading record function

l Low battery indicator

Specifications:

Temperature range: -50 to 350/550/750oC

Accuracy: ±1.5% or ±1.5oC

Resolution: 0.1oC or 0.1F

Repeatability: 1% of reading or 1oC

Response time: 500mSec, 95% response

Spectral response: 8-14 um

Emissivity: 0.95 preset(adjustable)

Distance to spot size: 12 : 1

Operation temperature:0 to 50oC(32 to 122oF)

Operation humidity:10 to 90%RH

Storage temperature: -10 to 60oC(14 to 140oF)

Storage humidity:10 to 75%RH

Size:145*90*35mm

Weight:120g(included 9V battery)

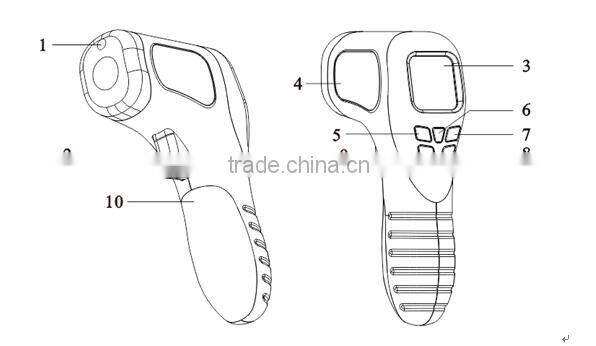

Product description:

1.Laser output

2.Measuring button

3.LCD display

4.Product label

5.Rec button

6.Mode button

7.Laser/Backlight button

8.Max/Min/Avg/Dif button(↑)

9.oC/oF button(↓)

10.Battery cover

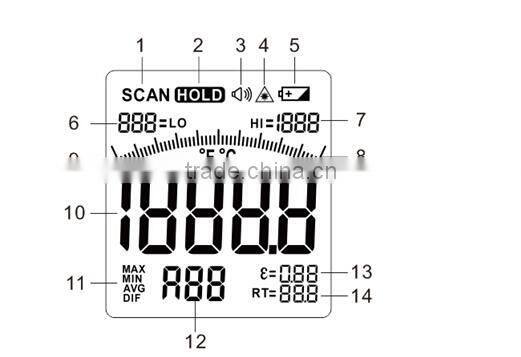

LCD display

1.Measuring indicator

2.HOLD symbol

3.Buzzer alarm symbol

4.Laser switch indicator

5.Low battery indicator

6.Low temperature limit alarm

7.High temperature limit alarm

8.Bargraph

9.Temperature units:oC,oF

10.Digtal readout

11.MaxMin/Avg/Dif reading mode incicator

12.Data recording display(Max 30 datas)

13.Emissivity(adjustable)

14.Room temperature measurement reading

Field of View

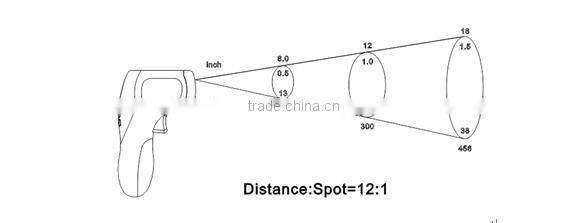

This infrared thermometer’s field of view is 12:1, meaning that if the meter is 12 inches from the target, the diameter of the object under test must be at least 1 inch. Other distances are shown below in the field of view diagram.

Emissivity adjustable

Under Scan mode:press oC/oF button(↓) and Max/Min/Avg button(↑) to adjust the emissivity

Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cove the surface to be measured with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or painted surface.

Emissivity Values

Set Includes:
• Meter
• Soft Case
• Manual

Customers can choose blister card or gift box .

Above MOQ,deliverty item FOBshenzhen or shanghai by sea/air, small quantity can delivery by DHL,UPS,Fedex...

The quantity of order more than 500pcs,we will provide OEM service free charge.

We can print customers'logo and any information on the products  and package.

As for the low price sample,we can provide it freely.but clients need bear the shipping charge.

Regarding the expensive sample,we will charge relative cost,and clients need bear the shipping cost.
