Home > Products > Solar Collector > hot transfer coating separated pressure solar water heater

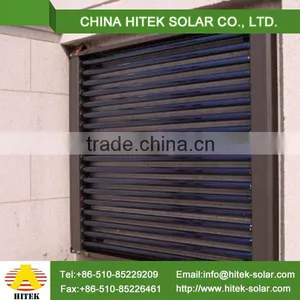

hot transfer coating separated pressure solar water heater
- 5000 Set / Sets per Month
- Shanghai China
- T/T
You May Like
-
plate laser welding process separated pressure collector
-
super white cloth grain toughened glass separate pressure solar water heater
-
high purity copper tube separated pressurized water heater
-
high density heat insulation cotton separate pressurized water heater
-
Solar thermal system split pressure collector
-
high power output split pressurized collector
Product Details
Place of Origin | Jiangsu, China | Brand Name | Hitek | |
Model Number | NSC-58/1800-10U | Type | U Pipe | |
Application | Water Heater | Pipe Material | Glass |
Product Description
hot transfer coating separated pressure solar water heater

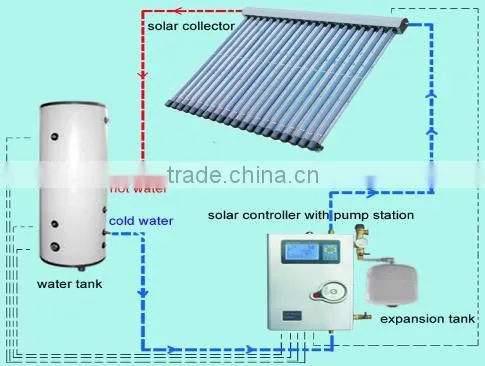

A Separated Solar Water Heating System include:
1. Solar Collector(s) NSC-58 series
2. Pressurized Water Tank
3. Expansion Tank
4. Pump Station
5. Solar Controller
6. Pipeline
7. Connector
8. Valve
DGV 58 U Pipe | ||||||
Absorber Coating | SS-ALNx/Cu | |||||
Absorption | ≥92% | |||||
Emission | ≤8% | |||||
Vacuum Tube Diameter (mm) | 58 | |||||
U Pipe | 8mm Copper Pipe | |||||
Vacuum Tube Number | 10 | 12 | 16 | 18 | 20 | |
Distance between Pipes(mm) | 80 | |||||
Glass Tube Material | Borosilicate Glass 3.3 | |||||
Thermal Expansion coefficient of Glass(/K) | (3.3-0.1)×10-6/K | |||||
Vacuum Grade (bar) | 10-6bar | |||||
Manifold | ||||||
Shell Material | Aluminum Alloy | |||||
Inlet and Outlet | 22mm | |||||
Limitation | ||||||
Stagnation Temperature (°C) | >200℃ | |||||
Freezing Resistance | >-20℃ | |||||
Hail Resistance | 25mm | |||||
Maximum Working Pressure(bar) | 6bar | |||||
Allowed Heat Transfer Medium | Water |
58-U Series Solar Collector
Model | NSC-58/1800-10U | NSC-58/1800-12U | NSC-58/1800-16U | NSC-58/1800-18U | NSC-58/1800-20U | |
Aperture Area(m²) | 1.268 | 1.528 | 2.047 | 2.306 | 2.562 | |
Absorber Area(m²) | 0.813 | 0.976 | 1.301 | 1.464 | 1.626 | |
Length(mm) | 2000 | 2000 | 2000 | 2000 | 2000 | |
Width (mm) | 835 | 985 | 1285 | 1435 | 1585 | |
Height (mm) | 135 | 135 | 135 | 135 | 135 | |
Material of Standard Frame | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
Weight(kg) | 34 | 39 | 49 | 54 | 59 | |
Sealed Material | EPDM | EPDM | EPDM | EPDM | EPDM |
Founded in 2001,Wuxi High-New Technology Industrial Development Co., Ltd(HITEK) is proud to be among the most innovative solar hot water companies in China.HITEK continued focus on research and development of state of the art solar hot water systems made us a leader in the solar industry at home and abroad.We are run by Wuxi District Government with registered capital of $30000000 and 150 employees.
In solar industry, HITEK is a pacemaker on metal glass vacuum tube.HITEK solar collector and the hot water system have obtained European Solar Keymark,American SRCC, and Australian Standards certificate.
HITEK is the only manufacturer who produces 70mm metal glass vacuum tube in the world, and we are China National Standards Committee member for this item.
The quality of our products has been recognized in several renowned solar hot water projects, such as Beijing 2008 Olympic Games, Expo 2010 Shanghai China and Guangzhou 2010 Asian Games.
Our commitment to quality improvement and research and development gives us access to the latest solar technology, ensuring the most value for your money when investing in our renewable energy system.90% of HITEK's products sell overseas, which are popular in 50 countries around the world.
HITEK strives to the doctrine "Excellent Products, Continuous Innovation, Thorough Service".HITEK has become the expert of solar energy solution and building integration from simply manufactuere.HITEK determines to be world-class professional provider on green energy solution, fulfilling " CREATION BEYOND YOUR IMAGINATION, NON-CARBON LEADING NATURE LIVING".
1. Five years warranty.
2. Excellent after-sale.
3. Sample and bulk orders are available.
4. Fast response within 12 hours and less.
5. OEM/ODM are welcome.
