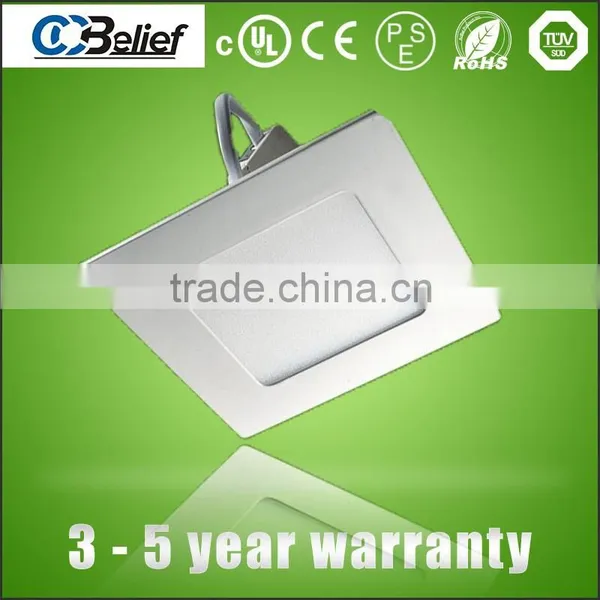

2015 hot sales 18W IP44 slim led panel light

18W IP44 led panel light

We believe:

The end consumers will determine your success or not.

We pursuit:

CCB :  Construct Consumers' Belief & Create Your Benefits!

We bear:

All cost for replacing our defective led panel light during warranty time.

We only do:

Free up more of your time to explore new opportunities and build prosperity.

 Are you fed up:

1-- endless receiving calls from clients saying led panel light does not work again?

2-- repeatly replacing drivers of led panel lights every 4 or 6 months again and again?

3-- complain from clients shadow occuring only 1 or 2 months after installation?

4-- complaining to supplier for every shipment: color difference even awefully in one lamp?

5-- company fame lower and lower every year because of quality problem?

6-- cost a lot of time on products after service?

7-- most of  earning profit paid on products after service?

Do you want:

1-- Clients saying : none of your lights doesn't work after 2 or 3 years installations?

2-- your clients recommend to his friends and reletives your company?

3-- every shipments are exactly same color even same with 2 years ago products?

4-- a good support from supplier?

5-- Your logo to be showing on your products even only 10pcs of products?

6-- every cent of your profit no need put on repiring previous products?

7--Company fame is getting well known year by year?

We would like offer any technical support to you whatever

you work with us or not!

Know how about led panel lights:

1-- Do you know why we still insist using 4mm & 6mm or even 8mm light panel, when possible your current supplier is already used 2mm 3mm light panel?

Answer: light panel is very important to reach a higher lumen output and make brightness even. More thick, more better. It's one of the reason of dark center in 600x600mm led panel light.

 2-- Do you know why some led panel lights is leaking lights from edge or corner, but our's don't?

Answer: We use 0.05mm precise machine and strict quality regulations processing aluminium and light panel, the space is very thin that light cannot come out. Other factories without strict quality regulations cannot reach same effect as us.

3-- Do you know why we use expensive laser light panel, not cheap silk print light panel?

Answer: Laser light panel efficiency is higher than silk print light panel. Most important is according to time passing, silk is volatilizing away bit by bit just as the lacquer on your doors, getting dim and dim, then the brightness will decay very fast. But laser light

panel as always it is. Not decay from material itself.

4-- why our light panel is better than others?

Answer: We only use 100% real 1st grade Mitsubishi PMMA to make light panel. Lower grade light  panel not 100% raw material or use material from Taiwan or mainland.

5-- For more know-how, pls directly contact us! Thanks!

Specifications:

18W IP44 led panel light
1--18W led panel light
2--1800Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL018P2-01/02/04

7-- Size: 225x225mm for retangle type; cut hole 200x200mm

               D225mm for round type, cut hole 200mm

15W IP44 led panel light
1--15W led panel light
2--1500Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL015P2-01/02/04

7-- Size: 200x200mm for retangle type; cut hole 180x180mm

               D200mm for round type, cut hole 180mm

12W IP44 led panel light
1--12W led panel light
2--1200Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL012P2-01/02/04

7-- Size: 175x175mm for retangle type; cut hole 160x160mm

               D175mm for round type, cut hole 160mm

9W IP44 led panel light
1--9W led panel light
2--900Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL009P2-01/02/04

7-- Size: 145x145mm for retangle type; cut hole 130x130mm

                D145mm for round type, cut hole 130mm

6W IP44 led panel light
1--6W led panel light
2--600Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL006P2-01/02/04

7-- Size: 120x120mm for retangle type; cut hole 105x105mm

             D120mm for round type, cut hole 105mm

4W IP44 led panel light
1--4W led panel light
2--400Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL004P2-01/02/04

7-- Size: 105x105mm for retangle type; cut hole 90x90mm

             D105mm for round type, cut hole 90mm

3W IP44 led panel light
1--3W led panel light
2--300Lm output
3--CE,ROHS,FCC
4--Warranty 3 years

5--CRI 82

6-- Model No.: CCB-SDL003P2-01/02/04

7-- Size: 90x90mm for retangle type; cut hole 75x75mm

             D90mm for round type, cut hole 75mm

no flicker 18w led panel lights Description

• 1800 Lm
• Input voltage: 90 to 277V AC
• Built-in constant current power supply
• Power factor: up to  95%
• Led light efficiency: above 96Lm/W.
• Beam angle: 100 degrees
• Working environment temperature: -30 to 55°C
• Brightness degradation: less than 1% per 3000hs
• Life span: 80,000 hours.
• No UV or IR radiation..
• CE FCC and RoHS certifications approved
• Energy saving and environment-friendly
• Remark: quantity of LED can design as per client requirement.
• Led panel lights are widely used in  office, school, station, public area, etc.
• Warranty for 3 - 5 years.

Our led panel light have full certificates

We follow the strict inspection processes to produce led panel light:

Why choose CCB led panel light not the other factories?

1-- from CCB led panel light aluminium side

We all know the HOT HEAT is the killer of a led lights.So how to lower down

the tempeture of the led is the main concern. CCB use 93% pure aluminium alloy

to transfer HEAT from led to the outside. Some other factories use bad design shell or  which make the heat very high. Do you really believe its lumen decay will be slow and it can reach 50,000 or 80,000hrs.

2--from led panel light led inside

CCB led panel light is designed by famous brand chip, and the top grade big chip series to reach a high brightness and high color rendering Index, also the high efficiency . All our chip and leds are with LM-79 and LM-80 test report. And the efficiency is up to 125Lm/W and 85Ra (±5) CRI. The other factory only 95Lm/W and color render index only 65Ra. Please check the following our chip and the other factories chips.

3-- from led panel lights led quantities:

CCB Led panel light is designed by more led quanities. So our led panel lights are with a higher

lumen output than others and more less energy assumption.

4-- From led panel lights driver design

CCB Led panel lights is designed by insulated power, high PFC, high efficiency, famous IC and electronics, fully pass CE and PSE and UL.  The others use cheap electronics and even non-insulated power which may cause risk of shocking human.

5-- From LED PANEL LIGHTS color tempeture range:

CCB led panel lights have a wide selection of color tempeture at 3000K, 4000K, 5500K, 6500K. Other factories only have 3000K and 6500K. And we make every shipment color tempeture exactly same. Not like others exists color difference even in one lamp.

6-- from PCB panels:

CCB Led panel light uses high TC aluminium pcb. The others factories use lower TC pcb or even they use Fiber pcb to make the led panel light. How do you think heat can be transfered away?

7-- From production aspects.

We all know that a good product is based on good design, good material and good inspection methods. CCB exactly follow ISO-9001:2008 regulations to produce the led lights. Before send out the goods we have at least 10 times test on different aspects. We are proud of our led lights and we are sure that you will love it also.

8-- From after service.

Except above all, the mostly important thing is that we are offering a credit after-sales service. We could speak loudly all around the World that for past 7 years we exactly follow what we promised: CCB bear all delivery cost during warranty time..

for detailed information, pls contact us.

About us

Company Introduction

Been established in 2005, DONGGUAN CCB LED TECHNOLOGY CO., LTD. becomes one of the best manufacturers of LED and LED related products in China. We are specialized in the R&D, designing of many kinds of LED products and only pay attention to hig quality product design and manufacturing. Our company covers 5000 square meters and has more than 100 staff members. Due to good quality and perfect after-sales service, CCB has got a high reputation among competitors. And we are located in the city of "World Factory" - Dongguan City. It takes only 1.5 hours' drive to Hong Kong Airport, Shenzhen Airport, or Guangzhou Airport. We warmly welcome your visit to our factory at any time.

Our products cover a wide range, such as T8 led tube, LED Wall Washer lights, led bulbs, led spot lights, led panel lights, led street light, etc. We are proud of our OEM business since we have a lot of professional engineers who have been in the field of LED for over 10 years. Highly trained operators can make sure our products are of 100% good quality.

We have a complete set of strict Quality Inspection System. QC staff members monitor the entire production processes to ensure our product quality meets your requirements, by using advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing, such as voltage withstand test, shock proof test and salt spray test. All our products comply with CE,FCC and RoHS standards. Some of our products passed UL and PSE certificates.

With the belief of "win-win cooperation", we are ready to serve you with full heart anytime and anywher

 Thanks very much for your time and welcome

your inquiry at any time.
