Help CenterEinbauleuchten Led
Related Products
Specifications
einbauleuchten led:1.Input voltage:AC90-277V
2. certification: CE,RoHS FCC
3.Lifespan:80,000hrs
4. warranty:3 years
einbauleuchten led :
einbauleuchten led 3 year warranty

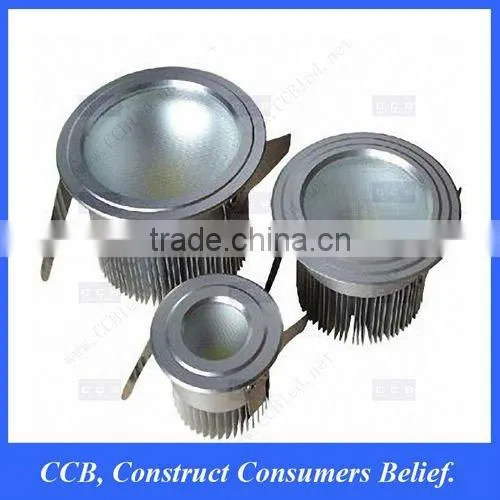

12w cree dimmable led downlight 1250Lm
1.AC90-277V input
2.CE,RoHS FCC certificates
3.Lifespan:80,000hrs
4.3 years warranty
einbauleuchten led Details:
| Model | CCB-DL01201-H-01 | ||||
| Desc | 12w cree dimmable led downlight |
||||
| Led Quantities | 12*1W | ||||
| Led | US CREE/OSRAM/Edison | ||||
| Illuminance | 120 - 130Lm/Led | ||||
| Input Power | 90 ~ 277Vac | ||||
| Led Driver | PFC>0.98, Power Efficiency > 0.88 | ||||
| Color Tempeture | 2800 - 7000K | ||||
| CRI | 75 - 85 | ||||
| Working Temp | -35 ~ 55 degree | ||||
| Working Humidity | 10% - 85% | ||||
| Storage Temp | -40 ~ 80 degree | ||||
| Beam Angle | 8/15/25/38/45/60/90/105 | ||||
| Life Span | >80,000hrs | ||||
| Fixture Size | φ140*66mm | ||||
| Instrallation Way | Recessed | ||||
| Drilling hole | 125mm | ||||
led einbauleuchten models:
| Model: | Power | Lumen Output | Drilling Hole |
| CCB-DL00301-H | 3W | 275 | 75mm |
| CCB-DL00501-H | 5W | 460 | 95mm |
| CCB-DL00601-H | 6W | 550 | 95mm |
| CCB-DL00701-H | 7W | 630 | 95mm |
| CCB-DL00901-H | 9W | 920 | 125mm |
| CCB-DL01201-H | 12W | 1150 | 125mm |
| CCB-DL01501-H | 15W | 1350 | 145mm |
1.3*1W; 3*2W; 3*3W; 5*1W; 5*2W; 6*1W; 7*1W; 9*1W; 12*1W; 1*5W; 1*10W,etc.
2. Dimmable type or non-dimmable led downlight.
3.Remote controlled led downlight
einbauleuchten led advantage:
1- With high quality series led we make color tempeture more even;
2- By cooperating with EURO/USA power company, we make
our driver more efficiency and long life;
3- With different test machines and processes we make the products
are of 0 defective rate to arrive at your hand;
4- With care & heart we handle them like BABIES;
5- With 8 years experience in foreign, we are sure to let you gain more;
6- With intensive online technical support, we will answer you question
within 4 hours;
einbauleuchten led main features:
1. High efficiency, save energy, suitable for down light Minimal maintenance cost
2. The light decay is very small (less than 1% after 2000hrs working hours)
3. Unique patented heat sinking design
4. CE and RoHS certified
5. Working temperature rising: less than 15°C
6. Led efficiency above 100Lm/W
7. Warranty for 5 years
About us:
We are the professional Led manufacturer in China and has 8 years
Experience in R&D produce many kinds of Led tube, led bulb,Led
downlight etc.We only pay attention to high quality led products.
All our products have passed CE,RoHs,FCC,PSE,UL certificates
and spread through USA,Canada,Germany,U.K.Japan,and Australia,etc.
Our test are from international certified lab:
Our einbauleuchten led Packing:
Our einbauleuchten led certificates:
Thanks very much for your time.Any question, pls feel free to contact us.
best regards
